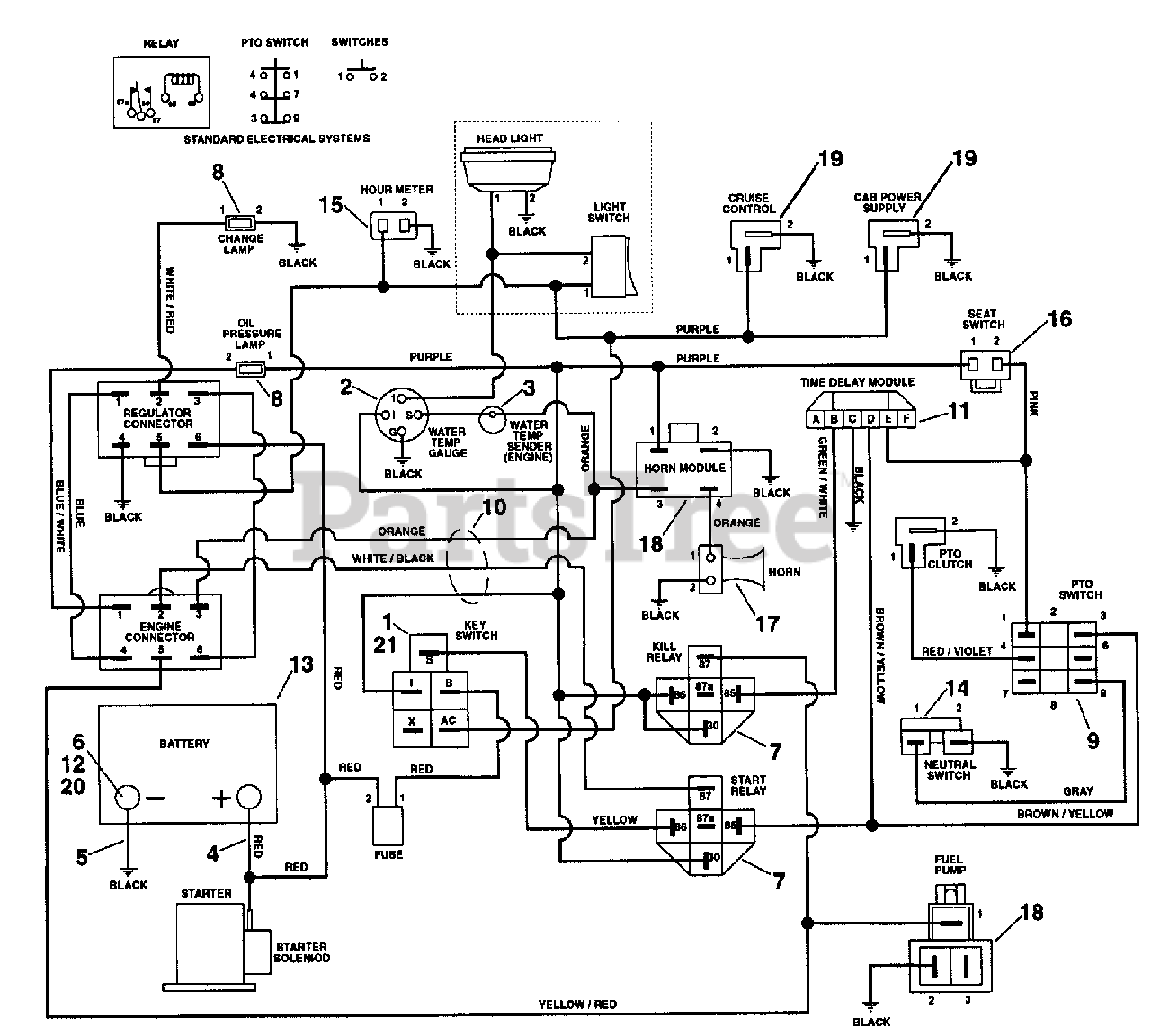

990004 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) Electrical System 2 Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kawasaki

Electrical System 2 Parts Diagram

  • Title

1

Gravely 09057300

SWITCH, IGNITION (GAS)

Note: (Gas)

$

$

Not available

2

Gravely 09043800

GAUGE, TEMPERATURE

$

$

Not available

3

Gravely 09058800

TEMPERATURE SENDER

$116.99

$

Usually ships in 4-12 days

0

4

Gravely 08987000

CBL,BATTERY TO SOLENOID

$51.99

$

Usually ships in 4-12 days

0

5

Gravely 09222700

CBL, NEGATIVE BATT 35.0"LG
(Superseded to 03288200)

$27.99

$

Usually ships in 4-12 days

0

6

Gravely 07523100

CVR,BATTERY TERMINAL

$

$

Not available

7

Gravely 03042800

RELAY
(Superseded to 00432101)

$27.99

$

In Stock, Qty 20+

0

8

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$8.49

$

In Stock, Qty 7

0

9

Gravely 00522100

SWITCH, CLUTCH WITH RETAINER
(Superseded to 01545600)

$28.99

$

In Stock, Qty 20+

0

10

Gravely 09057700

WIRE HARNESS-KAWASAKI

$

$

Not available

11

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$76.99

$

In Stock, only 2 left!

0

12

Gravely 07016800

NUT-SPEED .25-20

$

$

Not available

13

Gravely 78509300

12 VOLT BATTERY (8 HP)

Note: (8 HP)

$

$

Not available

14

Gravely 02913100

SWITCH-NEUTRAL START N.O.

$48.99

$

In Stock, only 2 left!

0

15

Gravely 03492700

HOUR METER
(Superseded to 09497400)

$26.99

$

In Stock, Qty 20+

0

16

Gravely 03654200

SWITCH- SEAT

$15.99

$

In Stock, Qty 5

0

17

Gravely 09059000

HORN

$

$

Not available

18

Gravely 09059100

HIGH TEMP WARNING MODULE

$

$

Not available

19

Gravely 03657000

COVER - SWITCH
(Superseded to 00539300)

$10.99

$

Usually ships in 4-12 days

0

20

Gravely 03384700

BOOT, INSULATOR

$

$

Not available
