990004 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) Electrical System 2 Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kawasaki

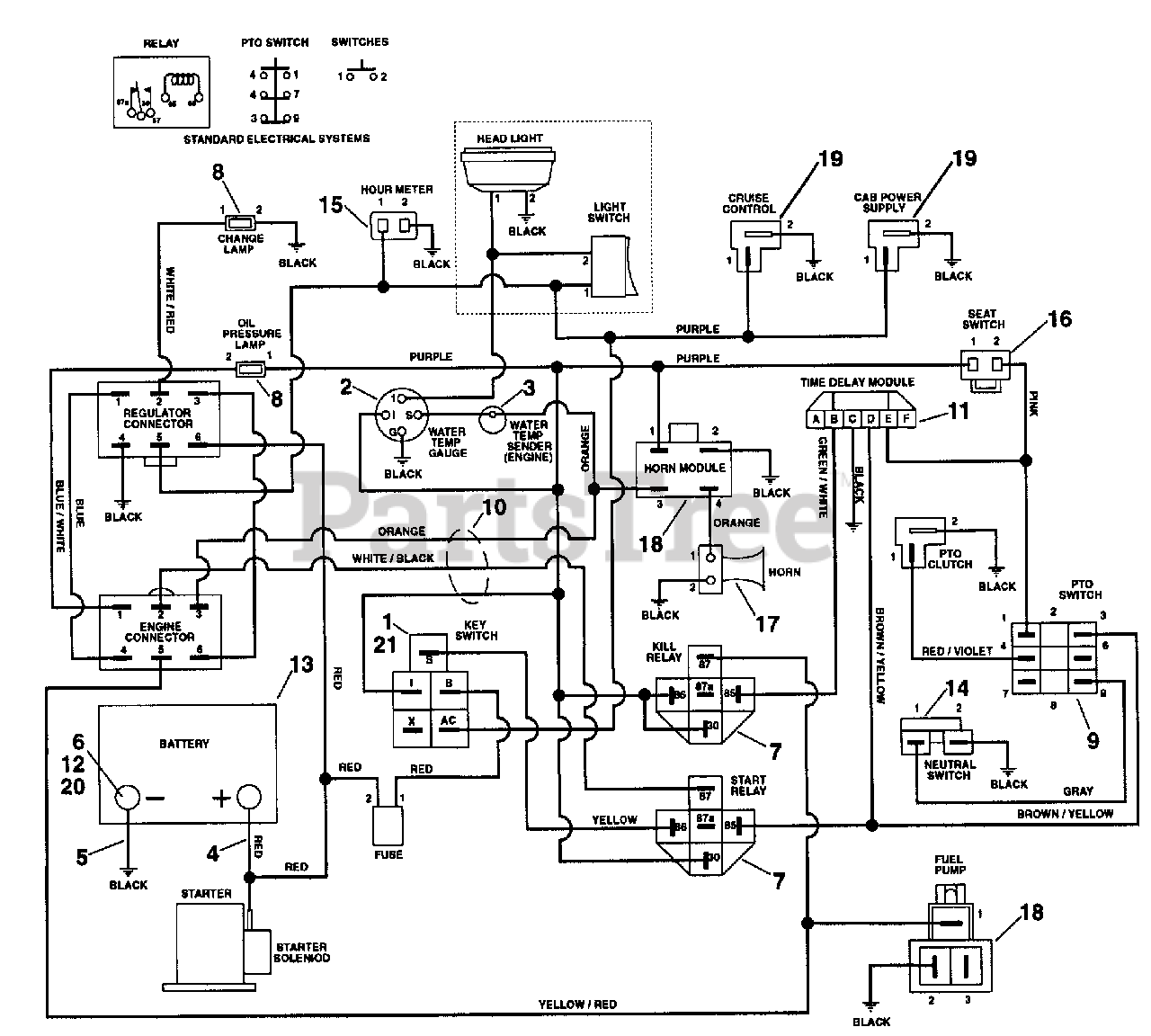

Electrical System 2 Parts Diagram

  • Title

1

Gravely 09057300

Switch,Ignition(Gas)

Note: (Gas)

$

$

Not available

2

Gravely 09043800

Gauge,Temperature

$

$

Not available

3

Gravely 09058800

Temperature Sender

$106.99

$

Usually ships in 4-12 days

0

4

Gravely 08987000

Cable,Battery to Solenoid

$51.99

$

In Stock, only 1 left!

0

5

Gravely 09222700

Cable,Negative Battery 35.0" Lg
(Superseded to 03288200)

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 07523100

Cover,Battery Terminal

$

$

Not available

7

Gravely 03042800

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

8

Gravely 08841200

Light,Indicator
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 00522100

Switch,Clutch with Retainer Ring
(Superseded to 01545600)

$23.99

$

In Stock, Qty 18

0

10

Gravely 09057700

Wire Harness - Kawasaki

$

$

Not available

11

Gravely 09044200

Module, Interlock, Delay, 1801

$71.99

$

In Stock, only 1 left!

0

12

Gravely 07016800

Nut-Speed .25-20

$

$

Not available

13

Gravely 78509300

12 Volt Battery(8 HP)

Note: (8 HP)

$

$

Not available

14

Gravely 02913100

Switch-NeutralStart N.O.

$45.99

$

In Stock, only 1 left!

0

15

Gravely 03492700

Hour Meter
(Superseded to 09497400)

$22.99

$

In Stock, only 1 left!

0

16

Gravely 03654200

Switch-Seat

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 09059000

Horn

$

$

Not available

18

Gravely 09059100

High Temp. Warning Module

$

$

Not available

19

Gravely 03657000

Cover-Switch
(Superseded to 00539300)

$9.99

$

Usually ships in 4-12 days

0

20

Gravely 03384700

Boot, Insulator

$

$

Not available
