990004 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) Engine and Exhaust Kawasaki Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kawasaki

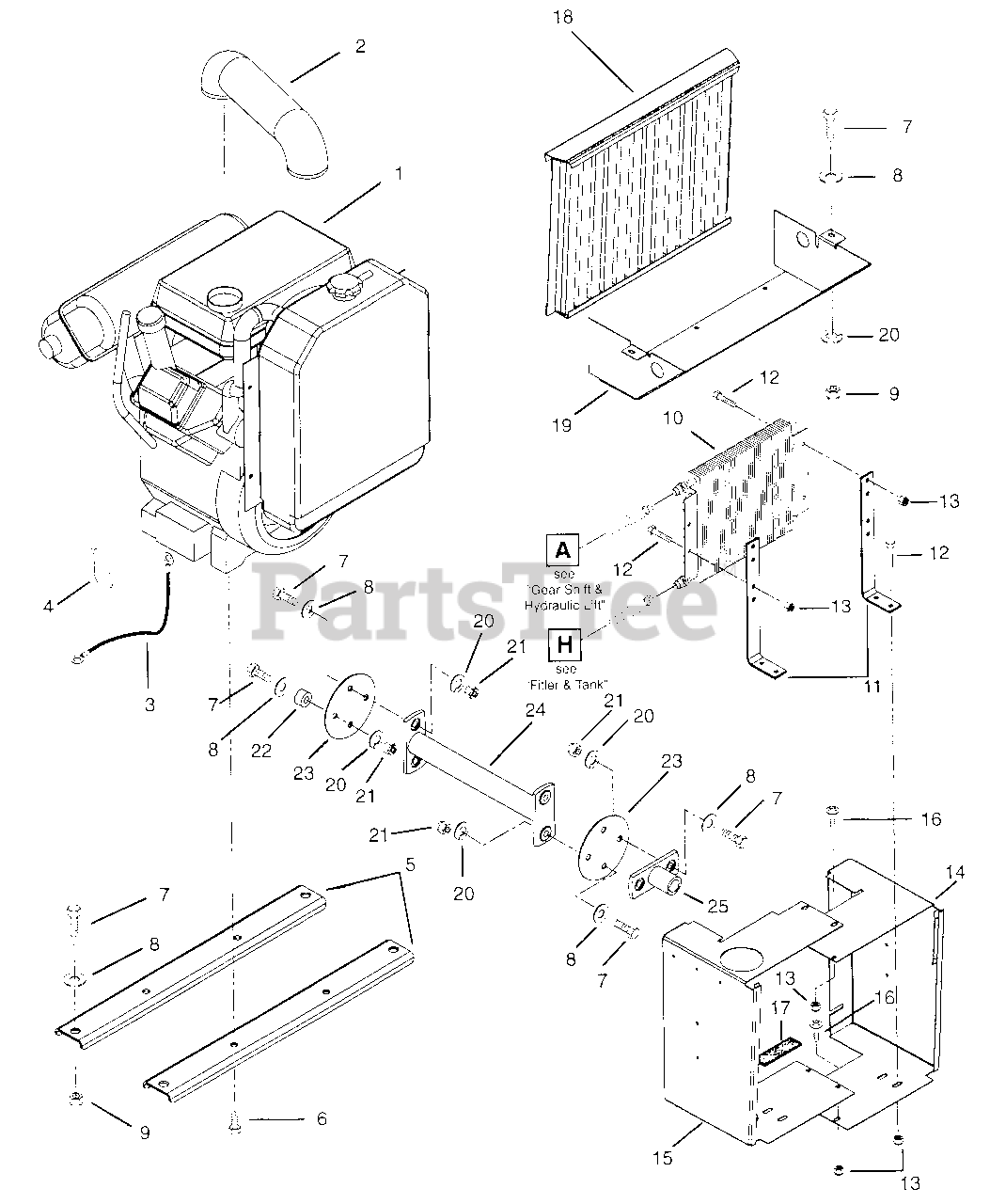

Engine and Exhaust Kawasaki Parts Diagram

  • Title

1

Gravely 00560400

ENGINE, 20 HP KAWASAKI FD620D

$

$

Not available

2

Gravely 09060500

HOSE, AIR INTAKE (KAWASAKI)

$

$

Not available

3

Gravely 09047700

GROUND STRAP

$

$

Not available

4

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 09049900

BRACKET, ENGINE MOUNT

$

$

Not available

6

Gravely 046361

BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

7

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 053101

COOLER,OIL
(Superseded to 08856200)

$

$

Not available

11

Gravely 09062300

BRKT, OIL COOLER MOUNT (KAW)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 180022

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

13

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

14

Gravely 09060900

WLDM'T, INTAKE DUCT L.H.

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 09060800

WLDM'T, INTAKE DUCT R.H.

$74.99

$

Usually ships in 4-12 days

0

16

Gravely 06116300

SCR .25-20X.50 PH PHD BLK

$

$

Not available

17

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.49

$

In Stock, Qty 6

0

18

Gravely 00520600

GRILLE, RADIATOR, PAINTED
(Superseded to 09422600)

$

$

Not available

19

Gravely 09061001

SHIELD, BOTTOM AIR INTAKE

$

$

Not available

20

Gravely 120382

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 00518000

SPACER .406X.88X.38

$10.99

$

Usually ships in 4-12 days

0

23

Gravely 00517800

FLEX COUPLING DISC

$

$

Not available

24

Gravely 09050100

WLDMT, TRANMISSION DRIVE

$

$

Not available

25

Gravely 09050000

WLDMT, TRANS COUPLING

$

$

Not available
