990004 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) Engine and Exhaust Kawasaki Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kawasaki

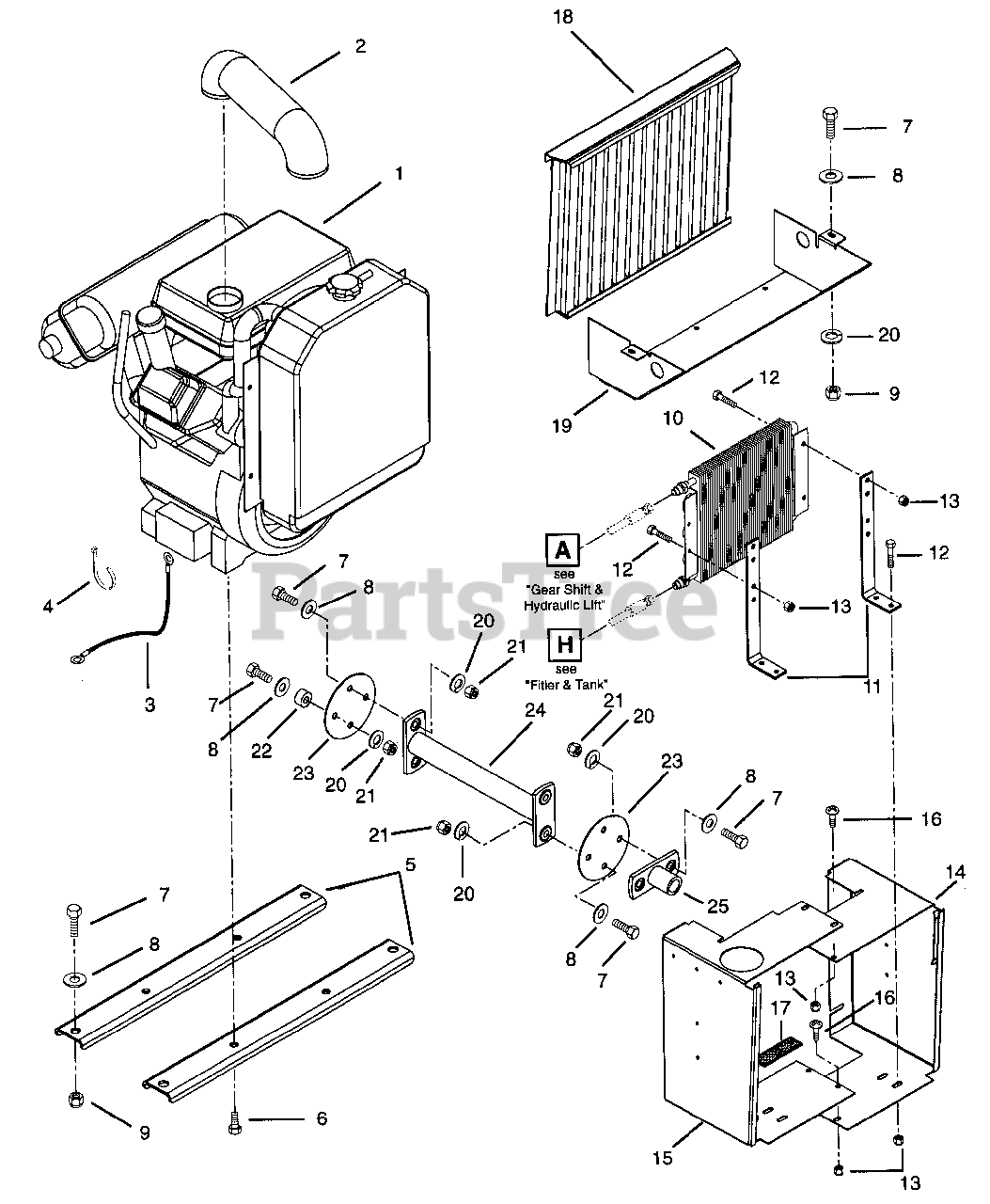

Engine and Exhaust Kawasaki Parts Diagram

  • Title

1

Gravely 00560400

Engine, 20 HP Kawasaki FD620D

$

$

Not available

2

Gravely 09060500

Hose, Air Intake

$

$

Not available

3

090477

Ground Strap

$

$

Not available

4

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 09049900

Bracket, Engine Mount

$

$

Not available

6

Gravely 046361

Bolt-Hex M8 x 1.25 x 20MM
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 180122

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06400200

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06435700)

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

10

Gravely 053101

Cooler, Oil
(Superseded to 08856200)

$

$

Not available

11

Gravely 09062300

Bracket, Oil Cooler Mount

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 180022

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

13

Gravely 419454

Nut-Lock-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

14

Gravely 09060900

Weldment, Intake Duct Left Hand

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 09060800

Weldment, Intake Duct Right Hand

$74.99

$

Usually ships in 4-12 days

0

16

Gravely 06116300

Screw, 1/4-20 x .50

$

$

Not available

17

Gravely 00929000

Seal, Trim-Lok Bulk

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 00520600

Grille, Radiator
(Superseded to 09422600)

$

$

Not available

19

Gravely 09061001

Shield, Bottom Air Intake

$

$

Not available

20

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

21

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 00518000

Spacer .406 I.D. x .88 O.D. x .38 Long

$10.99

$

Usually ships in 4-12 days

0

23

Gravely 00517800

Flex Coupling Disc

$

$

Not available

24

Gravely 09050100

Weldment, Transmission Drive

$

$

Not available

25

Gravely 09050000

Weldment, Transmission Coupling

$

$

Not available
