990004 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) Fuel System Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kawasaki

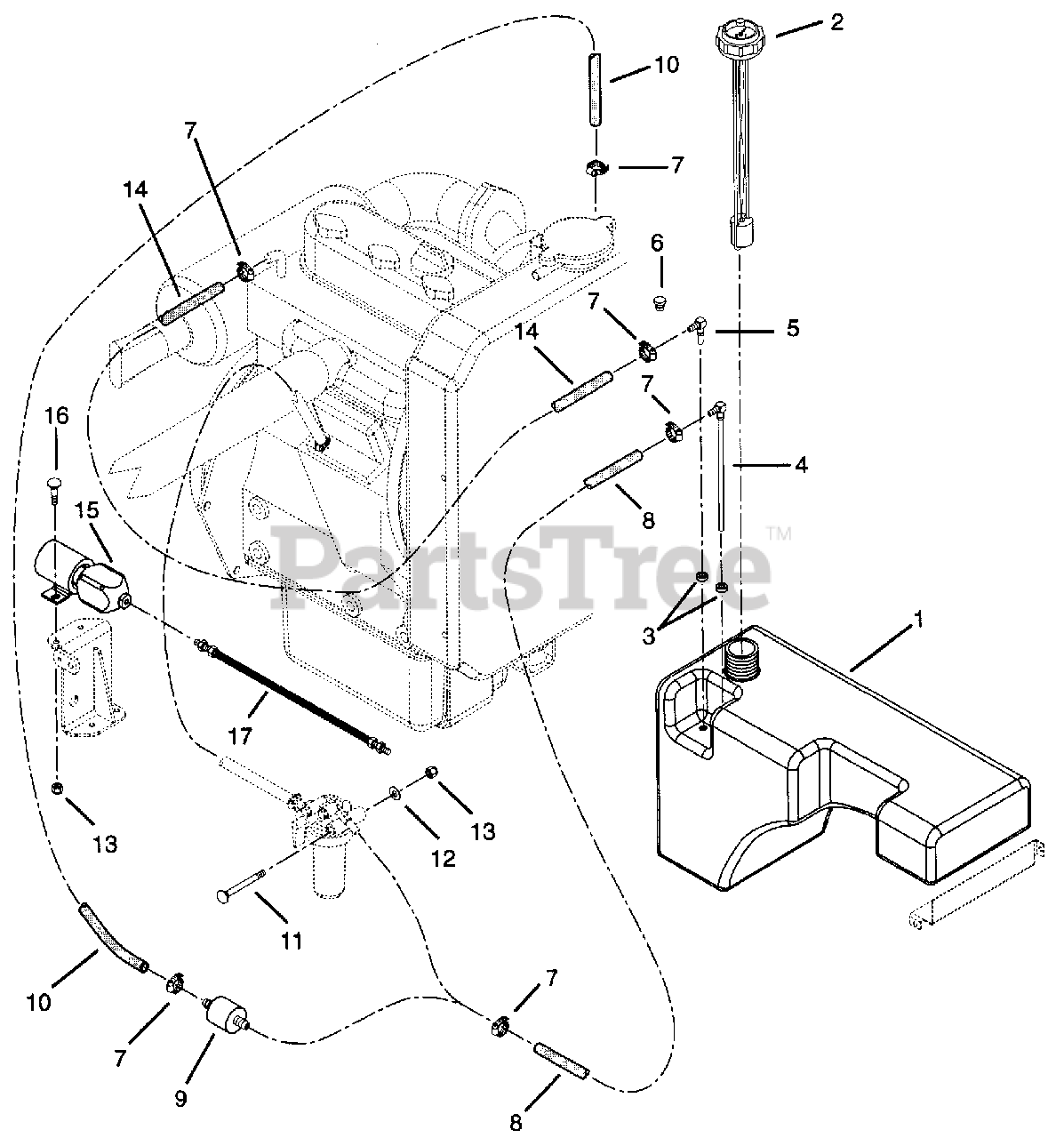

Fuel System Parts Diagram

  • Title

1

Gravely 09051700

TANK, FUEL

$103.99

$

Usually ships in 4-12 days

0

2

Gravely 08983200

GAUGE,FUEL

$

$

Not available

3

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

4

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

5

Gravely 07023300

FTG-TANK 1.37X.406 PL

$

$

Not available

6

Gravely 07044500

PLUG, FUEL TANK BUSHING

$

$

Not available

7

Gravely 06924300

HOSE CLAMP

$7.99

$

Usually ships in 4-12 days

0

8

Gravely 00519500

HOSE, FUEL, .312 ID X 8.00

$

$

Not available

9

Gravely 08811700

FILTER,FUEL

$10.99

$

Usually ships in 4-12 days

0

10

Gravely 00519300

HOSE, FUEL, .312 ID X 14

$

$

Not available

11

Gravely 05934200

BLT-HEX .25-20X2.75
(Superseded to 05969900)

$

$

Not available

12

Gravely 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$5.49

$

In Stock, Qty 12

0

14

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00526500

FUEL STOP SOLENOID - DIESEL

$

$

Not available

16

Gravely 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$1.49

$

In Stock, only 3 left!

0

17

Gravely 00519200

CABLE ASSY, FUEL STOP SOLENOID

$

$

Not available
