990008 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) PTO DRIVE Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

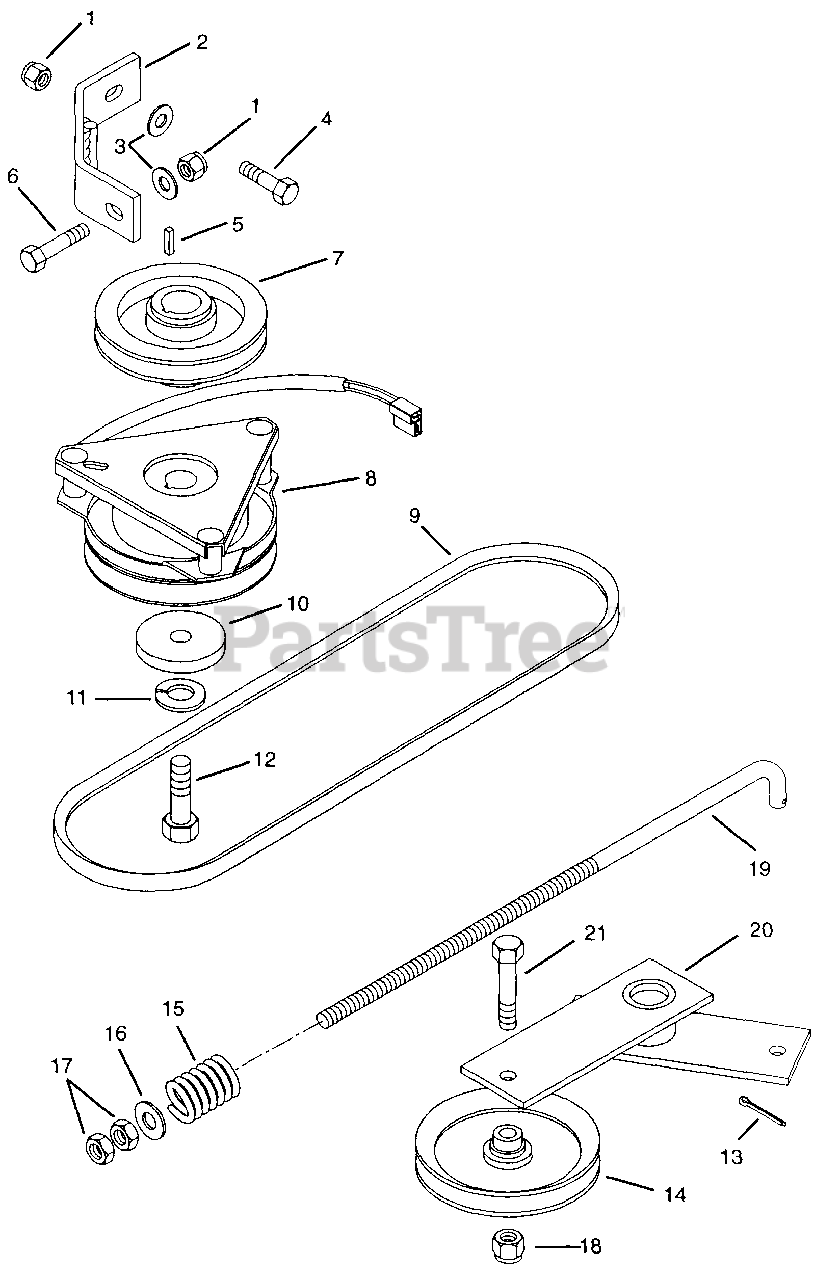

PTO DRIVE Parts Diagram

  • Title

1

Gravely 419455

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 052643

Weldment, Clutch Stop (007,008)
(Superseded to 09010800)

Note: (007,008)

$104.99

$

Usually ships in 4-12 days

0

2

Gravely 09068900

Weldment, Clutch Stop (011)

Note: (011)

$

$

Not available

3

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, Qty 10

0

5

Gravely 018345

Key-Square .248 x 1.25 x .248
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 180081

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

7

Gravely 049352

Sheave (007,008)
(Superseded to 08989100)

Note: (007,008)

$

$

Not available

7

Gravely 09078200

Sheave (011)

Note: (011)

$

$

Not available

8

Gravely 052632

Clutch, Electric (007,008)
(Superseded to 04915400)

Note: (007,008)

$475.99

$

Usually ships in 4-12 days

0

8

Gravely 09068200

Clutch, Electric (011)

Note: (011)

$527.99

$

In Stock, only 1 left!

0

9

Gravely 07225100

V-Belt A-Section 19.65 x 17/32 (007,008)

Note: (007,008)

$39.99

$

In Stock, only 1 left!

0

9

Gravely 07233500

V-Belt (011)

Note: (011)

$56.99

$

In Stock, only 1 left!

0

10

Gravely 044379

Washer-Special .469 x 2.000 x .250
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 120383

Washer-Lock .44
(Superseded to 06300121)

$2.99

$

In Stock, only 1 left!

0

12

Gravely 181670

Bolt-Hex .44-20 x 1.50 Grade 5
(Superseded to 05902004)

$6.49

$

In Stock, only 2 left!

0

13

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

14

Gravely 021060

Pulley-Idler 4.50 x .380
(Superseded to 07314800)

$40.99

$

In Stock, Qty 6

0

15

Gravely 021506

Spring-Compression .072 x .561 x 2.50
(Superseded to 08329600)

$23.99

$

Usually ships in 4-12 days

0

16

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 120377

Nut-Hex .375-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 456004

Nut-Locking-Nylon .375-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 09037600

Rod, Idler

$

$

Not available

20

Gravely 049754

Weldment, Idler
(Superseded to 08992400)

$

$

Not available

21

Gravely 180129

Bolt-Hex .38-16 x 1.875
(Superseded to 05935100)

$

$

Not available
