990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

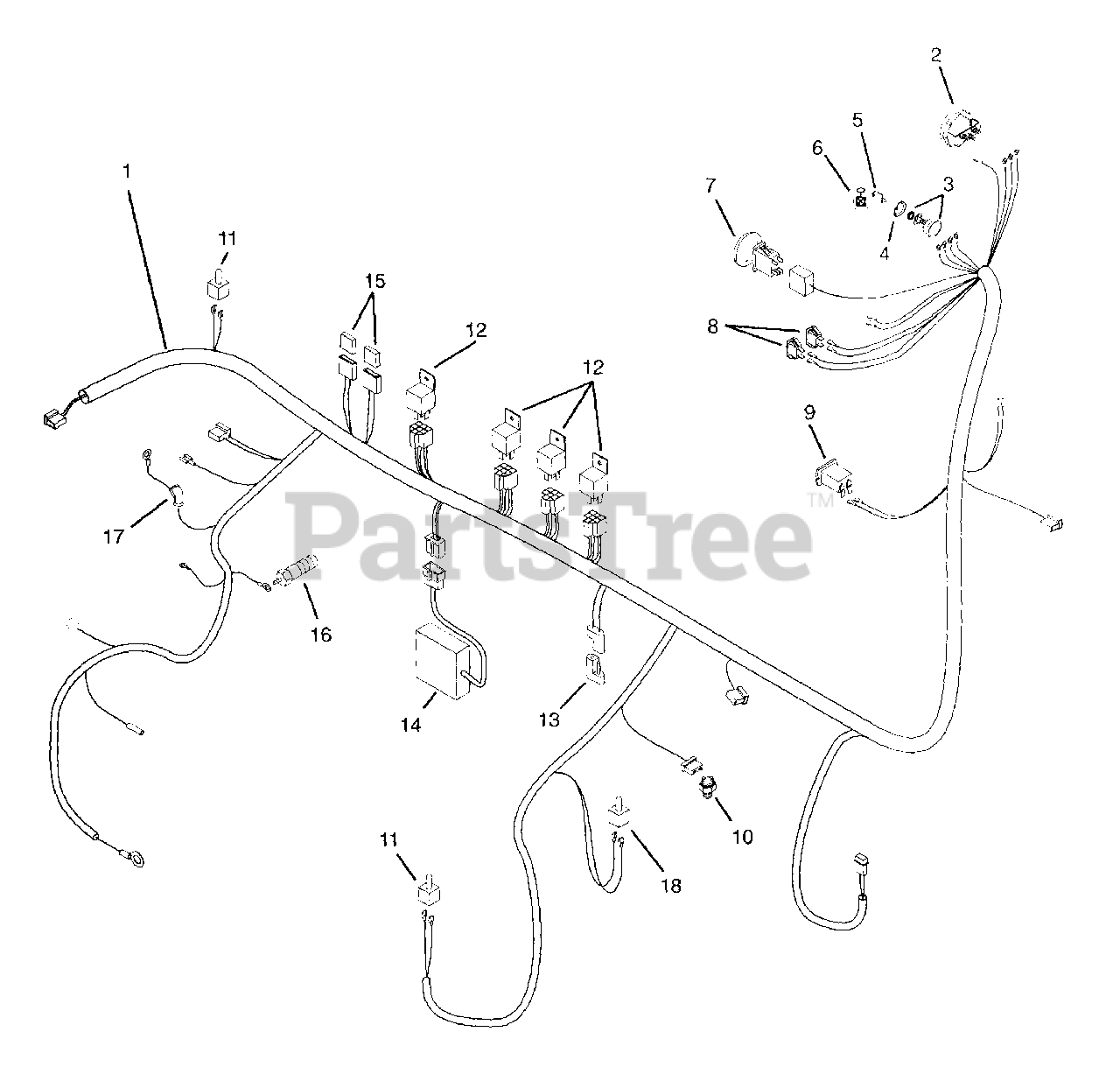

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 09082000

Harness, Wiring

Note: (Model 010)

$

$

Not available

1

Gravely 09089900

Harness, Wiring

Note: (Model 016)

$

$

Not available

2

Gravely 09080200

Gauge, Temperature

$98.99

$

Usually ships in 4-12 days

0

3

Gravely 09056700

Switch, Ignition
(Superseded to 00168400)

Note: (Model 010)

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 09089700

Switch, Ignition
(Superseded to 04331700)

Note: (Model 016)

$40.99

$

In Stock, Qty 8

0

4

Gravely 07517700

Cap, Ignition Switch

$3.99

$

In Stock, Qty 7

0

5

Gravely 21510400

Ignition Key Set

$9.99

$

Usually ships in 4-12 days

0

6

Gravely 03490000

Key Chain

$

$

Not available

7

Gravely 01545600

Switch, Clutch with Retaining Ring

$23.99

$

In Stock, Qty 12

0

8

Gravely 08841200

Light, Indicator
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 03492700

Hour Meter
(Superseded to 09497400)

$22.99

$

In Stock, only 3 left!

0

10

Gravely 01526100

Switch, Neutral N.O.

$55.99

$

Usually ships in 4-12 days

0

11

Gravely 03657100

Switch, Interlock

$9.49

$

In Stock, Qty 6

0

12

Gravely 03042800

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 16

0

13

Gravely 03081700

Diode

$26.99

$

In Stock, only 1 left!

0

14

Regulator

Regulator

$

$

Not available

15

Gravely 00524600

Fuse 30 Amp

$

$

Not available

16

Gravely 09058800

Temperature Sender

$106.99

$

Usually ships in 4-12 days

0

17

Gravely 03384700

Boot

$

$

Not available

18

Gravely 03095700

Switch, Interlock N.C. (Parking Brake)

Note: (Parking Brake)

$10.99

$

Usually ships in 4-12 days

0
