990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) ENGINE, CLUTCH, AND DRIVE - DIESEL Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

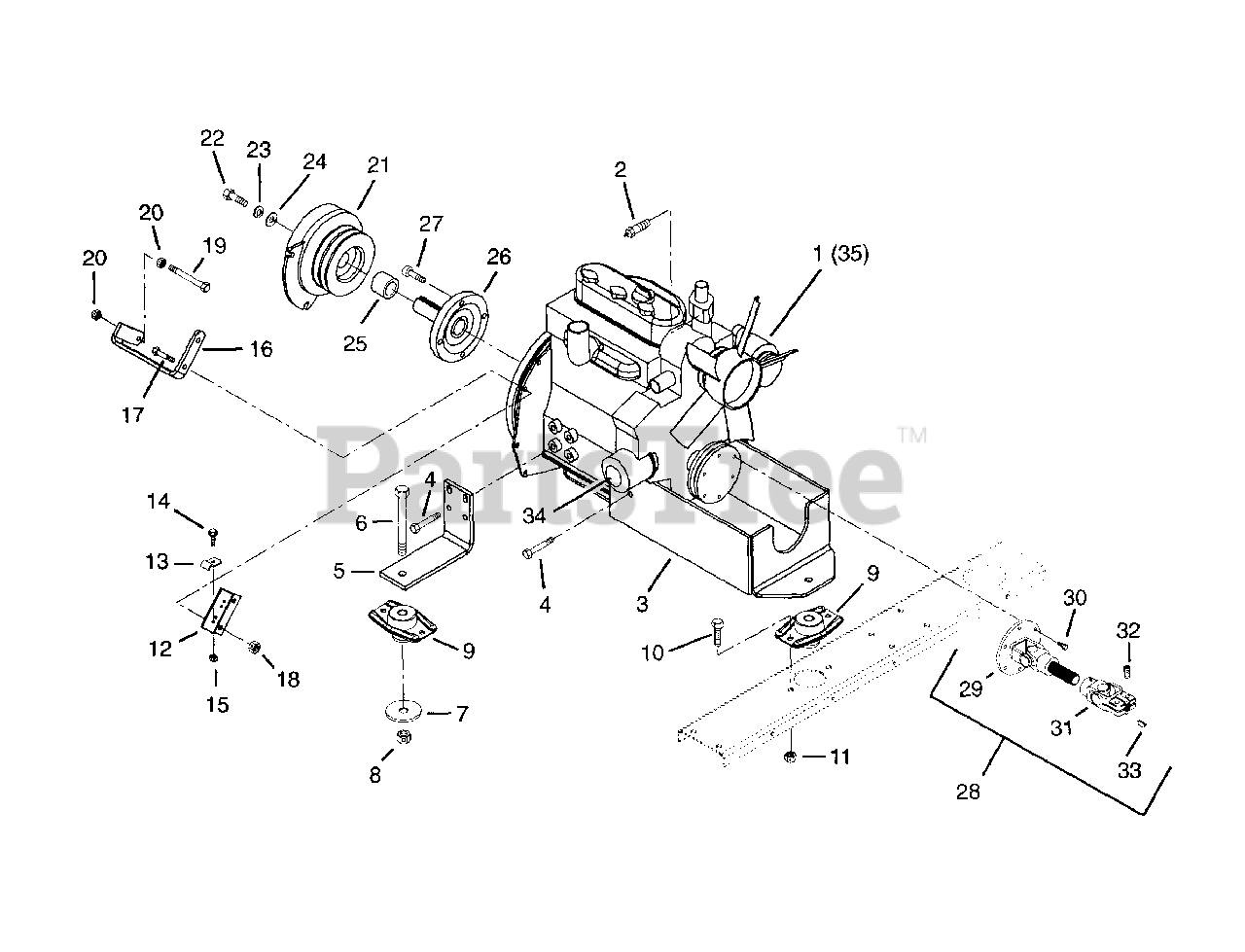

ENGINE, CLUTCH, AND DRIVE - DIESEL Parts Diagram

  • Title

1

Gravely 08248600

Engine, Yanmar

$

$

Not available

2

Gravely 09058800

Temperature Sender

$106.99

$

Usually ships in 4-12 days

0

3

Gravely 09071300

Weldment, Front Engine Mount

$45.99

$

Usually ships in 4-12 days

0

4

Gravely 05967600

Bolt-Hex M10-1.5 x 20 mm Grade 5

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 09074200

Bracket, Engine Mount

$54.99

$

In Stock, only 1 left!

0

6

Gravely 05965500

Bolt-Hex .50-13 x 2.75 Grade 5
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 06428100

Washer-Snub-Steel .53 x 2.38 x .125

$

$

Not available

8

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 07528500

Mount, Engine Isolator

$

$

Not available

10

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09075000

Bracket, Control

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 06928000

Clip

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

16

Gravely 09073700

Bracket, Clutch Stop

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 05967700

Bolt-Hex M8 x 1.25 x 25mm
(Superseded to 05964900)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 06538500

Nut-Locking-Center M8 x 1.25
(Superseded to 06541700)

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 05952600

Bolt-Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, only 4 left!

0

20

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 09072200

Electric Clutch

$840.99

$

Usually ships in 4-12 days

0

22

Gravely 05960700

Bolt-Hex .375-24 x 1.25 Grade 5

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 06309900

Washer-Locking .38 x .094

$

$

Not available

24

Gravely 00527200

Washer Retaining .406 x 1.625 x .25
(Superseded to 06309100)

$

$

Not available

25

Gravely 09073300

Spacer

$11.99

$

Usually ships in 4-12 days

0

26

Gravely 09068300

Weldment, Clutch Stub Shaft

$

$

Not available

27

Gravely 05966400

Screw-Socket Head M10 x 1.5 x 20mm

$

$

Not available

28

Gravely 09071900

Driveline, Universal

$

$

Not available

29

Gravely 21511900

Adapter, Flywheel

$

$

Not available

30

Gravely 05956300

Bolt-Hex M8 x 1.25 x 16mm

$

$

Not available

31

Gravely 21512000

Assembly, U-Joint

$

$

Not available

32

Gravely 06004900

Screw-Set .38-16 x .50

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 06600300

Key-Woodruff .188 x .75 x .313

$1.49

$

In Stock, Qty 7

0

34

Gravely 21021300

Oil Filter

Note: Engine Service Parts

$34.99

$

Usually ships in 4-12 days

0

35

Gravely 21014100

Glow Plug

Note: Engine Service Parts

$

$

Not available
