990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) EXHAUST AND COOLING Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

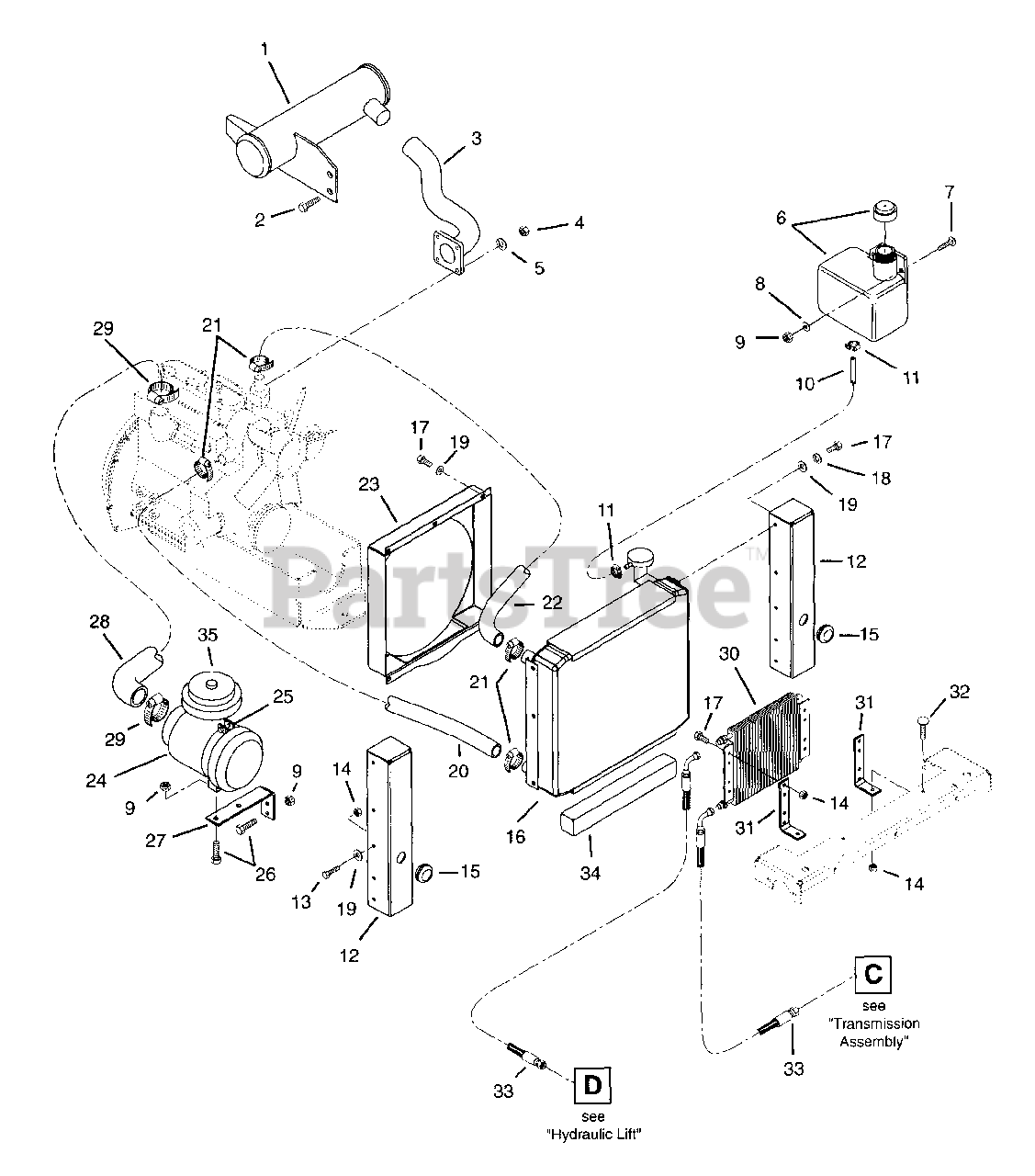

EXHAUST AND COOLING Parts Diagram

  • Title

1

Gravely 09082100

MUFFLER

$

$

Not available

2

Gravely 05967700

BLT-HEX M8 X 1.25X25 GR5 YWZC
(Superseded to 05964900)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 09074600

MANIFOLD, EXHAUST

$

$

Not available

4

Gravely 06538600

NUT-HEX M8-1.25 YWZC

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09032400

TANK,PLASTIC 1.5 QT

$

$

Not available

7

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06924300

HOSE CLAMP

$7.99

$

Usually ships in 4-12 days

0

12

Gravely 09083800

MOUNT, RADIATOR

$20.99

$

Usually ships in 4-12 days

0

13

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

14

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07530600

GRMT .75X1.06X1.38

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 09082200

RADIATOR

$1004.99

$

Usually ships in 4-12 days

0

17

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 1 left!

0

18

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 7

0

19

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 09069400

HOSE, LOWER RADIATOR

$

$

Not available

21

Gravely 06922000

ENGINE CONTROL CABLE
(Superseded to 06947700)

$23.99

$

In Stock, Qty 7

0

22

Gravely 09069300

HOSE, UPPER RADIATOR

$

$

Not available

23

Gravely 09070900

WLDMT, FAN SHROUD

$20.99

$

Usually ships in 4-12 days

0

24

Gravely 09068500

AIR CLEANER

$88.99

$

Usually ships in 4-12 days

0

Gravely 21512500

ELEMENT, AIR CLEANER

$

$

Not available

25

Gravely 09067900

BRACKET, AIR CLEANER

$

$

Not available

26

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 09073500

BRKT, AIR FILTER MOUNT

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 09069600

HOSE, AIR CLEANER

$

$

Not available

29

Gravely 06923600

CLAMP,2.25 DIA. HOSE

$6.99

$

Usually ships in 4-12 days

0

30

Gravely 08856200

COOLER,OIL

$

$

Not available

31

Gravely 09075400

BRACKET, OIL COOLER MOUNT

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 09072700

ASSY, HYDRAULIC HOSE

$

$

Not available

34

Gravely 00928700

TAPE-ADHESIVE BACKED FOAM

$

$

Not available

35

Gravely 09069700

CAP, AIR CLEANER

$

$

Not available
