990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) EXHAUST AND COOLING Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

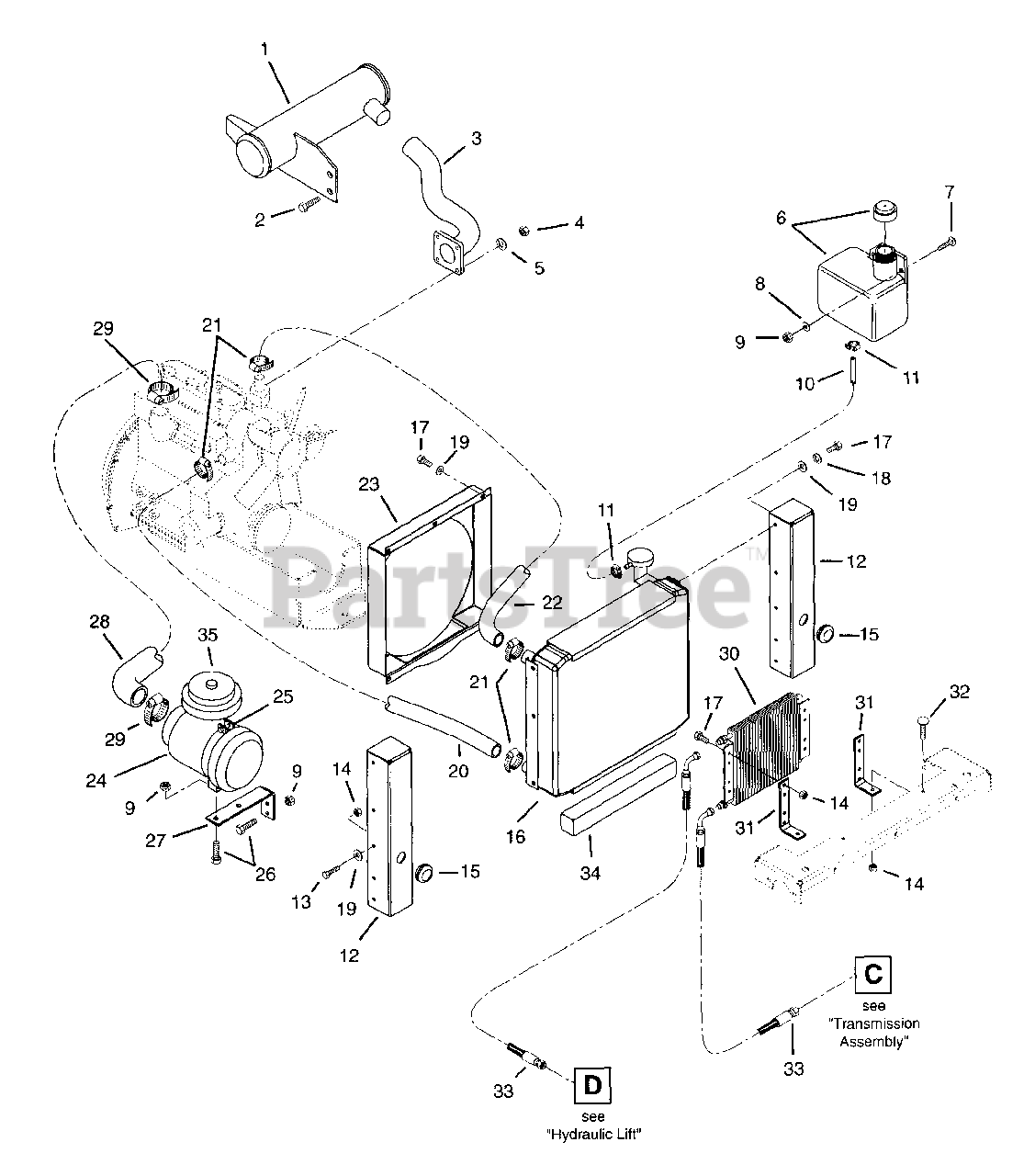

EXHAUST AND COOLING Parts Diagram

  • Title

1

Gravely 09082100

Muffler

$

$

Not available

2

Gravely 05967700

Bolt-Hex M8 x 1.25 x 25 Grade 5
(Superseded to 05964900)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 09074600

Manifold, Exhaust

$

$

Not available

4

Gravely 06538600

Nut-Hex M8-1.25

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 09032400

Tank, Plastic 1.5 Quart

$

$

Not available

7

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, only 1 left!

0

8

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 8

0

9

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00924300

Gas Line-Bulk 1/4" I.D.
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06924300

Hose Clamp

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 09083800

Mount, Radiator

$20.99

$

Usually ships in 4-12 days

0

13

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

14

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07530600

Grommet

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 09082200

Radiator

$1004.99

$

Usually ships in 4-12 days

0

17

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

18

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

19

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

20

Gravely 09069400

Hose, Lower Radiator

$

$

Not available

21

Gravely 06922000

Clamp, Hose 1.50 x .81 x 1.42
(Superseded to 06947700)

$22.99

$

Usually ships in 4-12 days

0

22

Gravely 09069300

Hose, Upper Radiator

$

$

Not available

23

Gravely 09070900

Weldment, Fan Shroud

$20.99

$

Usually ships in 4-12 days

0

24

Gravely 09068500

Air Cleaner

$84.99

$

Usually ships in 4-12 days

0

24

Gravely 21512500

Element, Air Cleaner

$

$

Not available

25

Gravely 09067900

Bracket, Air Cleaner

$

$

Not available

26

Gravely 05947000

Bolt-Hex .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

27

Gravely 09073500

Bracket, Air Filter Mount

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 09069600

Hose, Air Cleaner

$

$

Not available

29

Gravely 06923600

Clamp, 2.25 Dia. Hose

$6.49

$

Usually ships in 4-12 days

0

30

Gravely 08856200

Cooler, Oil

$

$

Not available

31

Gravely 09075400

Bracket, Oil Cooler Mount

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 09072700

Assembly, Hydraulic Hose

$

$

Not available

34

Gravely 00928700

Tape-Adhesive Backed Foam

$

$

Not available

35

Gravely 09069700

Cap, Air Cleaner

$

$

Not available
