990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) HOOD AND SCREENS Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

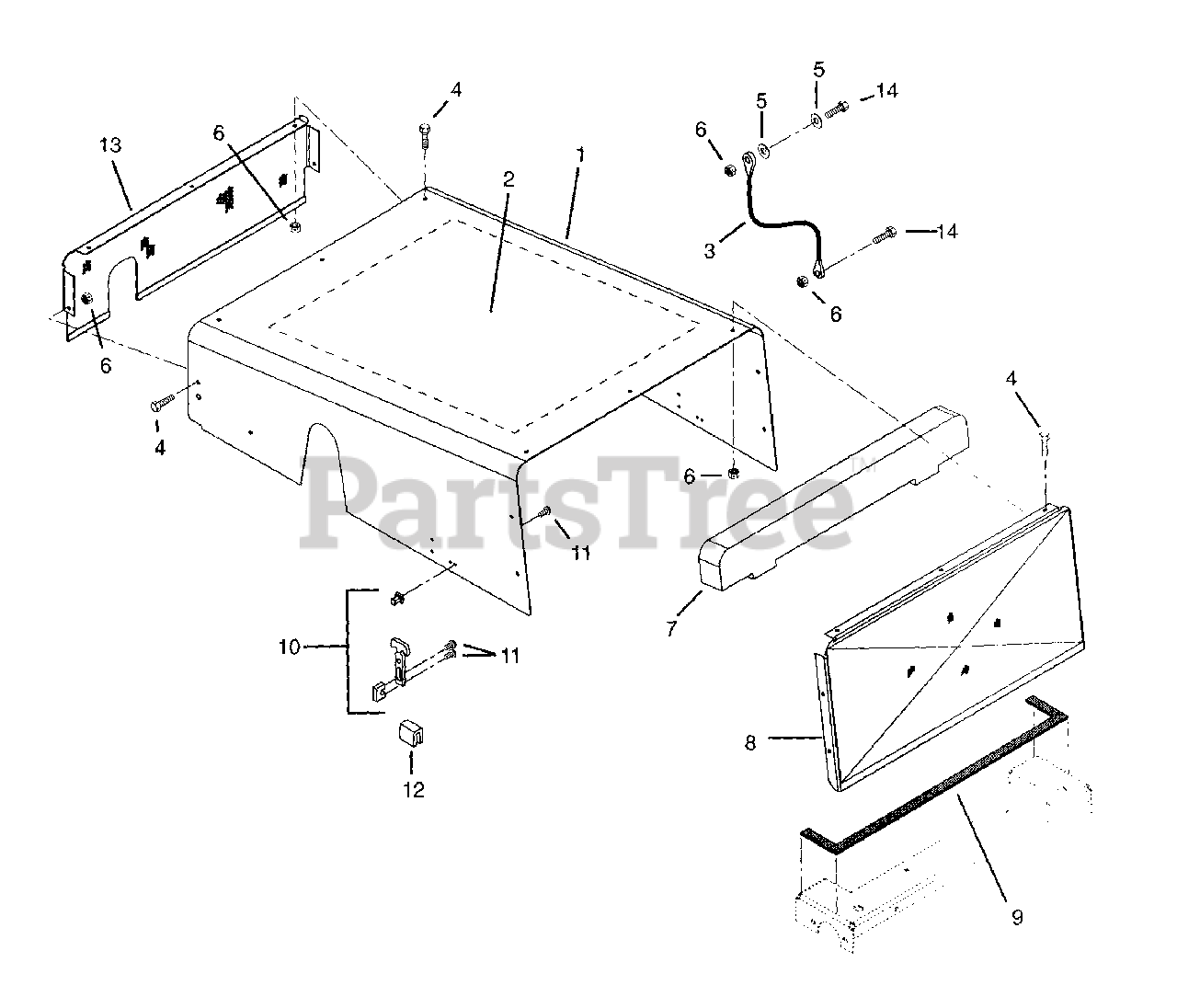

HOOD AND SCREENS Parts Diagram

  • Title

1

Gravely 09076900

Hood

Note: (Model 010)

$113.99

$

Usually ships in 4-12 days

0

1

Gravely 09087900

Hood

Note: (Model 016)

$

$

Not available

2

Gravely 09076600

Sound Panel

$

$

Not available

3

Gravely 06927100

Cable, Hood

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 06114300

Screw-Machine .25-20 x .50 TXTR

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 8

0

6

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 09076500

Foam, Hood

Note: (Model 010)

$82.99

$

Usually ships in 4-12 days

0

7

Gravely 09088200

Foam, Hood

Note: (Model 016)

$

$

Not available

8

Gravely 09079200

Hood, Front Screen

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 00905900

Foam Tape 1/4 x 3/4

$

$

Not available

10

Gravely 09079500

Latch, Rubber

$34.99

$

Usually ships in 4-12 days

0

11

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 00918200

Strip, Cowl

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 09078700

Screen, Rear

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0
