990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) HYDRAULIC LIFT Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

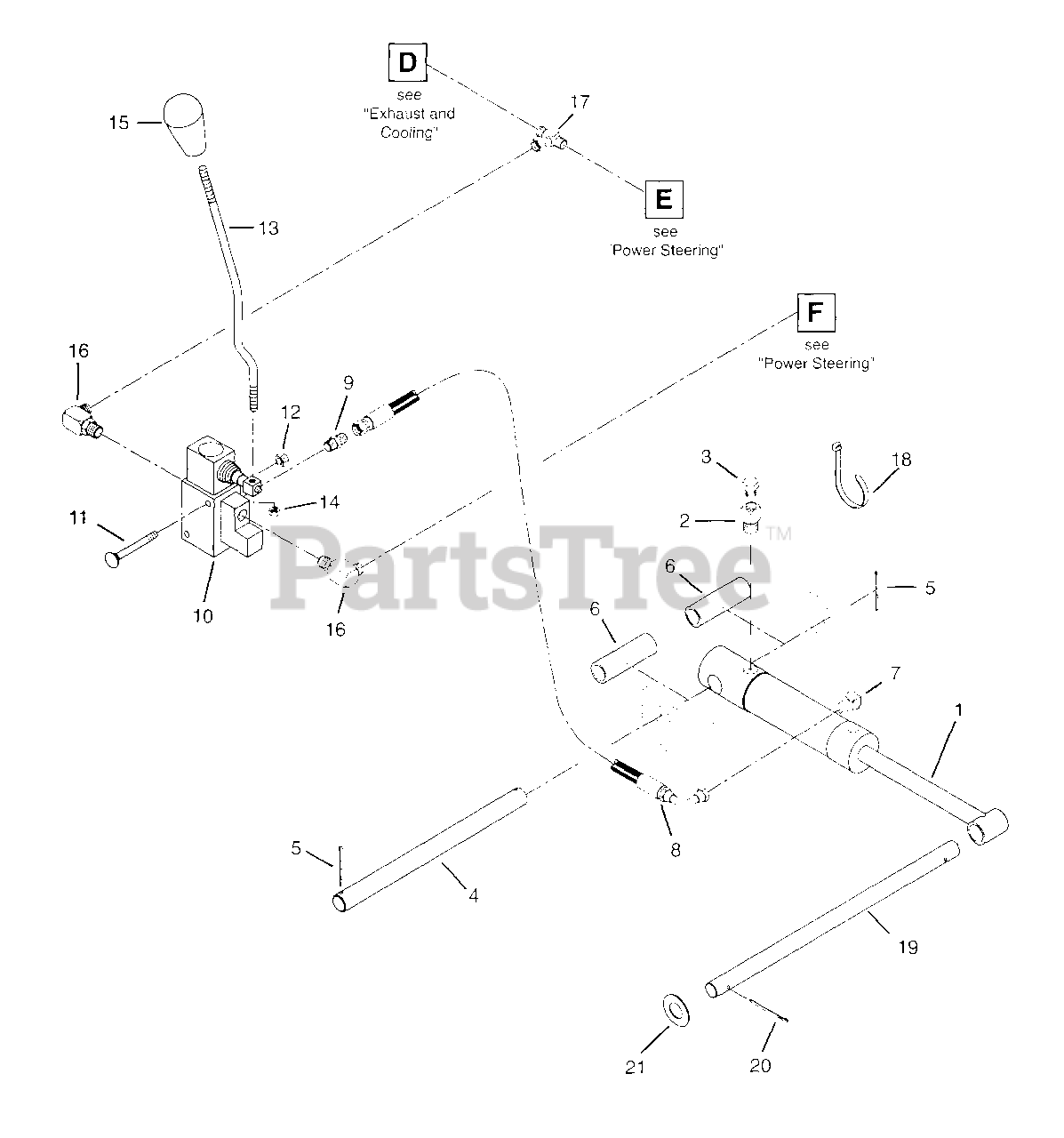

HYDRAULIC LIFT Parts Diagram

  • Title

1

Gravely 09079600

CYLINDER, LIFT

$291.99

$

Usually ships in 4-12 days

0

2

Gravely 07050700

ADAPTER, FITTING

$

$

Not available

3

Gravely 07050600

PLUG, BREATHER 3/8"

$

$

Not available

4

Gravely 09051000

PIN, LIFT CYL. MOUNT

$20.99

$

Usually ships in 4-12 days

0

5

Gravely 06713700

PIN-HAIR-INT .09X.188X2.00YWZC
(Superseded to 06712900)

$6.99

$

In Stock, Qty 9

0

6

Gravely 09088700

SPACER, LIFT CYL.

Note: (Model 016)

$

$

Not available

Gravely 09051000

PIN, LIFT CYL. MOUNT

Note: (Model 010)

$20.99

$

Usually ships in 4-12 days

0

Gravely 09051100

SPACER, LIFT CYL. SHORT

Note: (Model 010)

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$9.99

$

Usually ships in 4-12 days

0

8

Gravely 09071500

ASSY, HYDRAULIC HOSE

$

$

Not available

9

Gravely 07017500

ADPT-PIPE (0503-6-6)

$12.99

$

In Stock, only 2 left!

0

10

Gravely 09067400

VALVE, HYDRAULIC

$

$

Not available

11

Gravely 06221600

BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

In Stock, Qty 12

0

12

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 09072800

CONTROL ROD

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 06537800

NUT-JAM M10-1.5 YWZC

$

$

Not available

15

Gravely 07529900

KNOB
(Superseded to 07533500)

$10.99

$

In Stock, Qty 6

0

16

Gravely 07051200

FITTING, ADAPTER (TF5515-6-8)

$

$

Not available

17

Gravely 07042900

ADAPTER, FTG TEE 6-6-6 JIC SW

$

$

Not available

18

Gravely 07519900

TIE WRAP, BLACK LG 7.31

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 09052100

SHAFT, MWR LIFT

$56.99

$

Usually ships in 4-12 days

0

20

Gravely 06713100

PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

$4.99

$

In Stock, only 2 left!

0

21

Gravely 06442600

WSHR-FL-STL 1.38X2.50X.136 YZ

$

$

Not available
