990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) PARKING BRAKE Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

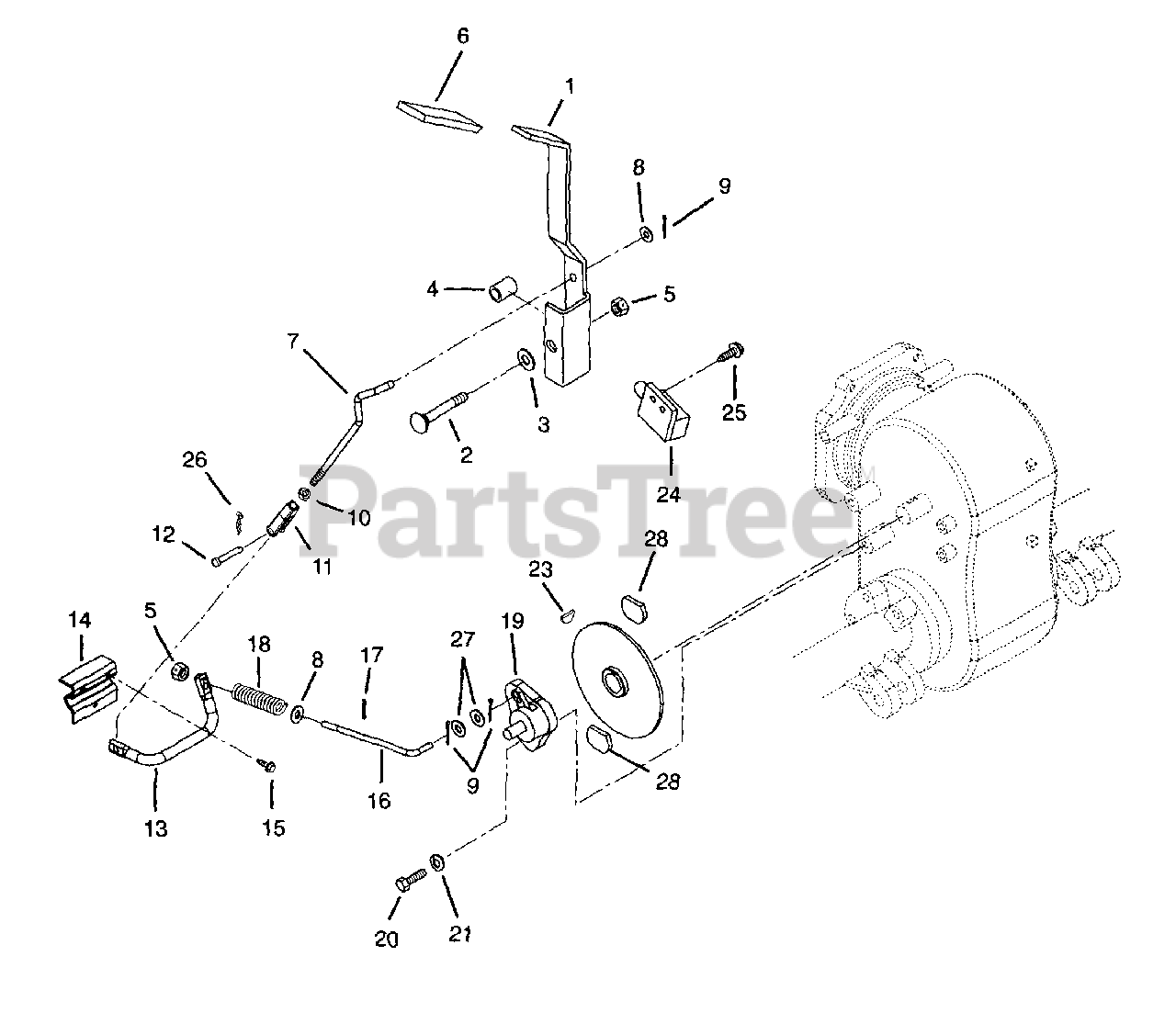

PARKING BRAKE Parts Diagram

  • Title

1

Gravely 00514100

Lever, Brake

$

$

Not available

2

Gravely 06215300

Bolt-Round Head Square Neck .38-16 x 1.50
(Superseded to 06224200)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 00514300

Spacer, Roll .41 ID x .62 OD x .42

$

$

Not available

5

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07509400

Grip

$

$

Not available

7

Gravely 09069000

Rod, Brake Linkage

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

9

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 9

0

10

Gravely 06536700

Nut-Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 8

0

11

Gravely 00513800

Yoke .312-24 x 2.25

$29.99

$

Usually ships in 4-12 days

0

12

Gravely 06814000

Pin-Clevis .31 x .937

$3.99

$

In Stock, only 1 left!

0

13

Gravely 09068700

Rod, Brake Pivot

$

$

Not available

14

Gravely 09073600

Plate, Pivot

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 07402800

Screw-Tapping .250-20 x .75 Hex Washer Head
(Superseded to 07400131)

$1.49

$

In Stock, Qty 11

0

16

Gravely 09069100

Rod, Brake Link

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 05802900

Roll Pin .156 x 1.00

$0.99

$

In Stock, Qty 5

0

18

Gravely 08328100

Spring-Compression 2.00 x .404

$

$

Not available

19

Gravely 09069500

Brake Assembly

Note: Contains item 31

$

$

Not available

20

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

21

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 17

0

22

Gravely 09070200

Weldment, Disk Brake

$11.99

$

Usually ships in 4-12 days

0

23

Gravely 06600300

Key-Woodruff .188 x .75 x .313

$1.49

$

In Stock, Qty 7

0

24

Gravely 03095700

Switch, Interlock N.C.

$10.99

$

Usually ships in 4-12 days

0

25

Gravely 07411900

Screw-Tapping 12-24 x .50 Hex Washer Head
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

26

Gravely 06709800

Pin-Hair-Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 16

0

27

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 21525300

Pad, Brake

$

$

Not available
