990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) SEAT LID AND SEAT Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

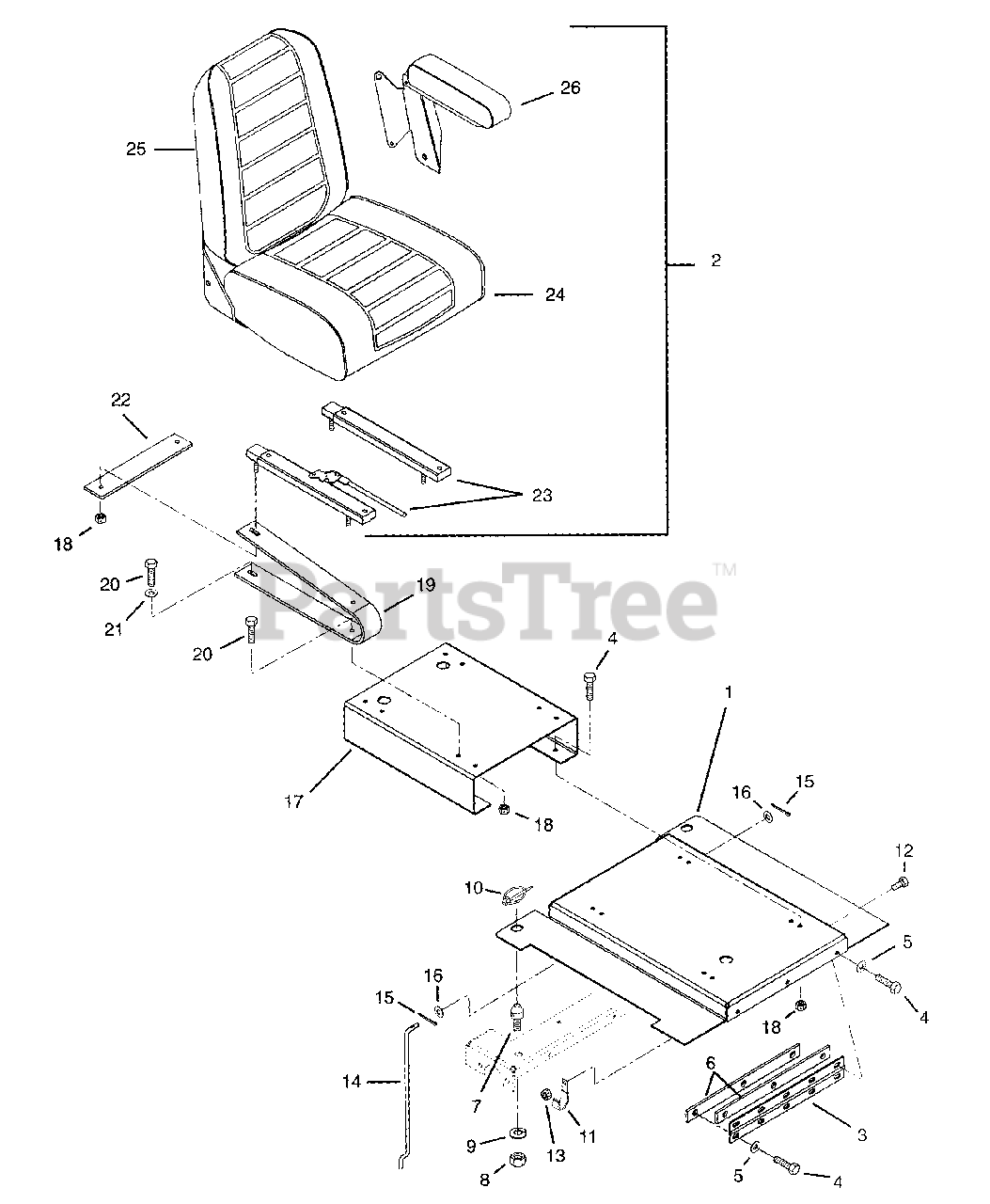

SEAT LID AND SEAT Parts Diagram

  • Title

1

Gravely 09070600

Weldment, Seat Lid

Note: (Model 010)

$52.99

$

Usually ships in 4-12 days

0

1

Gravely 09085500

Weldment, Seat Lid

Note: (Model 016)

$

$

Not available

2

Gravely 09072300

Seat

Note: (Contains items 22-26)

$307.99

$

Usually ships in 4-12 days

0

3

Gravely 03102800

Hinge

$25.99

$

In Stock, only 1 left!

0

4

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

5

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

6

Gravely 01539100

Plate, Clamping

$

$

Not available

7

Gravely 08964800

Pin, Catch

$

$

Not available

8

Gravely 06537300

Nut-Hex .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

10

Gravely 07015400

Pin, Klik

$5.99

$

In Stock, only 1 left!

0

11

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 11

0

12

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

13

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09061500

Rod, Seat Lid Prop

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

16

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 09073100

Riser, Seat

Note: (Model 010)

$34.99

$

Usually ships in 4-12 days

0

18

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03486851

Spring, Seat

$220.99

$

Usually ships in 4-12 days

0

20

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

21

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

22

Gravely 09079000

Bracket, Seat

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 03600800

Seat Slides with Handle

$104.99

$

Usually ships in 4-12 days

0

24

Gravely 21512200

Seat Cushion with Switch

$330.99

$

Usually ships in 4-12 days

0

25

Gravely 21512100

Cushion, Back

$

$

Not available

26

Gravely 21512300

Armrest, Left Hand

$

$

Not available

26

Gravely 21512400

Armrest, Right Hand

$

$

Not available
