990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) TRANSMISSION ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

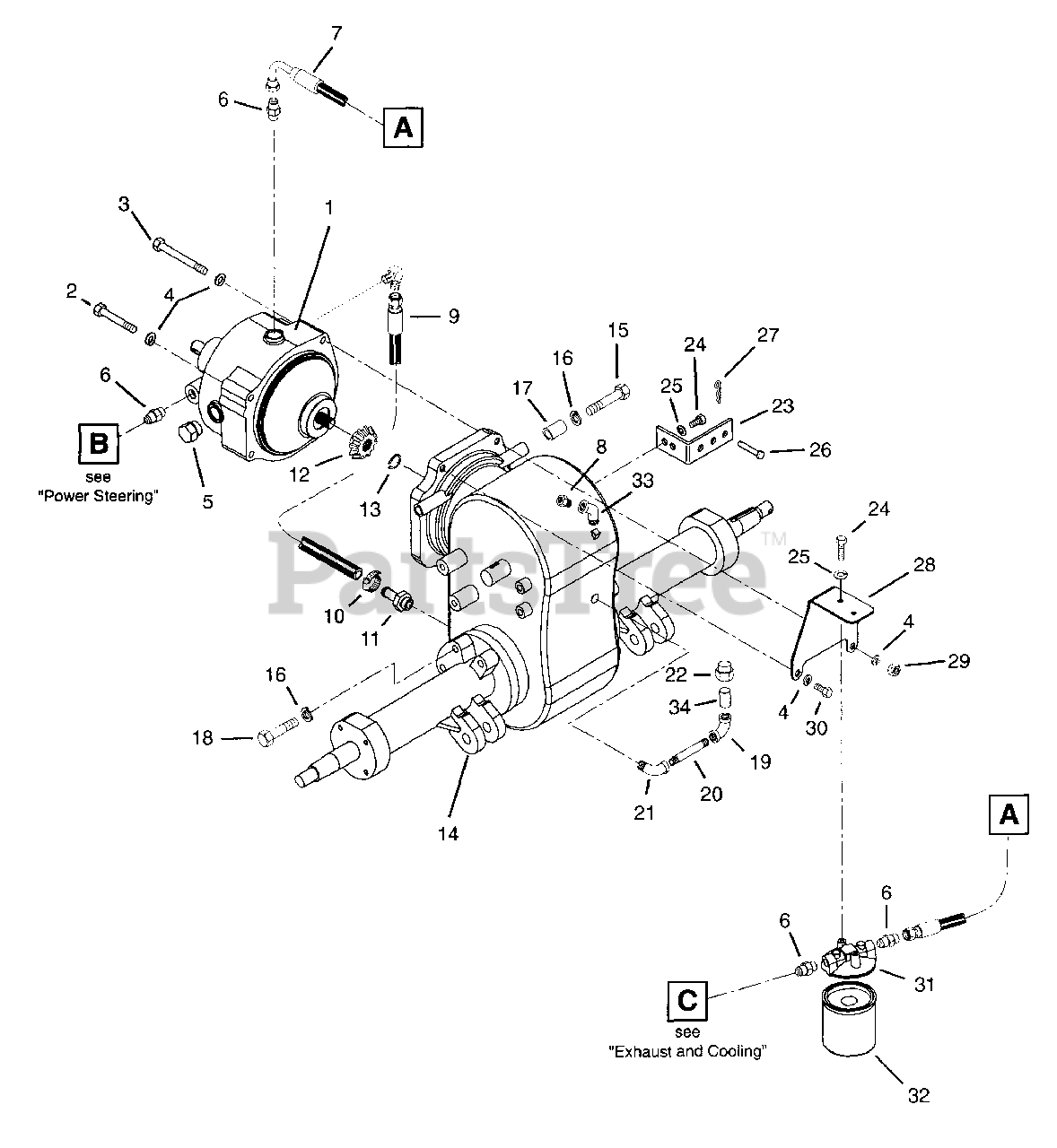

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Gravely 09068000

Hydro, Eaton M-11
(Superseded to 09094400)

$

$

Not available

2

Gravely 05961400

Bolt-Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

3

Gravely 05911900

Bolt-Hex .38-36 x 3.50 Grade 5
(Superseded to 05967800)

$

$

Not available

4

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

5

Gravely 07050100

Plug, 7/8-14 O-Ring

$

$

Not available

6

Gravely 07017500

Adapter-Pipe

$12.99

$

In Stock, only 1 left!

0

7

Gravely 09072600

Assembly, Hydraulic Hose

$

$

Not available

8

Gravely 07050600

Plug, Breather 3/8"

$

$

Not available

9

Gravely 09072500

Assembly, Hydraulic Hose

$

$

Not available

10

Gravely 06923500

Clamp, .88 Dia. Hose

$2.49

$

In Stock, Qty 6

0

11

Gravely 07020300

Fitting, Adapter .88-14

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 09053200

Gear, Pinion

$

$

Not available

13

Gravely 05711900

Ring-Retaining-External .375 x .025

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09068100

Transaxle, Peerless

$1959.99

$

Usually ships in 4-12 days

0

15

Gravely 05966600

Bolt-Hex .50-13 x 2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

16

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 10

0

17

Gravely 09073900

Spacer, Transmission Mount

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$5.49

$

In Stock, Qty 8

0

19

Gravely 07023500

Elbow .375-18

$

$

Not available

20

Gravely 09304100

Nipple

$

$

Not available

21

Gravely 07024200

Elbow .38 x 90

$

$

Not available

22

Gravely 03563600

Pipe Cap

$

$

Not available

23

Gravely 09074900

Plate, Shift

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

25

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

26

Gravely 06811500

Pin, Clevis .25 x 1.75
(Superseded to 06814600)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 06702000

Pin-Hair-Internal .08 x .18 x 1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 09074300

Bracket, Oil Filter Mount

$

$

Not available

29

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

31

Gravely 09072100

Filter Head

$62.99

$

Usually ships in 4-12 days

0

32

Gravely 09072000

Filter

$35.99

$

Usually ships in 4-12 days

0

33

Gravely 07052800

Street Elbow, 45 Degree

$

$

Not available

34

Gravely 02749600

Nipple

$9.99

$

Usually ships in 4-12 days

0
