990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) WIRING DIAGRAM - DIESEL Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

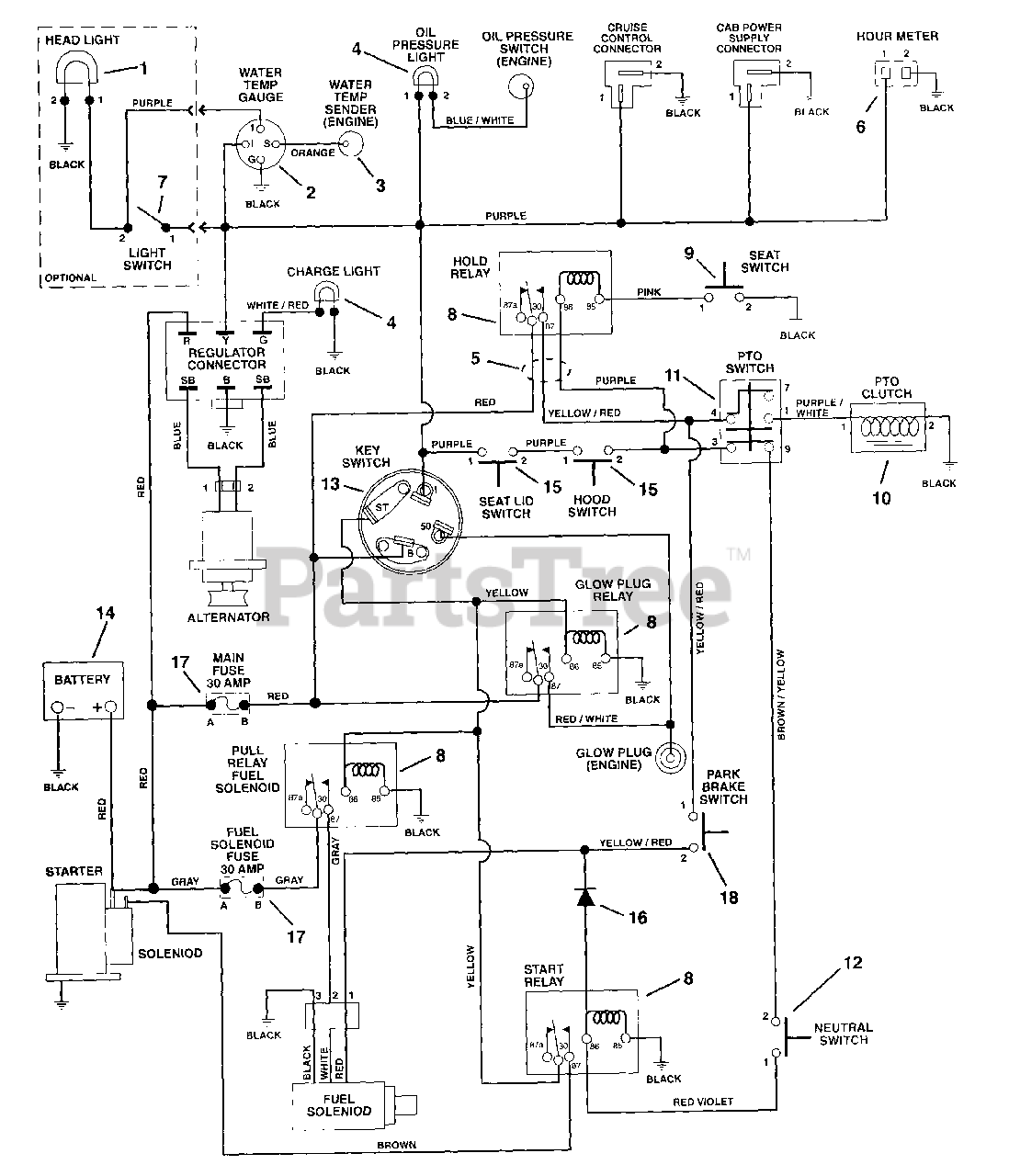

WIRING DIAGRAM - DIESEL Parts Diagram

  • Title

1

Gravely 08969000

HEADLAMP,3X5 HALOGEN

$

$

Not available

2

Gravely 09080200

GAUGE, TEMPERATURE

$102.99

$

Usually ships in 4-12 days

0

3

Gravely 09058800

TEMPERATURE SENDER

$111.99

$

Usually ships in 4-12 days

0

4

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$7.99

$

In Stock, Qty 8

0

5

Gravely 09082000

HARNESS, WIRING

$

$

Not available

6

Gravely 03492700

HOUR METER
(Superseded to 09497400)

$25.99

$

In Stock, Qty 11

0

7

Gravely 03656800

SWITCH - LIGHT

$

$

Not available

8

Gravely 03042800

RELAY
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

9

Gravely 03490500

SEAT SWITCH

$16.99

$

In Stock, only 2 left!

0

10

Gravely 09072200

ELECTRIC CLUTCH

$874.99

$

Usually ships in 4-12 days

0

11

Gravely 00552100

MOUNT PLATE, TRANSAXLE RH

$

$

Not available

12

Gravely 01526100

SWITCH, NEUTRAL START N.O.

$

$

Not available

13

Gravely 09056700

SWITCH, IGNITION (DIESEL)
(Superseded to 00168400)

Note: (Diesel)

$58.99

$

In Stock, only 4 left!

0

14

Gravely 04202200

BATTERY
(Superseded to 02078500)

$

$

Not available

15

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 16

0

16

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

Note: (Included with Harness)

$29.99

$

In Stock, only 3 left!

0

17

Gravely 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 03095700

SWITCH, INTERLOCK NC

$9.99

$

Usually ships in 4-12 days

0
