990010 - Simplicity 12" Tiller Attachment Tiller Group - 12" (3552I02) Parts Diagram

12" Tiller Attachment

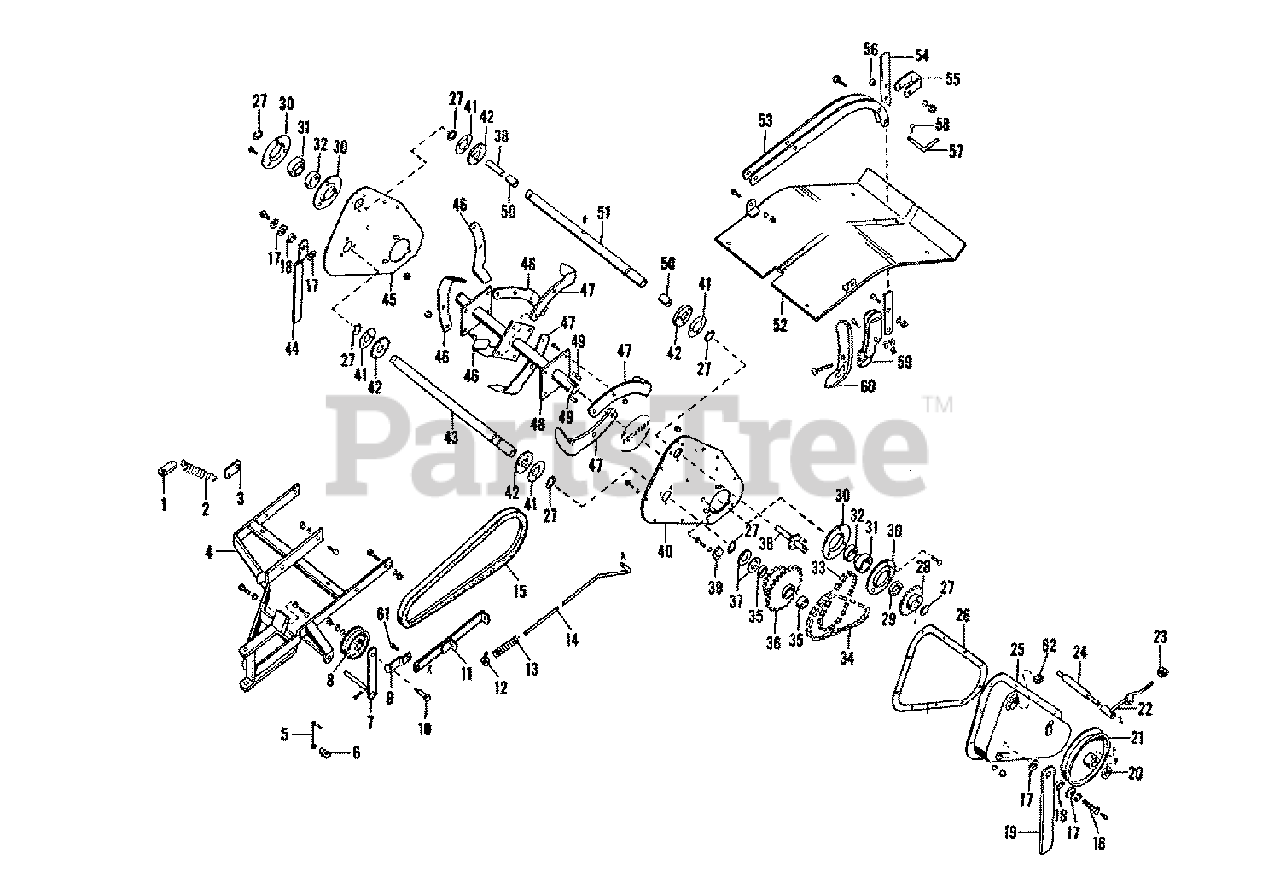

Tiller Group - 12" (3552I02) Parts Diagram

  • Title

1

Simplicity 8151036

HOLDER, Spring (Upper)

$

$

Not available

2

Simplicity 8111047

SPRING

$

$

Not available

3

Simplicity 8151035

HOLDER, Spring (Lower)

$

$

Not available

4

Simplicity 105019

FRAME ASSEMBLY

$

$

Not available

5

Simplicity 8161158

BELT, Stop

$

$

Not available

6

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

7

Simplicity 105056

LEVER ASSEMBLY, Idler

$

$

Not available

8

Simplicity 2156124SM

PULLEY ASSEMBLY, Idler

$

$

Not available

9

Simplicity 8151028

EXTENSION, Idler Lever

$

$

Not available

10

Simplicity 8151059

IDLER PULLEY, Pin

$

$

Not available

11

Simplicity 1729265SM

GUIDE ASSEMBLY, Rod

$41.99

$

Usually ships in 2-12 days

0

12

Simplicity 1729276SM

SET, Collar

$

$

Not available

13

Simplicity 1729277SM

SPRING

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 8151050

IDLER CLUTCH, Rod

$

$

Not available

15

Simplicity 8301018

V" BELT, 56" Long`

$

$

Not available

16

Simplicity 105054

BOLT

$

$

Not available

17

Simplicity 2105010

WASHER

$

$

Not available

18

Simplicity 2105051

SPACER

$

$

Not available

19

Simplicity 105053

STAND, L.H.

$

$

Not available

20

Simplicity 1729254SM

COLLAR
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

21

Simplicity 8151025

SHEAVE, Drive

$

$

Not available

22

Simplicity 8061505

LEVER ASSEMBLY, Clutch

$

$

Not available

23

Simplicity 1729255SM

BALL, Lever

$12.99

$

In Stock, only 1 left!

0

24

Simplicity 8151054

CLUTCH LEVER, Stud

$

$

Not available

25

Simplicity 105015

GUARD ASSEMBLY

$

$

Not available

26

Snapper 2105016SM

GASKET

$

$

Not available

27

Simplicity 8151063

RING, Snap

$

$

Not available

28

Simplicity 8151022

SPROCKET, Driven

$

$

Not available

29

Simplicity 8151055

SPACER, Sprocket

$

$

Not available

30

Simplicity 8151072

FLANGE, Bearing

$

$

Not available

31

Simplicity 1729268SM

BEARING

$55.99

$

Usually ships in 2-12 days

0

32

Simplicity 1729269

COLLAR, Bearing

$

$

Not available

33

Simplicity 105055

CHAIN, Countershaft

$

$

Not available

34

Simplicity 2178174SM

ROTOR, Chain

$86.99

$

Usually ships in 2-12 days

0

35

Simplicity 2105058SM

BUSHING

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 105040

SPROCKET ASSEMBLY

$

$

Not available

37

Simplicity 2105050

WASHER, Thrust

$

$

Not available

38

Simplicity 105043

SHAFT ASSEMBLY, Drive

$

$

Not available

39

Simplicity 106006

TIGHTENER, Chain

$

$

Not available

40

Simplicity 105008

PLATE, L.H. Side

$

$

Not available

41

Simplicity 105049

SHIM

$

$

Not available

42

Simplicity 105048

CLAMP, Plate

$

$

Not available

43

Simplicity 105017

SHAFT, Counter

$

$

Not available

44

Simplicity 105052

STAND, R.H.

$

$

Not available

45

Simplicity 105014

PLATE ASSEMBLY, R.H.

$

$

Not available

46

Simplicity 1729271SM

TINE BLADE, L.H.

$

$

Not available

47

Simplicity 1729272SM

TINE BLADE, R.H.

$28.99

$

Usually ships in 2-12 days

0

48

Simplicity 105060

TINE SHAFT ASSEMBLY

$

$

Not available

49

Simplicity 8151061

KEY

$

$

Not available

50

Simplicity 8191044

BUSHING

$

$

Not available

51

Simplicity 105046

HOUSING, Drive Shaft

$

$

Not available

52

Simplicity 105035

DEFLECTOR ASSEMBLY

$

$

Not available

53

Simplicity 105001

BEAM, Depth Gauge

$

$

Not available

54

Simplicity 105002

BAR, Depth

$

$

Not available

55

Simplicity 105005

GUIDE

$

$

Not available

56

Simplicity 105006

SPACER

$

$

Not available

57

Simplicity 105004

PIN

$

$

Not available

58

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

59

Simplicity 8271503

HOLDER ASSEMBLY, Tool

$

$

Not available

60

Simplicity 105003

SHOE, Depth

$

$

Not available

61

Simplicity 8151038

SCREW, Extension

$

$

Not available

62

Simplicity 105059

SEAL

$

$

Not available
