990011 - Simplicity 16" Tiller Attachment Tiller Group - 16" (3552I01) Parts Diagram

16" Tiller Attachment

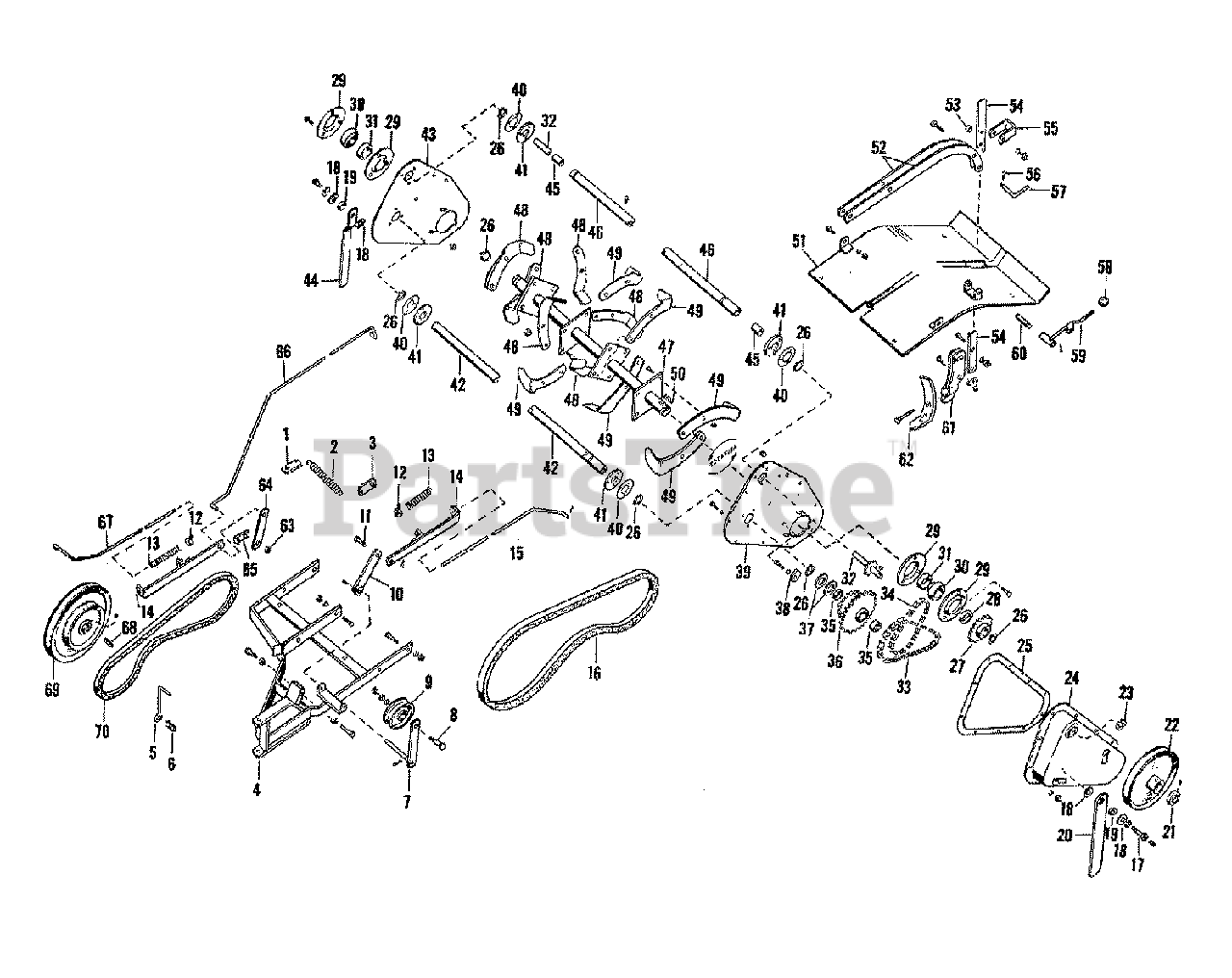

Tiller Group - 16" (3552I01) Parts Diagram

  • Title

1

Simplicity 8151036

SPRING, Holder, Upper

$

$

Not available

2

Simplicity 8011158

SPRING

$

$

Not available

3

Simplicity 8151035

SPRING, Holder, Lower

$

$

Not available

4

Simplicity 105020

FRAME ASSEMBLY

$

$

Not available

5

Simplicity 8161158

BELT, Stop

$

$

Not available

6

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

7

Simplicity 8151502

LEVER ASSEMBLY, Idler

$

$

Not available

8

Simplicity 8051037

IDLER PULLEY, Pin

$

$

Not available

9

Simplicity 2156124SM

PULLEY ASSEMBLY, Idler

$

$

Not available

10

Simplicity 8151503

LEVER ASSEMBLY, Idler Clutch

$

$

Not available

11

Simplicity 8151038

SCREW

$

$

Not available

12

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

13

Simplicity 1729277SM

SPRING

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 1729265SM

GUIDE ASSEMBLY, Rod

$41.99

$

Usually ships in 2-12 days

0

15

Simplicity 8151051

IDLER CLUTCH, Rod

$

$

Not available

16

Simplicity 8151018

V" BELT, 58" Long`

$

$

Not available

17

Simplicity 105054

BOLT

$

$

Not available

18

Simplicity 2105010

WASHER

$

$

Not available

19

Simplicity 2105051

SPACER

$

$

Not available

20

Simplicity 105053

STAND, L.H.

$

$

Not available

21

Simplicity 1729254SM

COLLAR
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

22

Simplicity 8151020

DRIVE, Sheave

$

$

Not available

23

Simplicity 105059

SEAL

$

$

Not available

24

Simplicity 105015

GUARD ASSEMBLY

$

$

Not available

25

Snapper 2105016SM

GASKET

$

$

Not available

26

Simplicity 8151063

SNAP, Ring

$

$

Not available

27

Simplicity 8151022

DRIVEN, Sprocket

$

$

Not available

28

Simplicity 8151055

SPROCKET, Spacer

$

$

Not available

29

Simplicity 8151072

BEARING, Flange

$

$

Not available

30

Simplicity 1729268SM

BEARING, Flange

$55.99

$

Usually ships in 2-12 days

0

31

Simplicity 1729269

BEARING, Collar

$

$

Not available

32

Simplicity 105045

DRIVE, Collar

$

$

Not available

33

Simplicity 2178174SM

DRIVE, Shaft Assembly

$86.99

$

Usually ships in 2-12 days

0

34

Simplicity 105055

CHAIN, Rotor #50 - 27 1/2" Long

$

$

Not available

35

Simplicity 2105058SM

CHAIN, Countershaft #40-24" Long

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 105040

BUSHING

$

$

Not available

37

Simplicity 2105050

SPROCKET ASEEMBLY

$

$

Not available

38

Simplicity 106006

WASHER, Thrust

$

$

Not available

39

Simplicity 105008

CHAIN, Tightener

$

$

Not available

40

Simplicity 105049

PLATE, L.H. Side

$

$

Not available

41

Simplicity 105048

SHIM

$

$

Not available

42

Simplicity 105018

CLAMP, Plate

$

$

Not available

43

Simplicity 105014

COUNTER, Shaft

$

$

Not available

44

Simplicity 105052

PLATE ASSEMBLY, R.H.

$

$

Not available

45

Simplicity 8191044

STAND, R.H.

$

$

Not available

46

Simplicity 105047

BUSHING

$

$

Not available

47

Simplicity 105062

DRIVE SHAFT, Housing

$

$

Not available

48

Simplicity 1729271SM

TINE SHAFT ASSEMBLY

$

$

Not available

49

Simplicity 1729272SM

TINE BLADE, L.H.

$28.99

$

Usually ships in 2-12 days

0

50

Simplicity 8151061

TINE BLADE, R.H.

$

$

Not available

51

Simplicity 105037

KEY

$

$

Not available

52

Simplicity 105001

DEFLECTOR ASSEMBLY

$

$

Not available

53

Simplicity 105006

DEPTH GAUGE, Beam

$

$

Not available

54

Simplicity 105002

SPACER

$

$

Not available

55

Simplicity 105005

DEPTH, Bar

$

$

Not available

56

Simplicity 1918196SM

GUIDE
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

57

Simplicity 105004

CLIP SPRING

$

$

Not available

58

Simplicity 1729255SM

PIN

$12.99

$

In Stock, only 1 left!

0

59

Simplicity 8151504

LEVER, Ball

$

$

Not available

60

Simplicity 8151053

LEVER ASSEMBLY, clutch

$

$

Not available

61

Simplicity 8271503

PIN, Lever Pivot

$

$

Not available

62

Simplicity 105003

HOLDER ASSEMBLY, Tool

$

$

Not available

63

Simplicity 1663752SM

SHOE, Depth

$5.99

$

In Stock, only 4 left!

0

64

Simplicity 8051030

BUSHING

$

$

Not available

65

Simplicity 8021121

LEVER, Lower Clutch

$

$

Not available

66

Simplicity 8152009

LEVER, Stop

$

$

Not available

67

Simplicity 8151069

IDLER CLUTCH, Rod

$

$

Not available

68

Simplicity 8061104

LOWER IDLER CLUTCH, Rod

$

$

Not available

69

Simplicity 8153505

KEY

$

$

Not available

70

Simplicity 8151019

SHEAVE ASSEMBLY, Transmission

$

$

Not available

71

FITTING, Grease, #1641

$

$

Not available

72

FITTING, Grease, #1911

$

$

Not available
