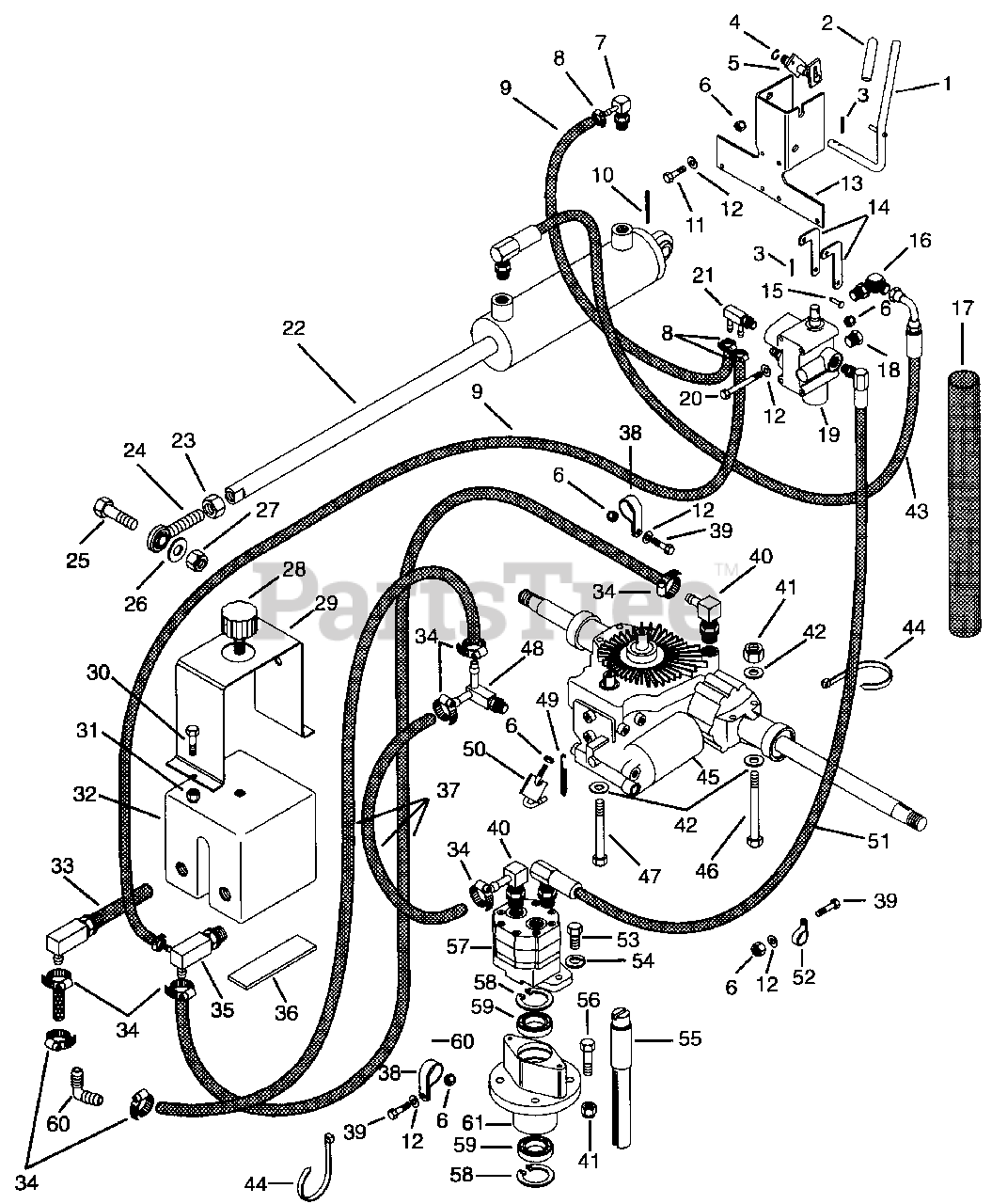

990012 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) HYDRAULIC SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 053242

Weldment, Lever
(Superseded to 09035300)

$

$

Not available

2

Gravely 043196

Grip, PTO Lever
(Superseded to 07528200)

$9.99

$

Usually ships in 4-12 days

0

3

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

4

Gravely 014981

Ring-Retaining-External .392 x .042

$

$

Not available

5

Gravely 053243

Weldment, Linkage
(Superseded to 09035400)

$

$

Not available

6

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 045144

Fitting Adapter .562-18
(Superseded to 07019700)

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 052577

Clamp-Hose .78 x .44 x 1.17
(Superseded to 06922100)

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 035636

Hose, Hydraulic
(Superseded to 00921600)

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 06712600

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 7

0

11

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

12

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

13

Gravely 053240

Bracket
(Superseded to 08993553)

$

$

Not available

14

Gravely 09065000

Lift Link

$7.99

$

Usually ships in 4-12 days

0

15

Gravely 06815100

Pin-Clevis .188 x 1.00
(Superseded to 06810100)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 040723

Adapter 2503-6-4
(Superseded to 08936400)

$

$

Not available

17

Gravely 050782

Sleeve, Protective
(Superseded to 09011400)

$

$

Not available

18

Gravely 021716

Plug .44-20
(Superseded to 07021600)

$

$

Not available

19

Gravely 018825

Valve, Hydraulic
(Superseded to 08901100)

$

$

Not available

20

Gravely 05966300

Bolt-Hex .25-20 x 3.00
(Superseded to 05902128)

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 051178

Fitting-Pipe .563-18
(Superseded to 07018100)

$13.99

$

Usually ships in 4-12 days

0

22

Gravely 050128

Cylinder
(Superseded to 08994300)

$

$

Not available

23

Gravely 06539500

Nut-Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 044950

Assembly, Rod End (Right Hand)
(Superseded to 08959600)

Note: (Right Hand)

$38.99

$

Usually ships in 4-12 days

0

25

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

26

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 13

0

27

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

28

Gravely 050507

Cap, Filter
(Superseded to 08996400)

$35.99

$

In Stock, only 1 left!

0

29

Gravely 050525

Strap, Tank
(Superseded to 08997100)

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

31

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 050272

Tank Hydraulic
(Superseded to 09032900)

$

$

Not available

33

Gravely 050506

Fitting, Filter
(Superseded to 08996300)

$

$

Not available

34

Gravely 021247

Clamp, .88 Dia. Hose
(Superseded to 06923500)

$1.99

$

Usually ships in 4-12 days

0

35

Gravely 049068

Fitting with O-Ring 88-14 x .268
(Superseded to 07020100)

$

$

Not available

36

Gravely 031884

Pad, Gas Tank
(Superseded to 03301900)

$

$

Not available

37

Gravely 046379

Hose
(Superseded to 00915100)

$3.49

$

In Stock, Qty 20+

0

38

Gravely 050395

Clamp, Steel 1.0
(Superseded to 06917900)

$14.99

$

Usually ships in 4-12 days

0

39

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

40

Gravely 050192

Fitting
(Superseded to 03450600)

$32.99

$

Usually ships in 4-12 days

0

41

Gravely 06529600

Nut-Locking-Nylon .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 06436200

Washer
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 050524

Assembly, Pressure Hose
(Superseded to 08997000)

$188.99

$

Usually ships in 4-12 days

0

44

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

45

Gravely 047195

Filter, Oil
(Superseded to 03467800)

$60.99

$

In Stock, only 1 left!

0

46

Gravely 05946800

Bolt-Hex .38-16 x 4.00 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

47

Gravely 05961100

Bolt-Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

48

Gravely 051637

Fitting-Pipe .875-14
(Superseded to 07018000)

$

$

Not available

49

Gravely 034385

Spring-Tension .061 x .50 x 3.5
(Superseded to 08331900)

$30.99

$

In Stock, only 1 left!

0

50

Gravely 045404

Weldment Lever
(Superseded to 08968500)

$14.99

$

Usually ships in 4-12 days

0

51

Gravely 050518

Assembly, Pressure Hose
(Superseded to 08996900)

$171.99

$

Usually ships in 4-12 days

0

52

Gravely 050394

Clamp, Cushioned Steel
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

53

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

54

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

55

Gravely 049354

Shaft
(Superseded to 08989300)

$387.99

$

Usually ships in 4-12 days

0

56

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

57

Gravely 051631

Pump, Hydraulic
(Superseded to 59001900)

$

$

Not available

58

Gravely 022497

Ring-Retaining-Internal 2.210 x .062
(Superseded to 05714200)

$2.99

$

In Stock, Qty 7

0

59

Gravely 032050

Bearing-Ball 1.0 x 2.0 x .56
(Superseded to 05416000)

$14.99

$

Usually ships in 4-12 days

0

60

Gravely 053232

Elbow-Barbed .63 x .63
(Superseded to 07019000)

$5.99

$

Usually ships in 4-12 days

0

61

Gravely 049353

Housing
(Superseded to 08989200)

$36.99

$

Usually ships in 4-12 days
