990012 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) PARKING BRAKE Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

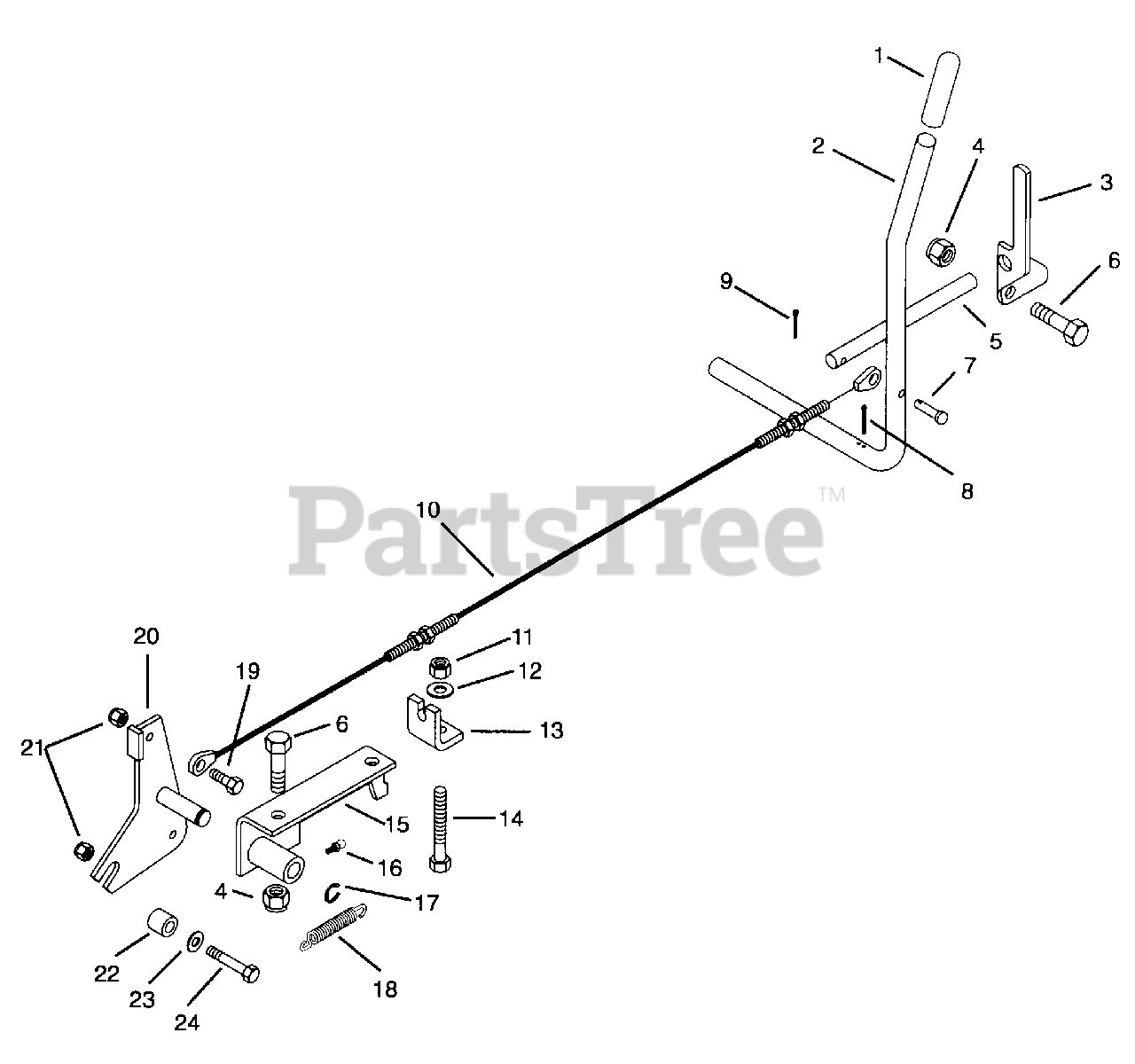

PARKING BRAKE Parts Diagram

  • Title

1

Gravely 024452

Grip, Handle
(Superseded to 07522000)

$

$

Not available

2

Gravely 045174

Lever, Brake
(Superseded to 08965253)

$31.99

$

Usually ships in 4-12 days

0

3

Gravely 020772

Arm, Parking Brake Lock
(Superseded to 08859800)

$

$

Not available

4

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 045910

Rod, Brake Lock
(Superseded to 08972200)

$39.99

$

Usually ships in 4-12 days

0

6

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06814600

Pin-Clevis .25 x 1.75

$3.99

$

In Stock, Qty 7

0

8

Gravely 06707000

Pin-Cotter .094 x 1.00
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

9

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

10

Gravely 048992

Cable, Brake
(Superseded to 06928800)

$75.99

$

Usually ships in 4-12 days

0

11

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

13

Gravely 045383

Bracket, Cable
(Superseded to 08968400)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 05946800

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

15

Gravely 052065

Weldment, Brake Pivot
(Superseded to 09009000)

$

$

Not available

16

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

17

Gravely 014981

Ring-Retaining-External .392 x .042

$

$

Not available

18

Gravely 047314

Spring-Tension .093 x .75 x 4.0
(Superseded to 08343000)

$14.99

$

In Stock, only 1 left!

0

19

Gravely 05946800

Bolt-Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

20

Gravely 051665

Weldment, Brake Arm
(Superseded to 09006600)

$

$

Not available

21

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 051358

Bushing, Sleeve .260 x .500 x .750
(Superseded to 08904700)

$

$

Not available

23

05437300

Washer-Flat-Steel .281 x .620 x .065

$

$

Not available

24

Gravely 05964700

Bolt-Hex .25-20 x 1.75 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 3 left!

0
