990014 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) FRONT AND REAR WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

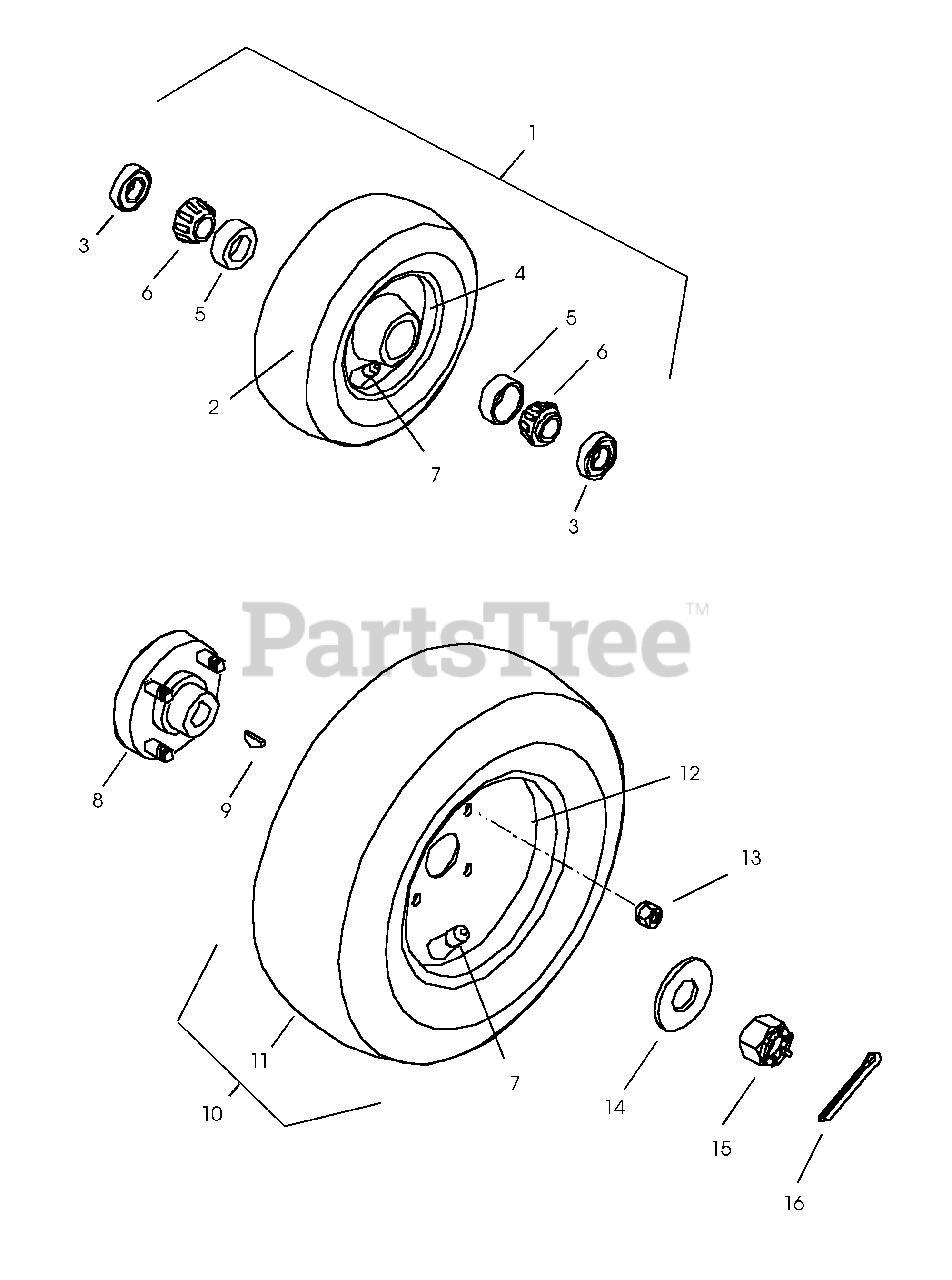

FRONT AND REAR WHEELS Parts Diagram

  • Title

1

Gravely 07147600

TIRE/WHEEL ASSY, 4.80-8

Note: (Contains items 2-6)

$

$

Not available

2

Gravely 07148200

TIRE, 4.8-8
(Superseded to 07147600)

$

$

Not available

3

Gravely 038920

SEAL
(Superseded to 20655500)

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 07148100

WHEEL, 8X7

$

$

Not available

5

Gravely 038109

BRG-CUP1.980X.420
(Superseded to 05407000)

$18.99

$

In Stock, Qty 20+

0

6

Gravely 038110

BRG-CONE 1.0X.58
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

7

Gravely 011191

VALVE STEM ASS'Y
(Superseded to 07520000)

$2.99

$

In Stock, only 1 left!

0

8

Gravely 09085800

ASSY, HUB W/ STUDS

$54.99

$

Usually ships in 4-12 days

0

9

Gravely 06600200

KEY-WDRF .25X1.00X.438 SAE15

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 07147700

TIRE/WHEEL ASSY 18X8.5-8

Note: (Contains items 11-12)

$

$

Not available

11

Gravely 07148000

TIRE, 18-8.5X8
(Superseded to 07147700)

$

$

Not available

12

Gravely 07148300

ASSY, WHEEL 3.75X8

$

$

Not available

13

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 06528300

NUT-HEX-SL .75-20

$

$

Not available

16

Gravely 06712600

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 18

0
