990014 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) FUEL, ENGINE AND EXHAUST SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

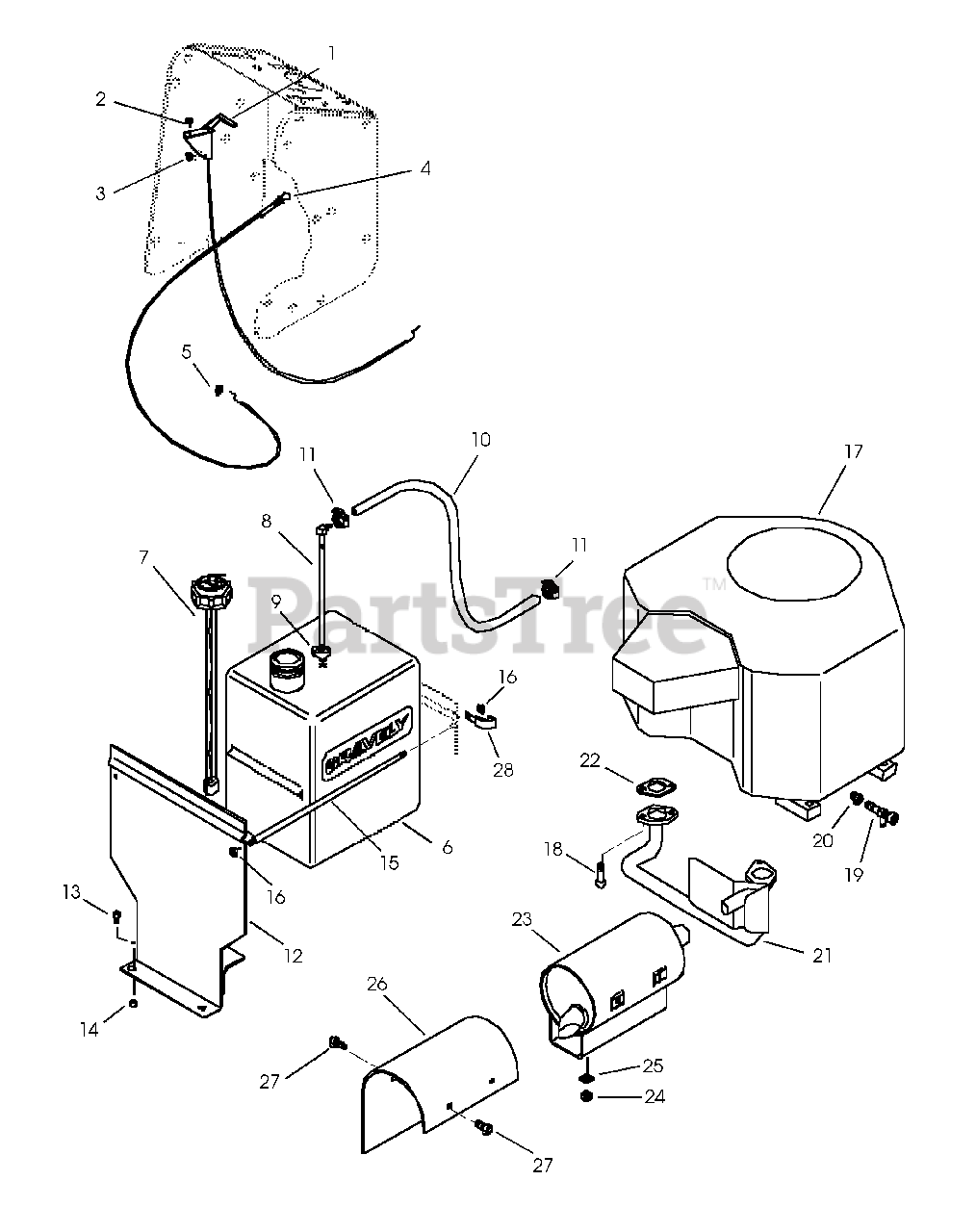

FUEL, ENGINE AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 06938500

THROTTLE CABLE

$

$

Not available

2

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06940600

CABLE, CONTROL

Note: (Model 014)

$

$

Not available

Gravely 06940500

CABLE, CONTROL

Note: (Model 015)

$

$

Not available

5

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 047612

TANK,FUEL
(Superseded to 08983000)

$

$

Not available

7

Gravely 047615

GAUGE,FUEL
(Superseded to 08983200)

$

$

Not available

8

Gravely 047614

FTG,TANK
(Superseded to 08983100)

$35.99

$

Usually ships in 4-12 days

0

9

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 09089300

GAS LINE HOSE 1/4"X52"

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

12

Gravely 049296

WLDMT,TANK BRACKET
(Superseded to 08987900)

$

$

Not available

13

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 049359

ROD, TANK
(Superseded to 09037800)

$30.99

$

Usually ships in 4-12 days

0

16

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 08248200

ENGINE, KOHLER CV20 PS-65542

Note: (Model 014)

$

$

Not available

Gravely 08250800

ENGINE KOHLER 25 HP COMMAND

Note: (Model 015)

$

$

Not available

18

Gravely 05931800

SCR-SKH M8 X 1.25X20

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

20

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 09065500

MANIFOLD, KOHLER CV18-25
(Superseded to 07067900)

$

$

Not available

22

Gravely 044390

GASKET,EXHAUST
(Superseded to 08824700)

$23.99

$

In Stock, only 4 left!

0

23

Gravely 09065600

MUFFLER, PM-320

Note: (Includes 09066300 Heat Shield)

$

$

Not available

24

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 09066300

HEAT SHIELD

Note: (Included with 09065600 Muffler)

$

$

Not available

27

Gravely 05971300

BLT, HEX M5-.8X8MM YWZC

$

$

Not available

28

Gravely 044715

J-CLAMP
(Superseded to 06916000)

$2.99

$

Usually ships in 4-12 days

0
