990014 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) MAIN DRIVE Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

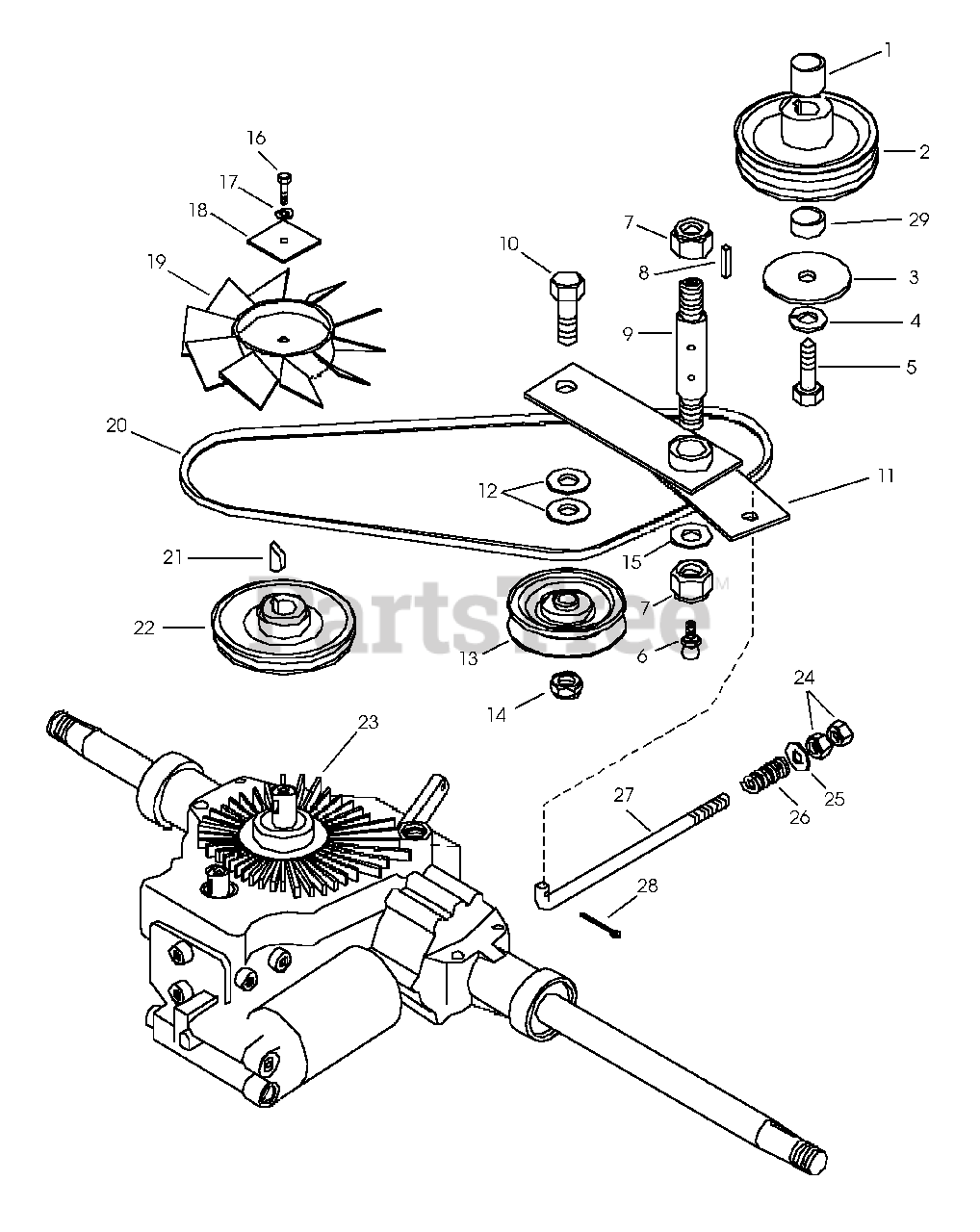

MAIN DRIVE Parts Diagram

  • Title

1

Gravely 051207

BUSH.,S1.13X1.38X1.25 ST
(Superseded to 08984200)

$

$

Not available

2

Gravely 049737

SHEAVE
(Superseded to 08992000)

Note: (Model 014)

$

$

Not available

Gravely 09078300

SHEAVE, ENGINE

Note: (Model 015)

$

$

Not available

3

Gravely 06426400

WSHR-SPECIAL .469X2.000X.250
(Superseded to 06443600)

$7.99

$

In Stock, Qty 20+

0

4

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 05958800

BLT-HEX .44-20X1.5 YWZC
(Superseded to 05902004)

$6.49

$

In Stock, Qty 10

0

6

Gravely 411010

FTG,LUBE 1/8
(Superseded to 07012500)

$4.99

$

In Stock, Qty 12

0

7

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 2 left!

0

8

Gravely 018345

KEY-SQ .248X1.25X.248
(Superseded to 06606900)

$2.99

$

In Stock, only 2 left!

0

9

Gravely 051886

PIN,PIVOT
(Superseded to 09008100)

$103.99

$

Usually ships in 4-12 days

0

10

Gravely 05967000

BLT-HEX .38-16X.50 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 049329

WLDMT,IDLER ARM
(Superseded to 08988400)

$

$

Not available

12

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 044518

PLY-V 4.00X.84
(Superseded to 07318000)

$46.99

$

Usually ships in 4-12 days

0

14

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

15

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

17

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

18

Gravely 046284

WSHR-FL-STL .265X1.75SQX.119
(Superseded to 06425800)

$

$

Not available

19

Gravely 044380

FAN
(Superseded to 09024700)

$

$

Not available

20

Gravely 034944

V-BELT, HA-RAW EDGE
(Superseded to 07220000)

$29.99

$

In Stock, Qty 6

0

21

Gravely 431787

KEY-WDRF .19X.63 HRD #61
(Superseded to 06609300)

$3.49

$

In Stock, only 2 left!

0

22

Gravely 049738

PULLEY,DRIVE
(Superseded to 08992100)

$

$

Not available

23

Gravely 09036700

TRANSAXLE, EATON #851-109

$

$

Not available

24

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 021506

SG-COMP .072X.561X2.50
(Superseded to 08329600)

$23.99

$

Usually ships in 4-12 days

0

27

Gravely 09037500

ROD, IDLER

$263.99

$

Usually ships in 4-12 days

0

28

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

29

Gravely 03593100

G-TAG,IDENTIFICATION

Note: (Model 015)

$

$

Not available
