990014 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) PTO DRIVE Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

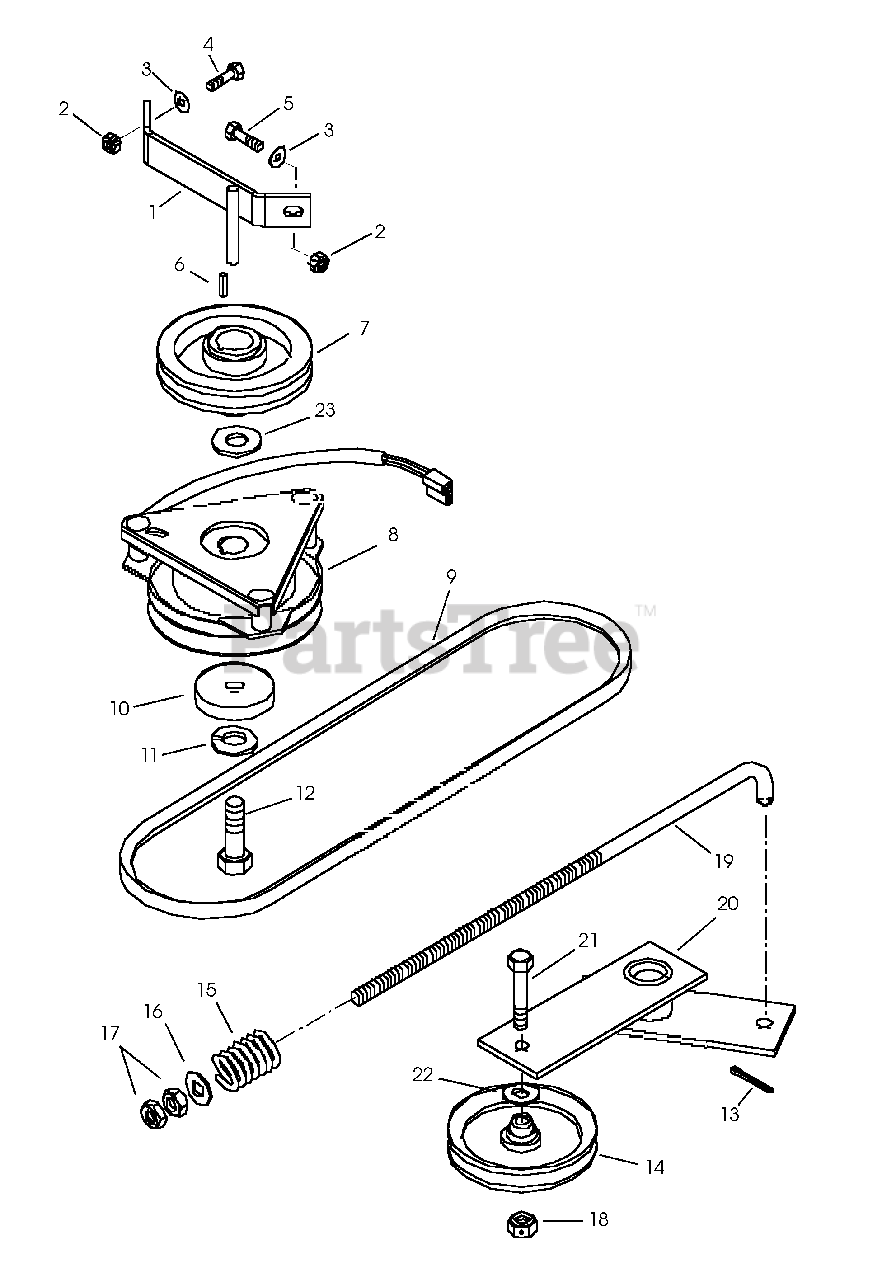

PTO DRIVE Parts Diagram

  • Title

1

Gravely 09069800

WLDMT, PTO CLUTCH STOP
(Superseded to 59002100)

Note: S/N 000101-000351

$73.99

$

Usually ships in 4-12 days

0

Gravely 09089200

WLDMT, PTO CLUTCH STOP
(Superseded to 09097251)

Note: S/N 000352 and up

$105.99

$

Usually ships in 4-12 days

0

2

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

6

Gravely 018345

KEY-SQ .248X1.25X.248
(Superseded to 06606900)

$2.99

$

In Stock, only 2 left!

0

7

Gravely 09078200

SHEAVE

$

$

Not available

8

Gravely 09068200

CLUTCH, ELECTRIC

$527.99

$

Usually ships in 4-12 days

0

9

Gravely 07233500

V-BELT, HB-WRAPPED

$56.99

$

In Stock, only 1 left!

0

10

Gravely 044379

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 05958800

BLT-HEX .44-20X1.5 YWZC
(Superseded to 05902004)

Note: S/N 000101-000351

$6.49

$

In Stock, Qty 10

0

Gravely 05967500

BLT-HEX .44-20X1.75 GR5 YWZC

Note: S/N 000352 and up

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

14

Gravely 021060

PLY-IDLER 4.00X.380
(Superseded to 07314800)

$40.99

$

In Stock, Qty 10

0

15

Gravely 021506

SG-COMP .072X.561X2.50
(Superseded to 08329600)

$23.99

$

Usually ships in 4-12 days

0

16

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09037600

ROD, IDLER

$

$

Not available

20

Gravely 049754

WLDMT,IDLER
(Superseded to 08992400)

$

$

Not available

21

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06309000

WSHR-FL-STL .390X.75X.125 YWZC

$

$

Not available

23

Gravely 02447600

SPACER 1.006X1.307X.500

Note: S/N 000352 and up

$25.99

$

Usually ships in 4-12 days

0
