990014 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) SULKY FRAME & SEAT Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

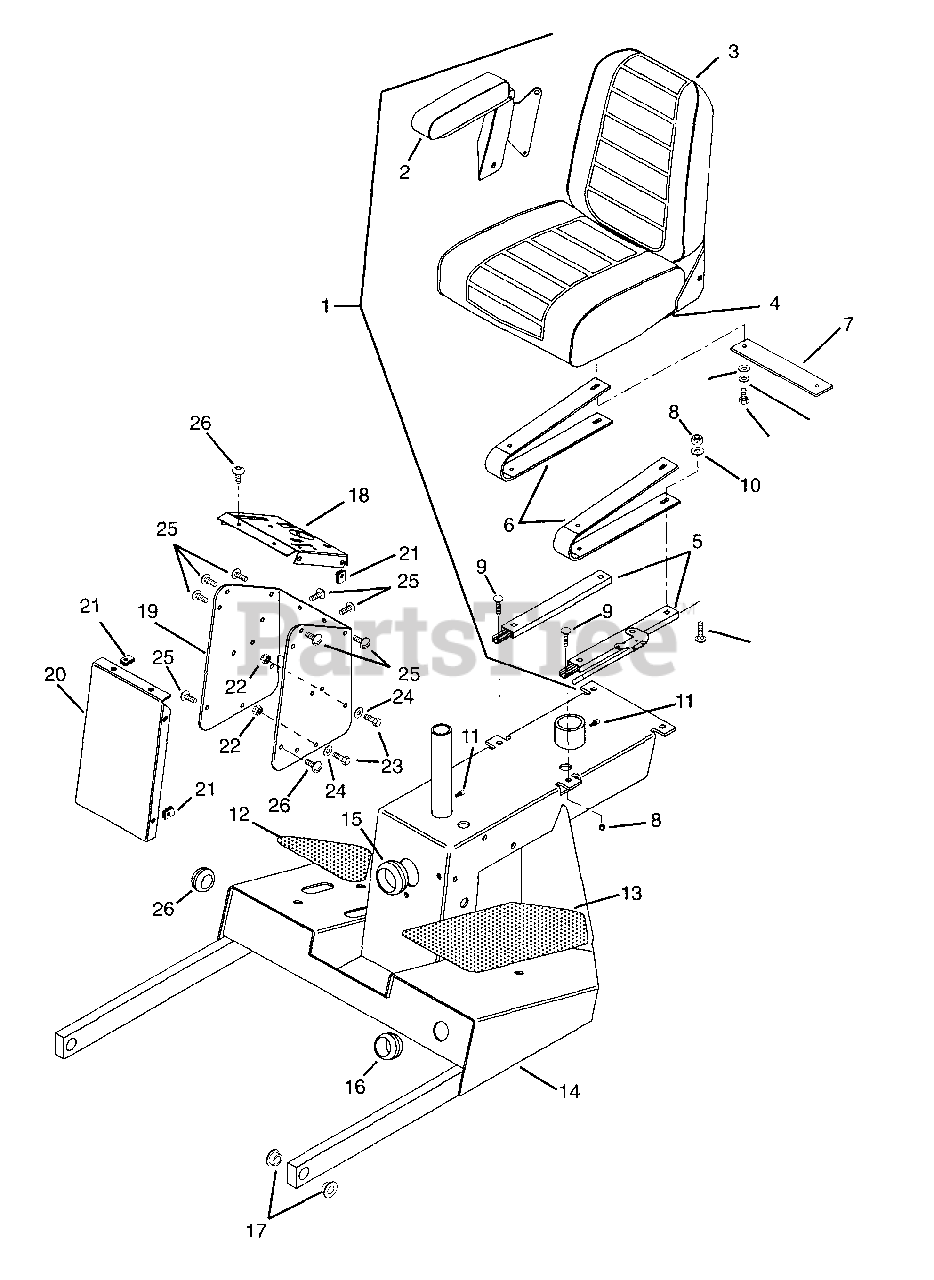

SULKY FRAME & SEAT Parts Diagram

  • Title

1

Gravely 09086300

ASSY, SEAT

Note: (Contains items 2-5)

$

$

Not available

2

Gravely 21512400

ARMREST, R.H.

$

$

Not available

Gravely 21512300

ARMREST, L.H. KIRKLAND GRAY

$

$

Not available

3

Gravely 21512100

CUSHION, BACK

$

$

Not available

4

Gravely 21512200

SEAT CUSHION W/ SWITCH

$330.99

$

Usually ships in 4-12 days

0

5

Gravely 03600800

SEAT SLIDES -(RAME TAK-3010-4)

$

$

Not available

6

Gravely 047528

SPRING, SEAT
(Superseded to 03486851)

$

$

Not available

7

Gravely 051278

BRKT,SEAT
(Superseded to 09004051)

$

$

Not available

8

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

12

Gravely 046238

CVR,FOOTBOARD R.H.
(Superseded to 08901700)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 046237

CVR,FOOTBOARD L.H.
(Superseded to 08984300)

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 050512

WLDMT,REAR FRAME
(Superseded to 08996800)

$

$

Not available

15

Gravely 051360

GRMT (2.50 HOLE, .187 MAT'L)
(Superseded to 07536600)

$

$

Not available

16

Gravely 046396

GRMT 1.50X1.75X2.12
(Superseded to 07532300)

$

$

Not available

17

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

18

Gravely 09084700

PANEL, INSTRUMENT

$

$

Not available

19

Gravely 09084800

SUPPORT, INSTRUMENT PANEL

$51.99

$

Usually ships in 4-12 days

0

20

Gravely 09084900

PANEL, FRONT

$

$

Not available

21

Gravely 032369

NUT-RTNR .25-20X.56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

24

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$1.49

$

In Stock, only 3 left!

0

26

Gravely 046397

GRMT 1.25X1.5X1.81
(Superseded to 07532400)

$

$

Not available
