990015 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000676 & Above) Front And Rear Wheels Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

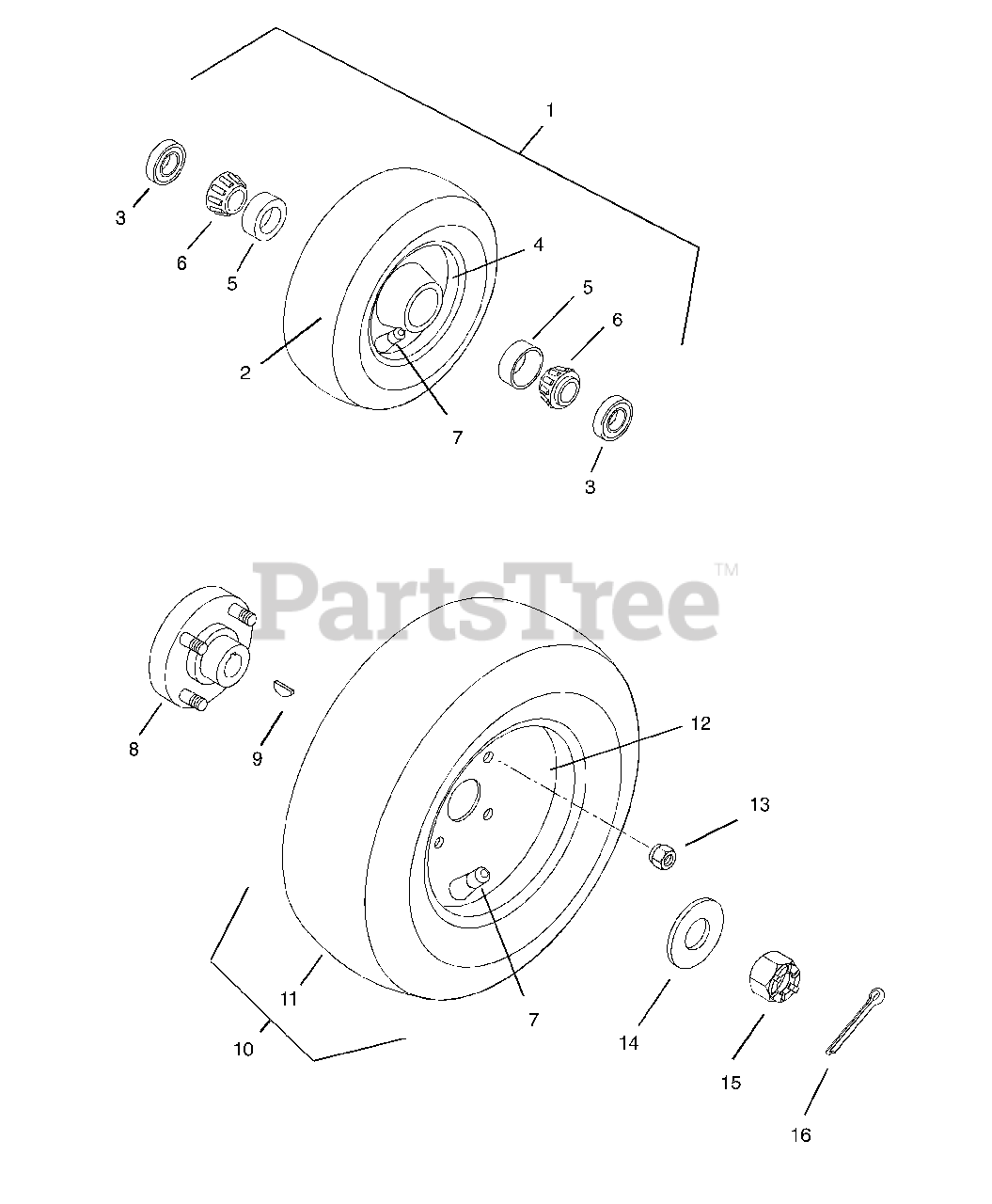

Front And Rear Wheels Parts Diagram

  • Title

1

Gravely 07147600

Tire/Wheel Assembly 4.80-8

Note: (Contains Items 2-6)

$

$

Not available

2

Gravely 07148200

Tire 4.8-8
(Superseded to 07147600)

$

$

Not available

3

Gravely 038920

Seal
(Superseded to 20655500)

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 07148300

Wheel Assembly 3.75 x 8

$

$

Not available

5

Gravely 038109

Bearing-Cup 1.980 x 4.20
(Superseded to 05407000)

$18.99

$

In Stock, Qty 20+

0

6

Gravely 038110

Bearing-Cone 1.0 x .58
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

7

Gravely 011191

Valve Stem Assembly
(Superseded to 07520000)

$2.99

$

In Stock, only 4 left!

0

8

Gravely 09085800

Hub w/studs

$54.99

$

Usually ships in 4-12 days

0

9

Gravely 06600200

Key-Woodruff .25 x 1.0 x 7.00

$3.99

$

In Stock, only 2 left!

0

10

Gravely 07147700

Tire/Wheel Assembly 8.50-8 x 18

Note: (Contains Items 11-12)

$

$

Not available

11

Gravely 07148000

Tire 18-8.5x8
(Superseded to 07147700)

$

$

Not available

12

Gravely 07148100

Wheel 8 x 7

$

$

Not available

13

Gravely 06535000

Nut-Lug .50-20
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 06528300

Nut-Hex-Slotted .75-20

$

$

Not available

16

Gravely 06712600

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 12

0
