990015 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000676 & Above) PTO Drive Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

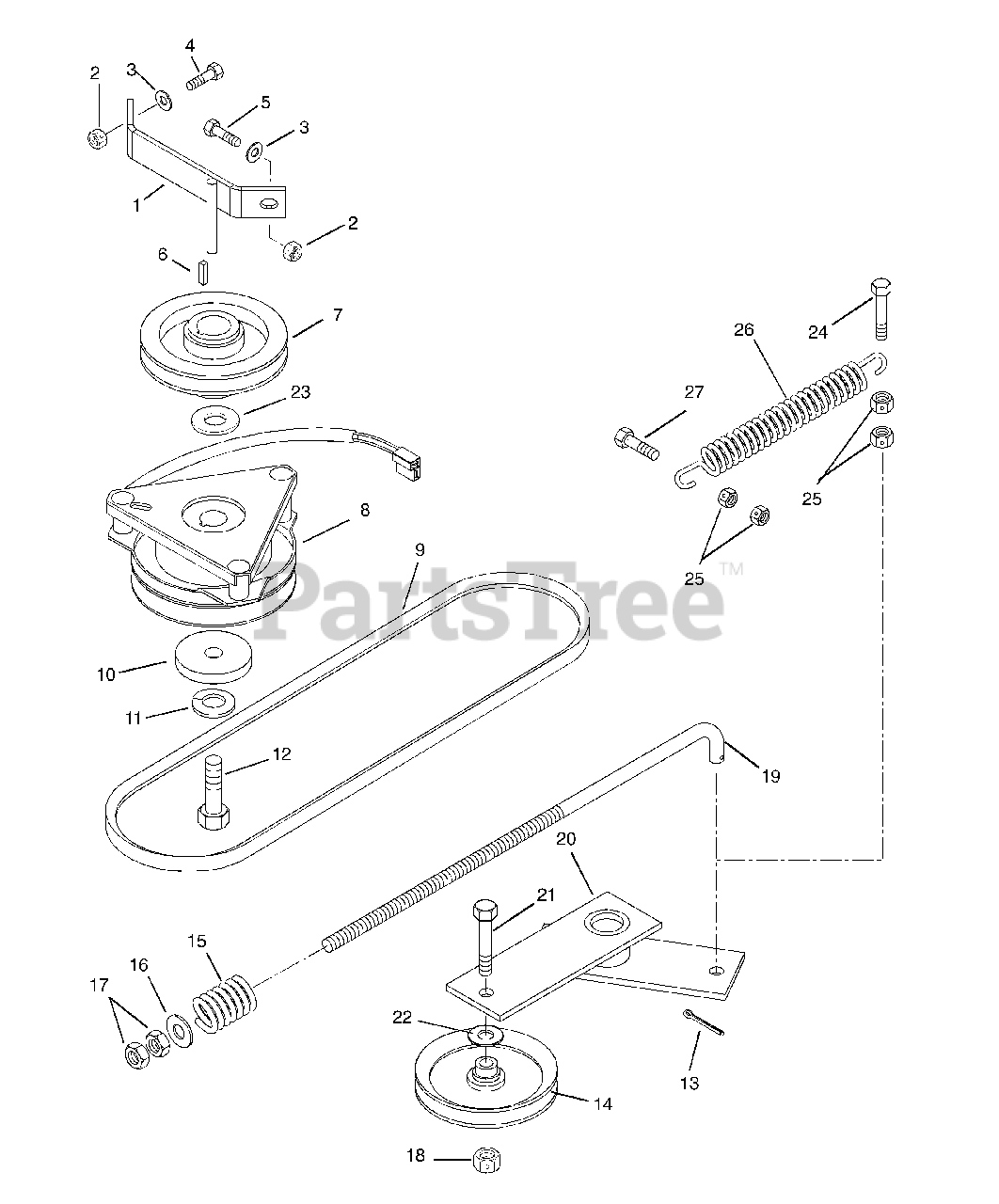

PTO Drive Parts Diagram

  • Title

1

Gravely 09097251

Weldment-PTO Clutch Stop

$105.99

$

Usually ships in 4-12 days

0

2

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, Qty 10

0

5

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

6

Gravely 018345

Key-Square .248 x 1.25 x .248
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 09078200

Sheave

$

$

Not available

8

Gravely 09068200

Clutch-Electric

$527.99

$

In Stock, only 1 left!

0

9

Gravely 07233500

V-Belt

$56.99

$

In Stock, only 1 left!

0

10

Gravely 044379

Washer-Special .469 x 2.000 x .250
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 06309300

Washer-Locking .44 x 1.09
(Superseded to 06300121)

$2.99

$

In Stock, only 1 left!

0

12

Gravely 05967500

Bolt-Hex .44-20 x 1.75 Grade 5

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06706900

Pin-Cotter .09 x .75

Note: Models 990015 Serial Numbers 000676-000999

$0.99

$

In Stock, Qty 8

0

14

Gravely 021060

Pulley-Idler 4.50 x .380
(Superseded to 07314800)

$40.99

$

In Stock, Qty 6

0

15

Gravely 021506

Spring-Compression .072 x .561 x 2.50
(Superseded to 08329600)

Note: Models 990015 Serial Numbers 000676-000999

$23.99

$

Usually ships in 4-12 days

0

16

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

Note: Models 990015 Serial Numbers 000676-000999

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

Note: Models 990015 Serial Numbers 001000 and up & 990017 Serial Numbers 000101 and up

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09037600

Rod-Idler

Note: Models 990015 Serial Numbers 000676-000999

$

$

Not available

20

Gravely 049754

Weldment-Idler
(Superseded to 08992400)

$

$

Not available

21

Gravely 05958500

Bolt-Hex .38-16 x 1.875
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

22

Gravely 06309000

Washer-Flat-Steel .39X.75X.175

$

$

Not available

23

Gravely 02447600

Spacer 1.006 x 1.307 x .500

$25.99

$

Usually ships in 4-12 days

0

24

059579

Bolt-Hex .38-16 x 1.50

Note: Models 990015 Serial Numbers 001000 and up & 990017 Serial Numbers 000101 and up

$

$

Not available

25

065296

Nut-Lock Center .38-16

Note: Models 990015 Serial Numbers 001000 and up & 990017 Serial Numbers 000101 and up

$

$

Not available

26

Gravely 08334100

Spring-Extension
(Superseded to 08300728)

Note: Models 990015 Serial Numbers 001000 and up & 990017 Serial Numbers 000101 and up

$28.99

$

In Stock, Qty 20+

0

27

059633

Bolt-Hex .38-16 x 2.00 Grade 5

Note: Models 990015 Serial Numbers 001000 and up & 990017 Serial Numbers 000101 and up

$

$

Not available
