990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) BATTERY AND ELECTRICAL BRACKET Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

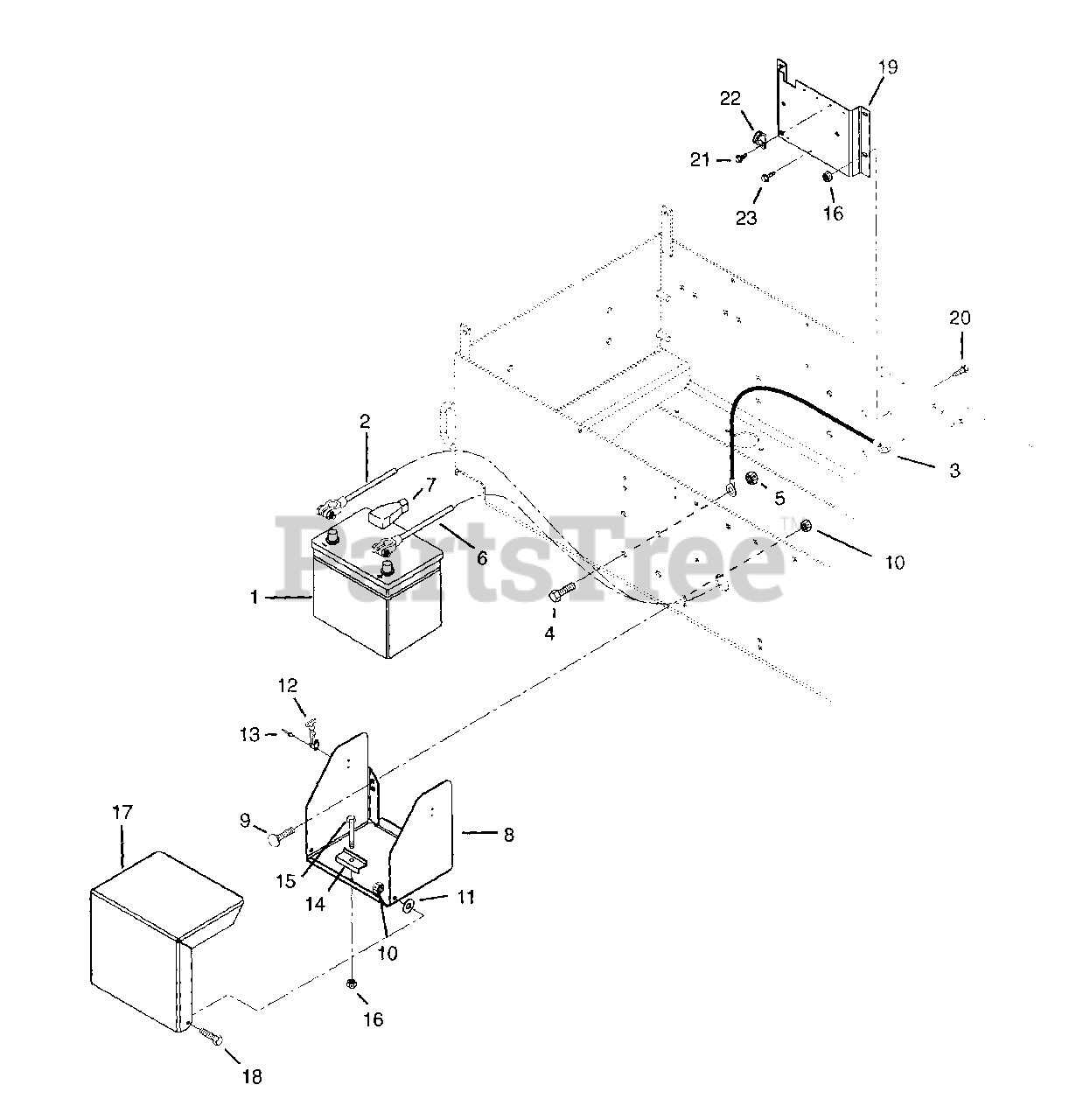

BATTERY AND ELECTRICAL BRACKET Parts Diagram

  • Title

1

Gravely 04202200

BATTERY
(Superseded to 02078500)

$

$

Not available

2

Gravely 08961000

CBL,NEGATIVE BATTERY

Note: (Model 010)

$

$

Not available

Gravely 08542000

CBL,NEG BATTERY

Note: (Model 016)

$

$

Not available

3

Gravely 09047600

GROUND STRAP

$

$

Not available

4

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

5

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

6

Gravely 09061900

CABLE, POSITIVE BATTERY

Note: (Model 010)

$

$

Not available

Gravely 08745500

CABLE,BAT TO MAG SWITCH

Note: (Model 016)

$

$

Not available

7

Gravely 07523100

CVR,BATTERY TERMINAL

$

$

Not available

8

Gravely 09074800

WLDMT, BATTERY BOX

$31.99

$

Usually ships in 4-12 days

0

9

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 00525200

DRAW LATCH, RUBBER W/CATCH

$

$

Not available

13

Gravely 06804400

RVT-POP.125 X .357 DOME PL

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 00525400

CLAMP, BATTERY

$

$

Not available

15

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

16

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 00525100

WELDMENT, BATTERY BOX COVER

$

$

Not available

18

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, only 2 left!

0

19

Gravely 09076800

BRKT, ELECTRICAL COMPONENT

Note: (Model 010)

$

$

Not available

20

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

21

Gravely 07412100

SCR-TAP 10-24X.375 HWH YZ TR

Note: (Model 010)

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 06916000

J-CLAMP

Note: (Model 010)

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

Note: (Model 010)

$3.99

$

In Stock, Qty 5

0
