990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) DASH AND CONTROLS Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

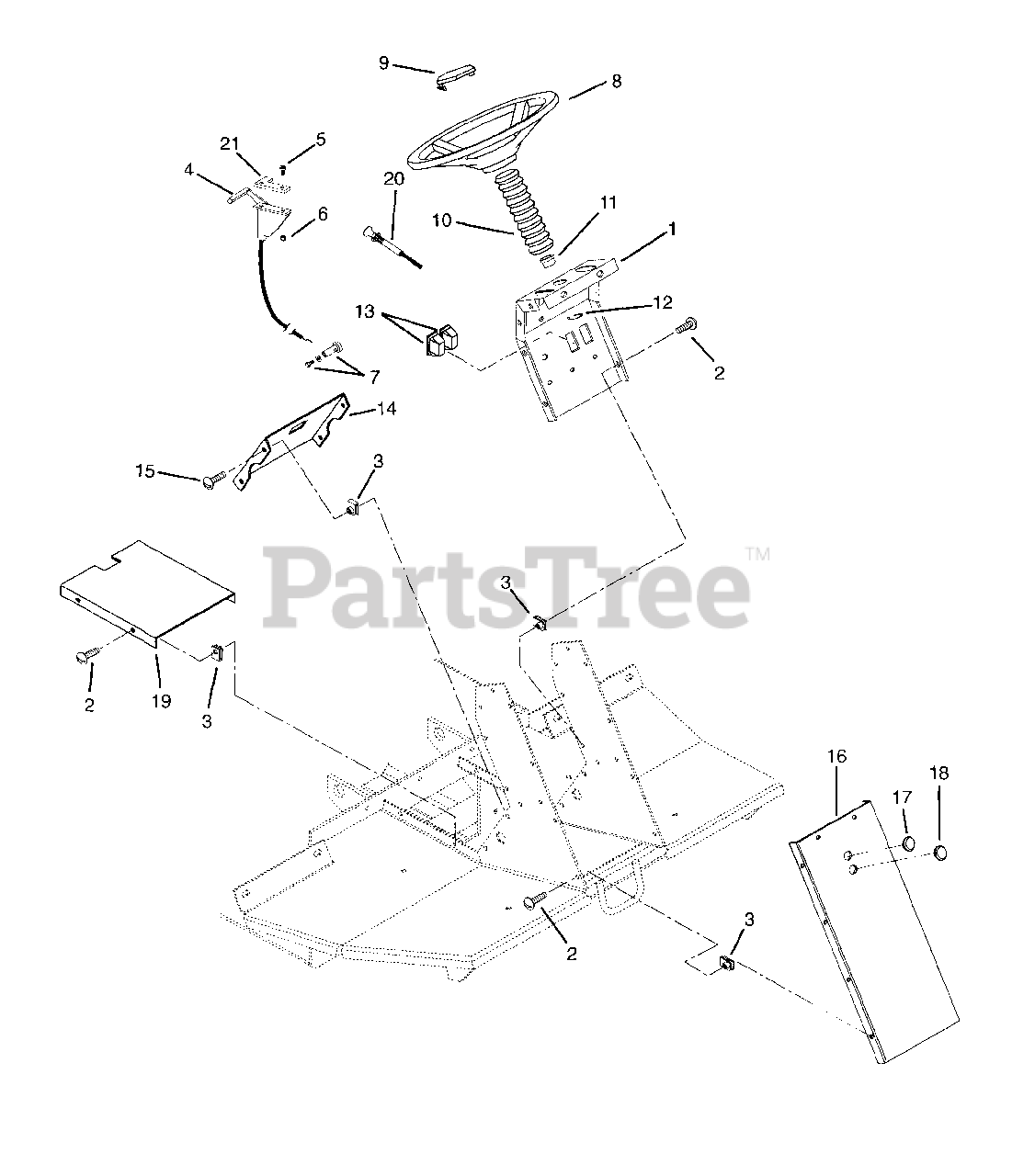

DASH AND CONTROLS Parts Diagram

  • Title

1

Gravely 09058400

Panel, Instrument

$11.99

$

Usually ships in 4-12 days

0

2

Gravely 06114400

Screw-Machine .25-20 x .75

$0.99

$

In Stock, Qty 17

0

3

Gravely 07009000

Nut-Retainer .25-20 x .56

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06939500

Throttle Cable

Note: (Model 010)

$

$

Not available

4

Gravely 06941800

Throttle Cable

Note: (Model 016)

$

$

Not available

5

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06536000

Nut-Jam 1/2-20 Grade 2
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

7

Gravely 03604100

Swivel Assembly

$9.49

$

Usually ships in 4-12 days

0

8

Gravely 09088000

Steering Wheel
(Superseded to 03964990)

Note: (Model 016)

$108.99

$

Usually ships in 4-12 days

0

8

Gravely 09078900

Steering Wheel
(Superseded to 03964990)

Note: (Model 010)

$108.99

$

Usually ships in 4-12 days

0

9

Gravely 09088100

Steering Wheel Cap

Note: (Model 016)

$

$

Not available

9

Gravely 09079300

Steering Wheel Cap

Note: (Model 010)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 08739200

Steering Column Boot

$

$

Not available

11

Gravely 05518400

Bushing-Flange .762 x 1.0 x .580 x 1.48

$4.99

$

In Stock, Qty 20+

0

12

Gravely 05717300

Ring-Retaining-External 1.310 x .050

$

$

Not available

13

Gravely 03657000

Cover-Switch
(Superseded to 00539300)

$9.99

$

Usually ships in 4-12 days

0

14

Gravely 09074100

Panel, Brake Lock
(Superseded to 09009700)

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 06114300

Screw-Machine .25-20 x .50

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 08978500

Panel, Front

$

$

Not available

17

Gravely 07508500

Hole Plug

$

$

Not available

18

Gravely 07536300

Plug, Hole

$

$

Not available

19

Gravely 09074400

Panel, Access

$9.49

$

Usually ships in 4-12 days

0

20

Gravely 06941700

Cable, Control

Note: (Model 016)

$34.99

$

Usually ships in 4-12 days

0

21

Gravely 04902600

Stop, Throttle Cable

Note: (Model 016)

$

$

Not available
