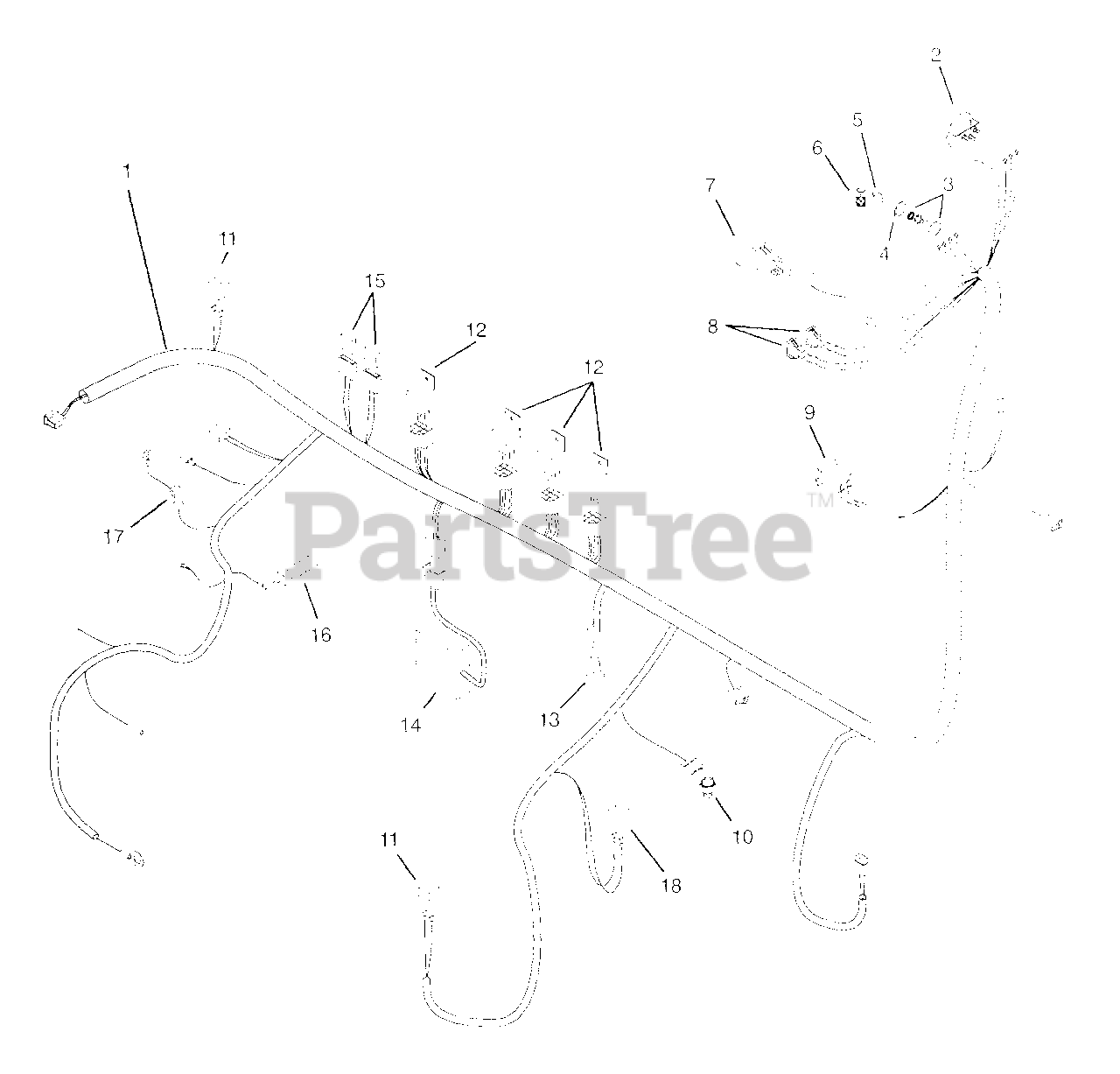

990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 09082000

HARNESS, WIRING

Note: (Model 010)

$

$

Not available

Gravely 09089900

WIRE HARNESS, PM-360 KAW

Note: (Model 016)

$

$

Not available

2

Gravely 09080200

GAUGE, TEMPERATURE

$102.99

$

Usually ships in 4-12 days

0

3

Gravely 09056700

SWITCH, IGNITION (DIESEL)
(Superseded to 00168400)

Note: (Model 010)

$58.99

$

In Stock, only 4 left!

0

Gravely 09089700

SWITCH, IGNITION
(Superseded to 04331700)

Note: (Model 016)

$44.99

$

In Stock, Qty 20+

0

4

Gravely 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 11

0

5

Gravely 21510400

IGNITION KEY SET

$10.99

$

In Stock, only 1 left!

0

6

Gravely 03490000

KEY CHAIN

$

$

Not available

7

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

8

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$7.99

$

In Stock, Qty 8

0

9

Gravely 03492700

HOUR METER
(Superseded to 09497400)

$25.99

$

In Stock, Qty 14

0

10

Gravely 01526100

SWITCH, NEUTRAL START N.O.

$

$

Not available

11

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 18

0

12

Gravely 03042800

RELAY
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

13

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

$29.99

$

In Stock, only 3 left!

0

14

Regulator

$

$

Not available

15

Gravely 00524600

FUSE, 30 AMP.

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 09058800

TEMPERATURE SENDER

$111.99

$

Usually ships in 4-12 days

0

17

Gravely 03384700

BOOT, INSULATOR

$

$

Not available

18

Gravely 03095700

SWITCH, INTERLOCK NC

Note: (Parking Brake)

$9.99

$

Usually ships in 4-12 days

0
