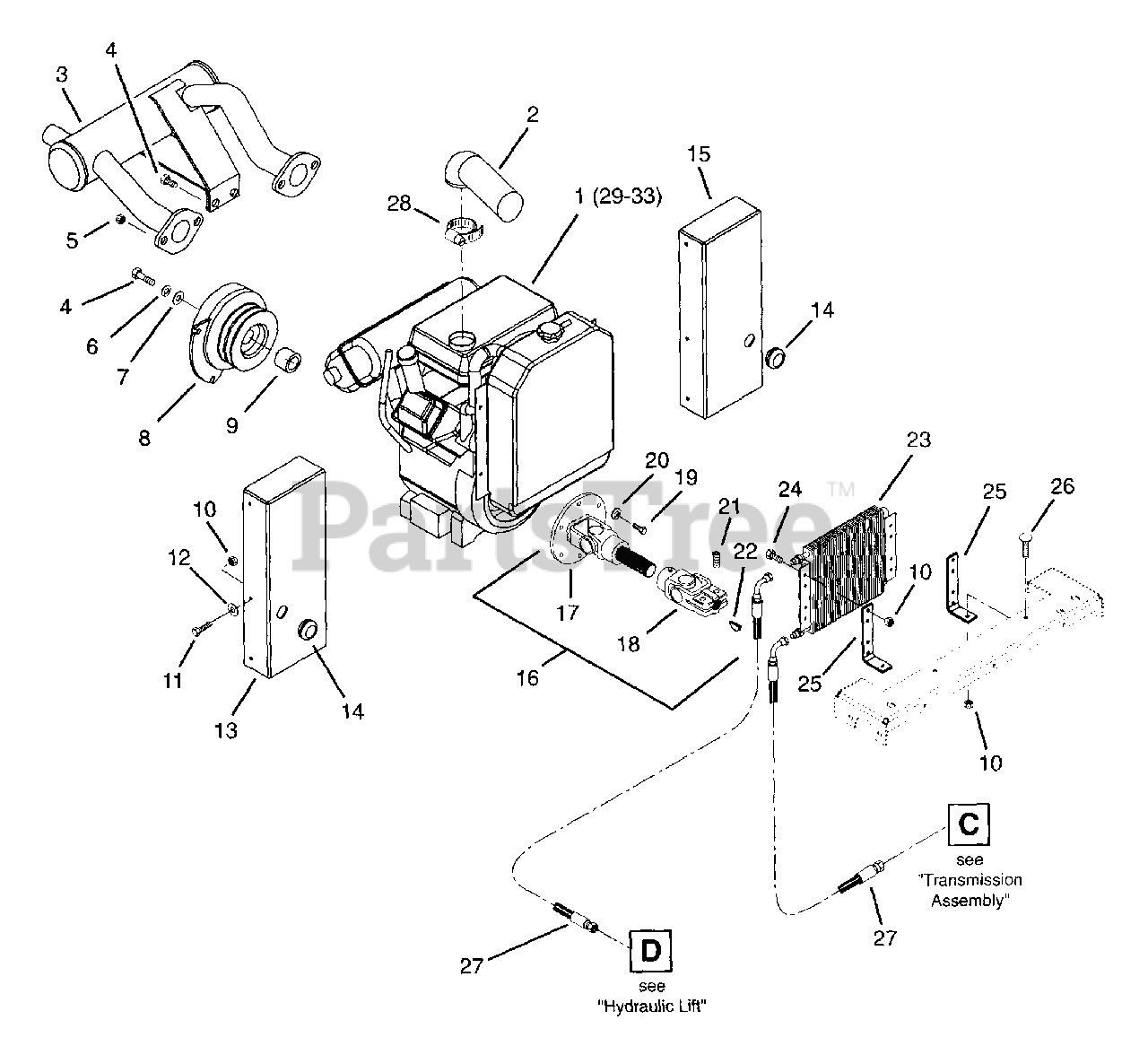

990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) ENGINE, EXHAUST, CLUTCH, AND DRIVE - GAS Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

ENGINE, EXHAUST, CLUTCH, AND DRIVE - GAS Parts Diagram

  • Title

1

Gravely 08255600

Engine, Kawasaki 22 HP

$

$

Not available

2

Gravely 09087800

Hose, Air Intake

$

$

Not available

3

Gravely 09087600

Muffler

$

$

Not available

4

Gravely 05967600

Bolt-Hex M10 x 1.5 x 20 Grade 5

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 05967600

Nut-Hex M6 x 1.0

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 06309300

Washer-Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

7

Gravely 06440800

Washer-Flat-Steel .44 x 1.625 x .315

$

$

Not available

8

Gravely 09087400

Clutch, Electric

$

$

Not available

9

Gravely 09073300

Spacer

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 06529700

Nut-Locking-Center .25-30
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

12

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

13

Gravely 09087300

Deflector, Air Right Hand

$

$

Not available

14

Gravely 07532400

Grommet, 1.25 x 1.50 x 1.81

$

$

Not available

15

Gravely 09087200

Deflector, Air Left Hand

$

$

Not available

16

Gravely 09087700

Driveline, Universal

$

$

Not available

17

Gravely 21527500

Adapter, Flywheel

$

$

Not available

18

Gravely 21512000

Assembly, U-Joint

$

$

Not available

19

Gravely 00591200

Bolt-Hex 8mm x 1.25 50mm

$

$

Not available

20

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06004900

Screw-Set .38-16 x .50

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 06600300

Key-Woodruff .188 x .75 x .313 SAE9

$1.49

$

In Stock, Qty 7

0

23

Gravely 08856200

Cooler, Oil

$

$

Not available

24

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

25

Gravely 09075400

Bracket, Oil Cooler Mount

$5.99

$

Usually ships in 4-12 days

0

26

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 09072700

Assembly, Hydraulic Hose-Oil Cooler To Filter

$

$

Not available

28

Gravely 06923600

Clamp, 2.25 Diameter Hose

$6.49

$

Usually ships in 4-12 days

0

29

Gravely 21527700

Air Cleaner

Note: Engine Service Parts

$

$

Not available

30

Gravely 21495800

Air Filter Element

Note: Engine Service Parts

$

$

Not available

31

Gravely 21527800

Fuel Filter

Note: Engine Service Parts

$28.99

$

In Stock, only 1 left!

0

32

Gravely 21527900

Oil Filter
(Superseded to 21535800)

Note: Engine Service Parts

$18.99

$

In Stock, Qty 20+

0

33

Gravely 21527600

Spark Plug
(Superseded to 20742900)

Note: Engine Service Parts

$

$

Not available
