990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) FRAME, FENDERS, AND LIFT ARMS Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

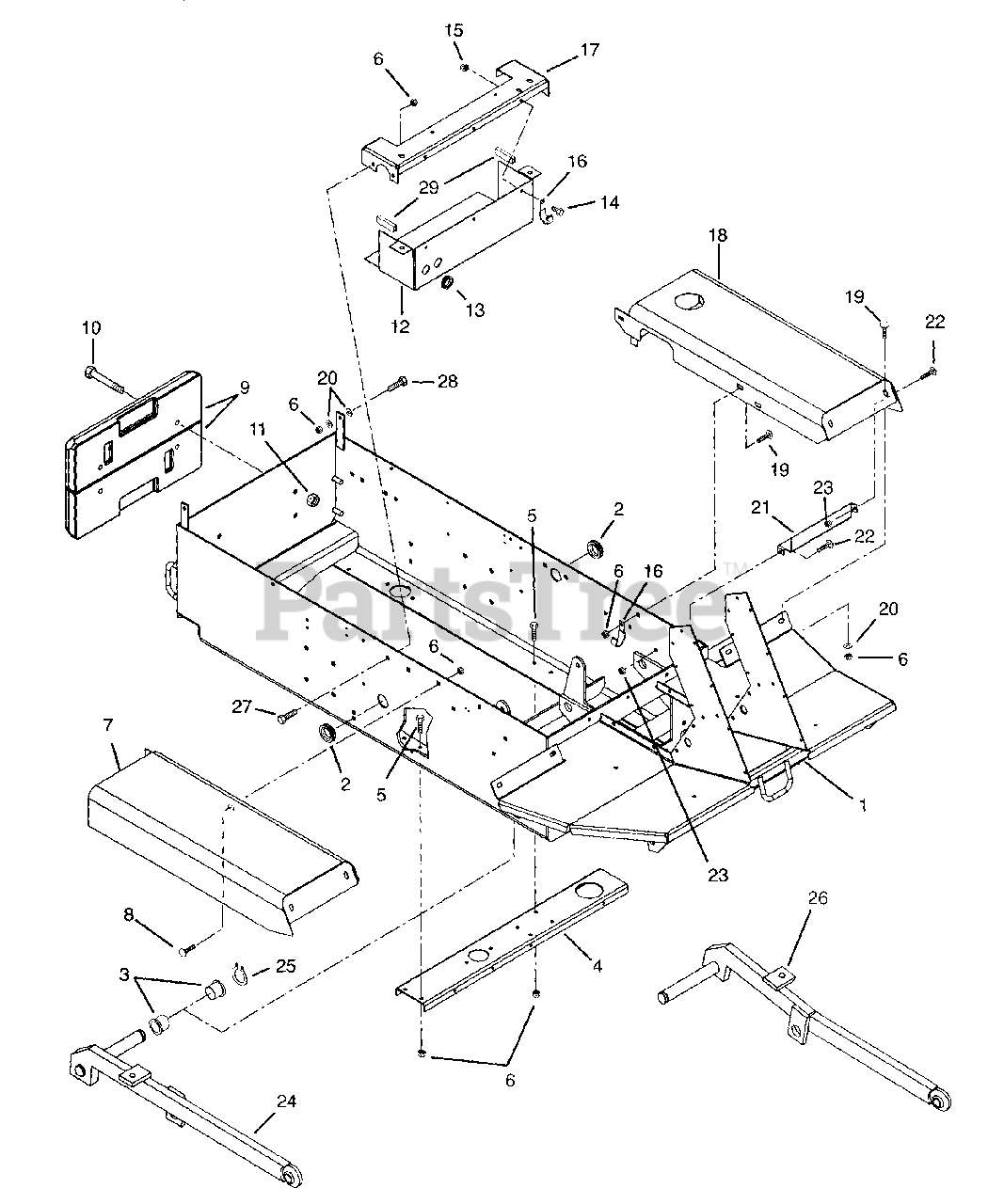

FRAME, FENDERS, AND LIFT ARMS Parts Diagram

  • Title

1

Gravely 09088400

WMT, FRAME

$646.99

$

Usually ships in 4-12 days

0

2

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 05526200

BSHG-FLG 1.25X1.50X1.50 NYL

$

$

Not available

4

Gravely 09074700

BRACE, FRAME

$13.99

$

Usually ships in 4-12 days

0

5

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

6

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09070400

WMT, FENDER -RH

$51.99

$

Usually ships in 4-12 days

0

8

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 09054700

WEIGHT, REAR FRAME
(Superseded to 00172000)

Note: (Model 010)

$303.99

$

Usually ships in 4-12 days

0

Gravely 09054700

WEIGHT, REAR FRAME
(Superseded to 00172000)

Note: (Model 016)

$303.99

$

Usually ships in 4-12 days

0

10

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

11

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

12

Gravely 09087100

WMT, BOTTOM AIR INTAKE

$

$

Not available

13

Gravely 07530600

GRMT .75X1.06X1.38

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, only 2 left!

0

15

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06916000

J-CLAMP

Note: (Model 010)

$2.99

$

Usually ships in 4-12 days

0

Gravely 06916000

J-CLAMP

Note: (Model 016)

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 09088600

WMT, SEAT CROSS SUPPORT

$20.99

$

Usually ships in 4-12 days

0

18

Gravely 09070300

WMT, LH FENDER

$51.99

$

Usually ships in 4-12 days

0

19

Gravely 06219600

BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

20

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 09055100

BRKT., FUEL TANK FRONT SUPPORT

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 09080900

LIFT ARM WELDMENT-RH

$148.99

$

Usually ships in 4-12 days

0

25

Gravely 05713800

RG-RTNG-EXT 1.150X.093

$

$

Not available

26

Gravely 09081000

LIFT ARM WELDMENT-LH

$148.99

$

Usually ships in 4-12 days

0

27

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

28

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.49

$

In Stock, Qty 6

0
