990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) FRAME, FENDERS, AND LIFT ARMS Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

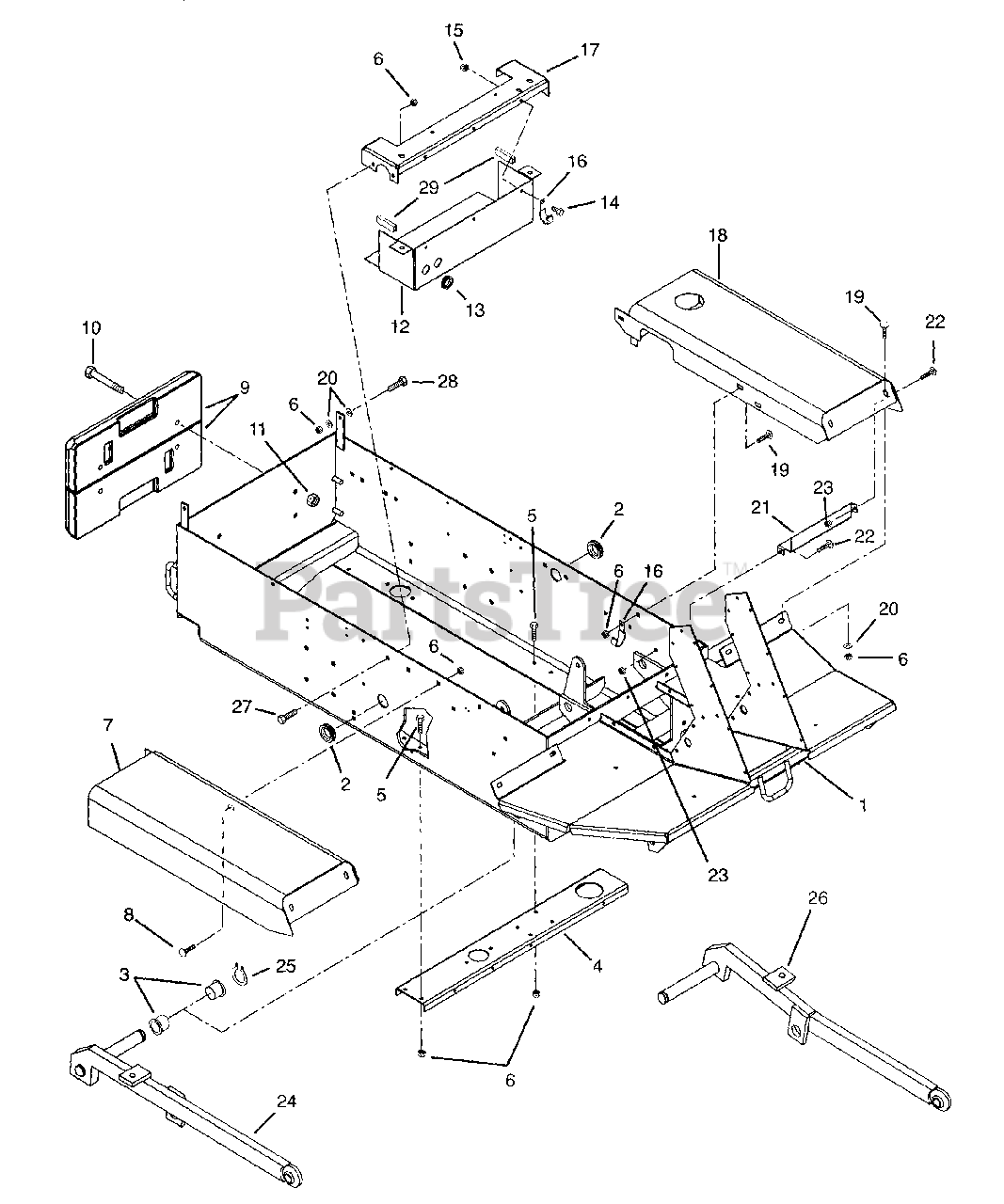

FRAME, FENDERS, AND LIFT ARMS Parts Diagram

  • Title

1

Gravely 09088400

Weldment, Frame

$646.99

$

Usually ships in 4-12 days

0

2

Gravely 07536800

Grommet 1.25

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 05526200

Bushing, Flange 1.25 x 1.50 x 1.50 Nylon

$

$

Not available

4

Gravely 09074700

Brace, Frame

$13.99

$

Usually ships in 4-12 days

0

5

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09070400

Weldment, Fender - RH

$51.99

$

Usually ships in 4-12 days

0

8

Gravely 06212000

Bolt-Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09054700

Weight, Rear Frame
(Superseded to 00172000)

Note: (Model 010)

$284.99

$

Usually ships in 4-12 days

0

9

Gravely 09054700

Weight, Rear Frame
(Superseded to 00172000)

Note: (Model 016)

$284.99

$

Usually ships in 4-12 days

0

10

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, Qty 8

0

10

Gravely 05962200

Bolt-Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 9

0

11

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 09087100

Weldment, Bottom Air Intake

$

$

Not available

13

Gravely 07530600

Grommet .75 x 1.06 x 1.38

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 05947200

Bolt-Hex .31-18 x .50 Grade 5
(Superseded to 05901904)

$1.49

$

In Stock, Qty 15

0

15

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06916000

J-Clamp

Note: (Model 010)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06916000

J-Clamp

Note: (Model 016)

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 09088600

Weldment, Seat Cross Support

$20.99

$

Usually ships in 4-12 days

0

18

Gravely 09070300

Weldment, L.H. Fender

$51.99

$

Usually ships in 4-12 days

0

19

Gravely 06219600

Bolt-Round Head Square Neck .38-16 x .75 Grade 2
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

20

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 09055100

Bracket, Fuel Tank Front Support

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 09080900

Lift Arm Weldment - R.H.

$148.99

$

Usually ships in 4-12 days

0

25

Gravely 05713800

Ring-Retaining-External 1.150 x .093

$

$

Not available

26

Gravely 09081000

Lift Arm Weldment - L.H.

$148.99

$

Usually ships in 4-12 days

0

27

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

28

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 00929000

Seal, Trim-Lok

$15.99

$

Usually ships in 4-12 days

0
