990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) FUEL SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

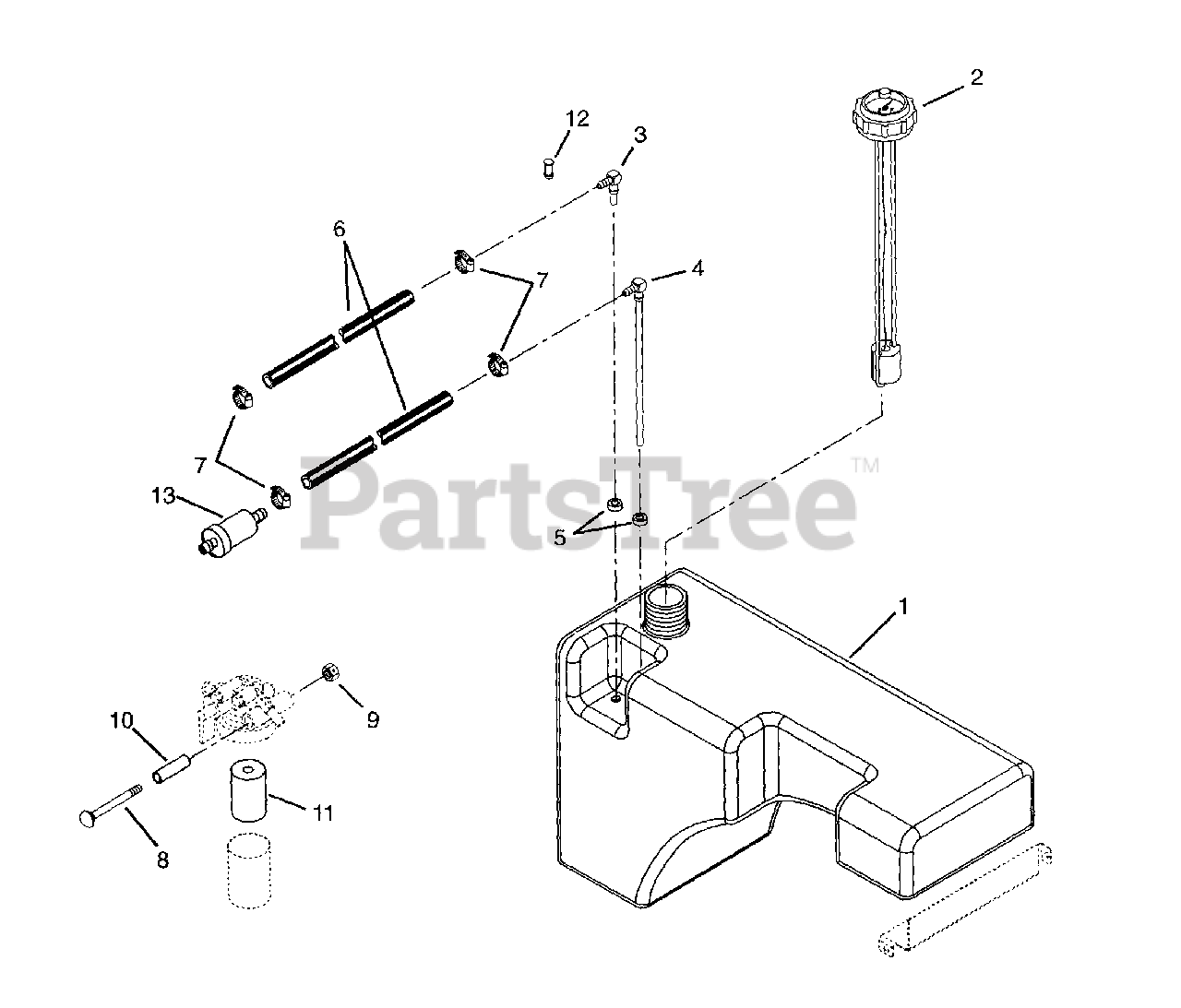

FUEL SYSTEM Parts Diagram

  • Title

1

Gravely 09051700

TANK, FUEL

$103.99

$

Usually ships in 4-12 days

0

2

Gravely 08983200

GAUGE,FUEL

$

$

Not available

3

Gravely 07023300

FTG-TANK 1.37X.406 PL

Note: (Model 010)

$

$

Not available

4

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

5

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

6

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06924300

HOSE CLAMP

$7.99

$

Usually ships in 4-12 days

0

8

Gravely 06208700

BLT-RDHDSQNK .31-18X3.25 SHTPL
(Superseded to 06221300)

Note: (Model 010)

$6.99

$

In Stock, only 2 left!

0

9

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (Model 010)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05525700

BSHG-SLV .407X.625X.750 PL

Note: (Model 010)

$7.49

$

In Stock, Qty 20+

0

11

Gravely 21034400

ELEMENT, FUEL

Note: (Model 010)

$

$

Not available

12

Gravely 07044500

PLUG, FUEL TANK BUSHING

Note: (Model 016)

$

$

Not available

13

Gravely 08811700

FILTER,FUEL

Note: (Model 016)

$10.99

$

Usually ships in 4-12 days

0
