990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) PARKING BRAKE Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

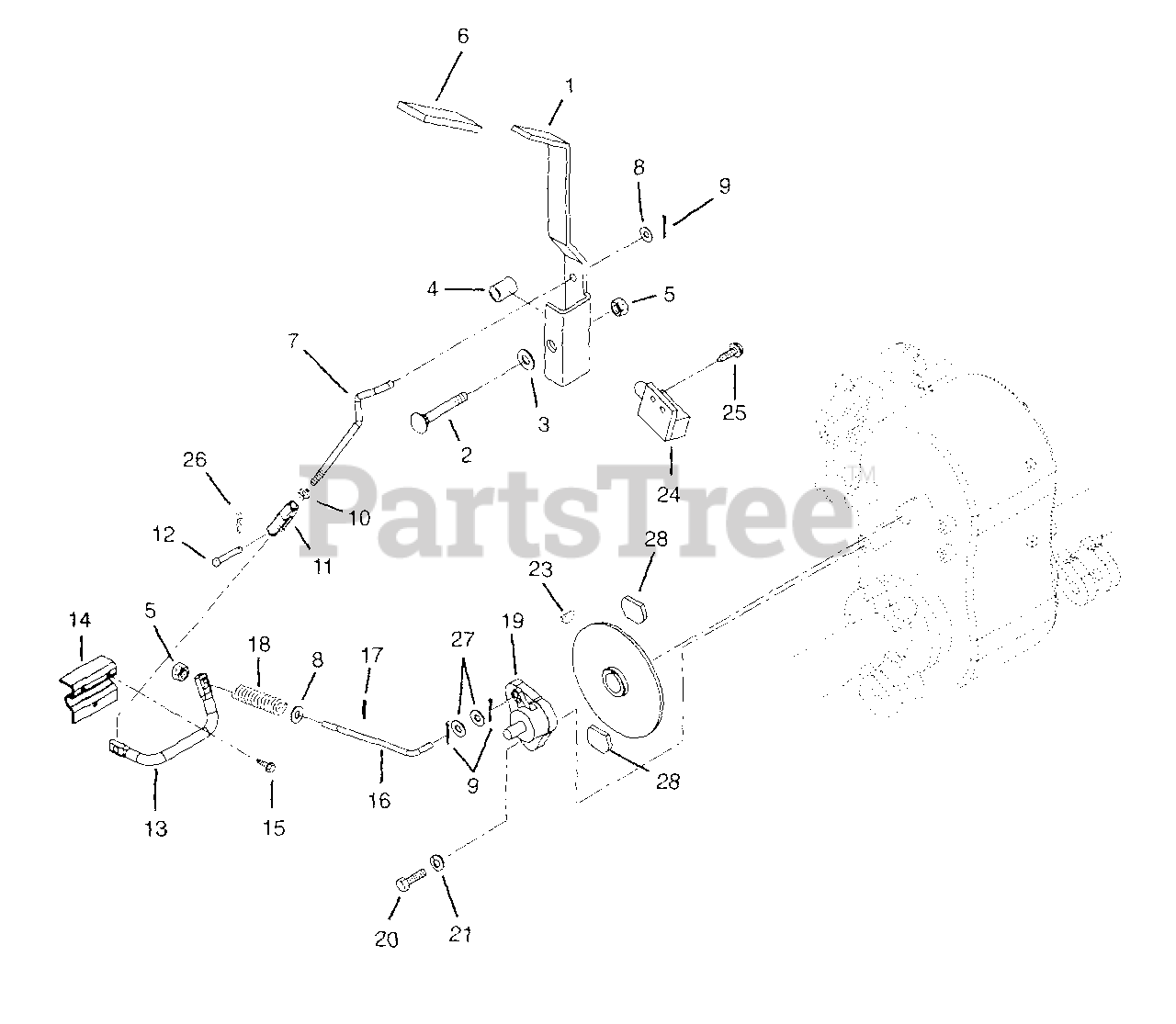

PARKING BRAKE Parts Diagram

  • Title

1

Gravely 00514100

LEVER, BRAKE

$

$

Not available

2

Gravely 06215300

BLT-RDHDSQNK .38-16X1.50 G2YZ
(Superseded to 06224200)

$4.99

$

In Stock, Qty 20+

0

3

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 00514300

SPACER, ROLL .41IDX.62ODX.42LG

$

$

Not available

5

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07509400

GRIP

$

$

Not available

7

Gravely 09069000

ROD, BRAKE LINKAGE

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 6

0

10

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0

11

Gravely 00513800

YOKE, .312-24 X 2.25

$30.99

$

Usually ships in 4-12 days

0

12

Gravely 06814000

PIN-CLEV .31X.937 FLHD YWZC

$

$

Not available

13

Gravely 09068700

ROD, BRAKE PIVOT

$

$

Not available

14

Gravely 09073600

PLATE, PIVOT

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 07402800

SCR-TAP .250-20X.75 HWH PL TR
(Superseded to 07400131)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09069100

ROD, BRAKE LINK

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 12

0

18

Gravely 08328100

SG-COMP 2.00X.404

$

$

Not available

19

Gravely 09069500

BRAKE ASSEMBLY

Note: Contains item 31

$

$

Not available

20

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

21

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09070200

WMT, DISC BRAKE

$11.99

$

Usually ships in 4-12 days

0

23

Gravely 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 13

0

24

Gravely 03095700

SWITCH, INTERLOCK NC

$9.99

$

Usually ships in 4-12 days

0

25

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

26

Gravely 06709800

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 21525300

PAD, BRAKE

$

$

Not available
