990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) PTO IDLER AND SHAFT Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

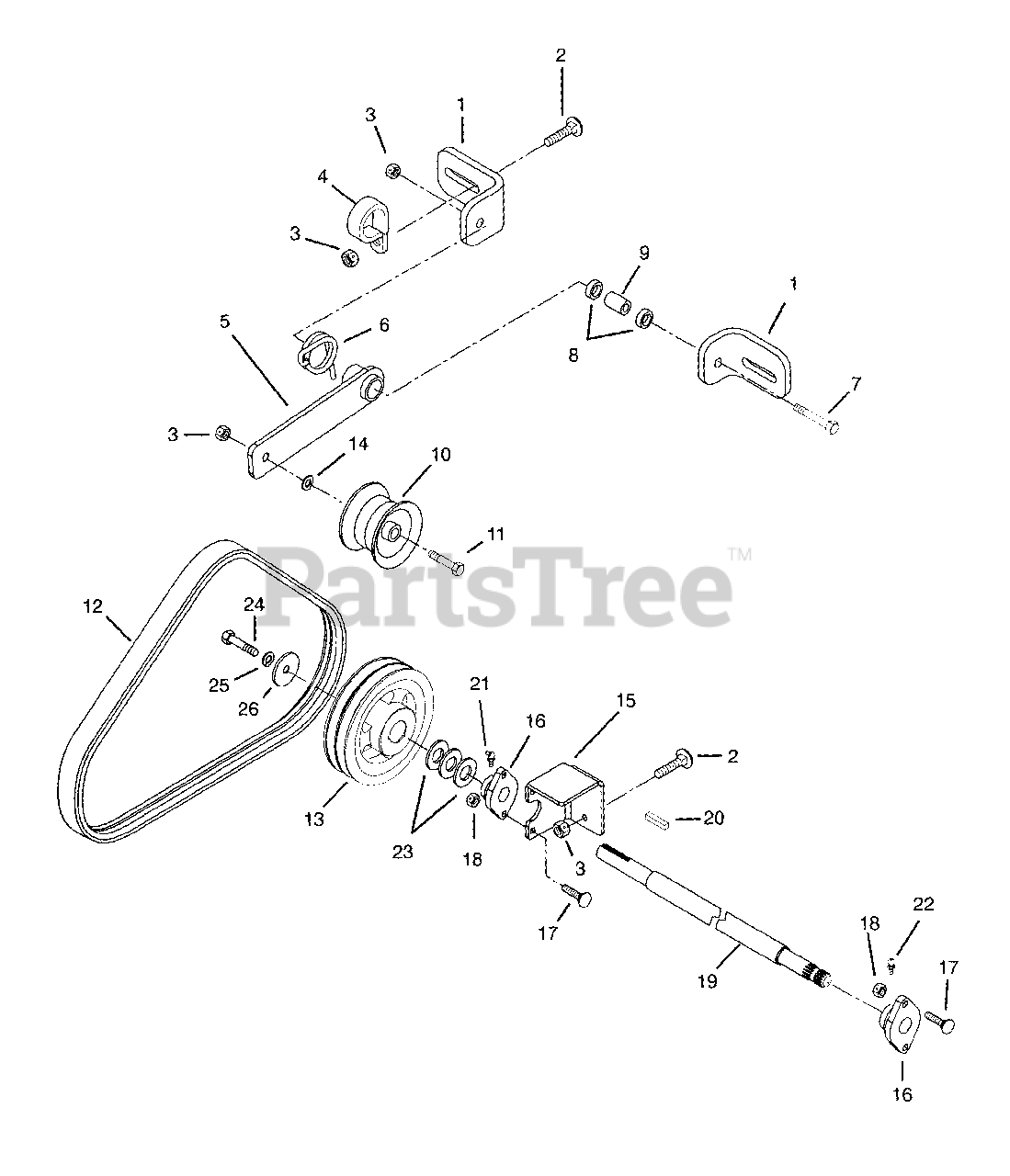

PTO IDLER AND SHAFT Parts Diagram

  • Title

1

Gravely 09071000

BRKT, IDLER

$9.49

$

Usually ships in 4-12 days

0

2

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06941400

CLAMP, .50 I.D.

$

$

Not available

5

Gravely 09071100

WLDMT, IDLER ARM

$

$

Not available

6

Gravely 08334200

SPRING, TORSION

$60.99

$

Usually ships in 4-12 days

0

7

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 00520100

BSHG, SPCR .752X.877X.50 BRZ

$

$

Not available

9

Gravely 00520000

SPACER .406X.75X1.5

$22.99

$

Usually ships in 4-12 days

0

10

Gravely 07324500

IDLER, 2.75X1.25

$

$

Not available

11

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 07233800

BELT, PTO

Note: (Model 010)

$

$

Not available

Gravely 07235300

BELT, 2 GROOVE PTO

Note: (Model 016)

$76.99

$

Usually ships in 4-12 days

0

13

Gravely 09084500

PTO PULLEY

$237.99

$

Usually ships in 4-12 days

0

14

Gravely 06436800

WSHR-FL-STL .390X.88X.18 YWZC

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 09084600

WLDMT, SUPPORT BRACKET

$13.99

$

Usually ships in 4-12 days

0

16

Gravely 00553600

BEARING, FLANGED WITH SET SCR.

$104.99

$

Usually ships in 4-12 days

0

17

Gravely 06219200

BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 09084400

WLDMT, PTO SHAFT, PM-360

Note: (Model 010)

$

$

Not available

Gravely 09087500

WLDMT, PTO SHAFT

Note: (Model 016)

$

$

Not available

20

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

21

Gravely 07012700

FTG,LUBE 45 DEG

$4.99

$

In Stock, only 1 left!

0

22

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

23

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

Note: (6 maximum)

$5.49

$

In Stock, Qty 8

0

24

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

25

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0
