990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) SEAT LID AND SEAT Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

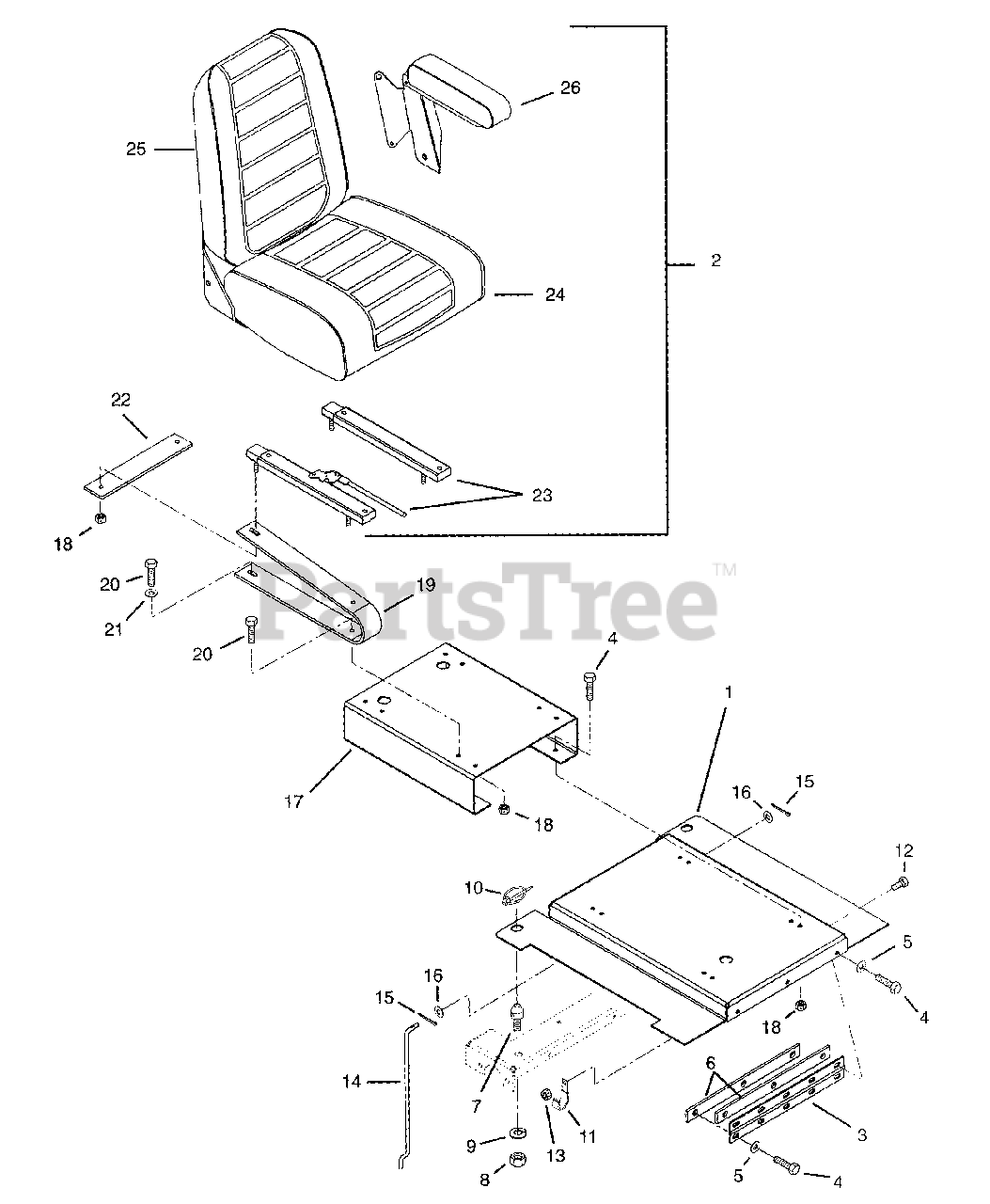

SEAT LID AND SEAT Parts Diagram

  • Title

1

Gravely 09070600

WLDMT, SEAT LID

Note: (Model 010)

$52.99

$

Usually ships in 4-12 days

0

Gravely 09085500

PUMP, HYDRAULIC

Note: (Model 016)

$

$

Not available

2

Gravely 09072300

SEAT

Note: (Contains items 22-26)

$307.99

$

Usually ships in 4-12 days

0

3

Gravely 03102800

HINGE-2" X 12.88 YWZC

$

$

Not available

4

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 01539100

PLT, CLAMPING YWZC

$

$

Not available

7

Gravely 08964800

PIN,CATCH

$

$

Not available

8

Gravely 06537300

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07015400

PIN-KLIK .25X1.75

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 06909400

J-CLAMP

$3.99

$

In Stock, only 4 left!

0

12

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09061500

ROD, SEAT LID PROP

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

16

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 09073100

RISER, SEAT

Note: (Model 010)

$34.99

$

Usually ships in 4-12 days

0

18

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 03486851

SPRING, SEAT

$

$

Not available

20

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 09079000

BRACKET, SEAT

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 03600800

SEAT SLIDES -(RAME TAK-3010-4)

$

$

Not available

24

Gravely 21512200

SEAT CUSHION W/ SWITCH

$330.99

$

Usually ships in 4-12 days

0

25

Gravely 21512100

CUSHION, BACK

$

$

Not available

26

Gravely 21512300

ARMREST, L.H. KIRKLAND GRAY

$

$

Not available

Gravely 21512400

ARMREST, R.H.

$

$

Not available
