990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) TRANSMISSION ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

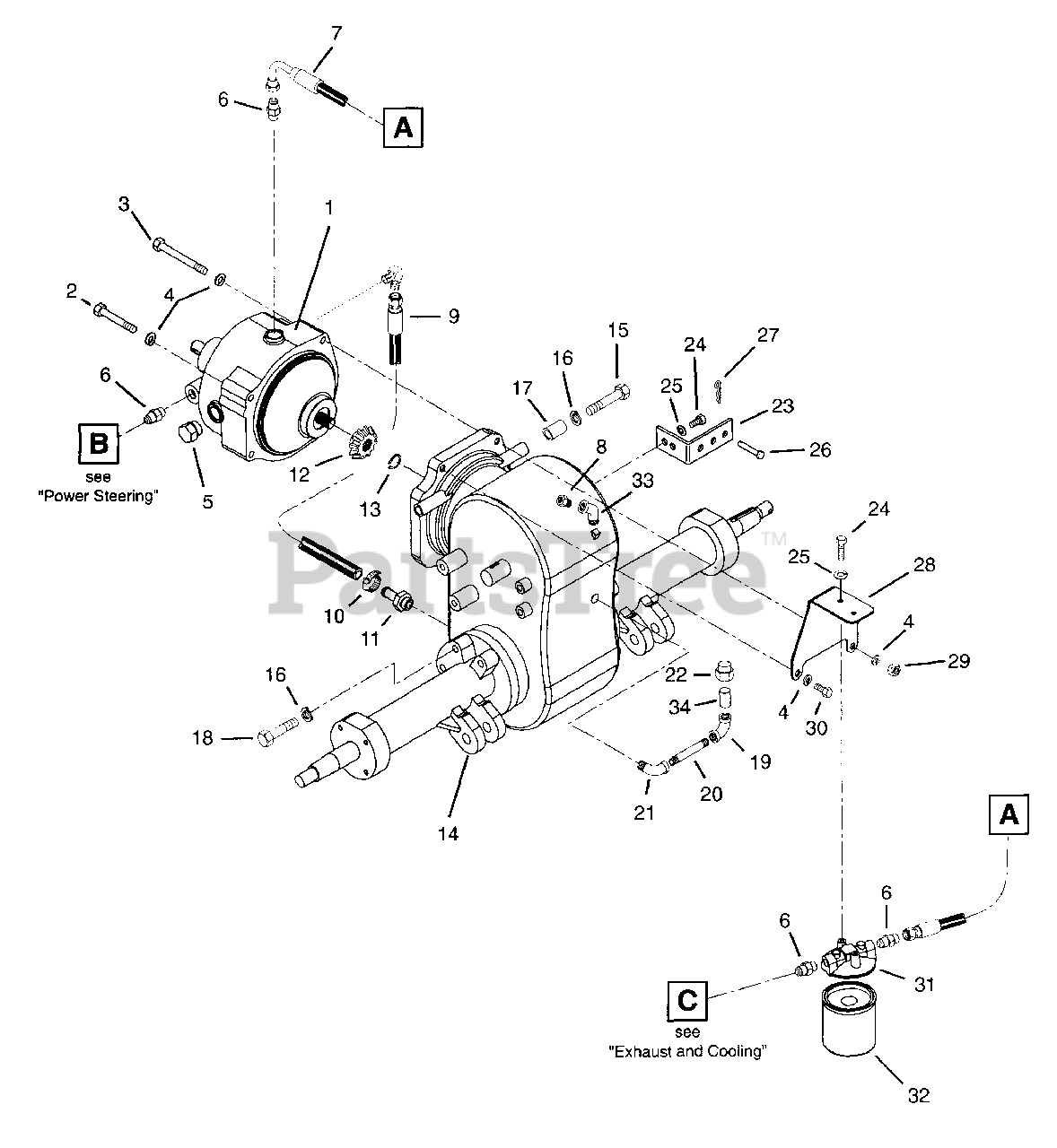

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Gravely 09068000

HYDRO, EATON M-11
(Superseded to 09094400)

$

$

Not available

2

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

3

Gravely 05911900

BLT-HEX .38-16X3.50 PL GR5
(Superseded to 05967800)

$

$

Not available

4

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07050100

PLUG, 7/8-14 O-RING

$

$

Not available

6

Gravely 07017500

ADPT-PIPE (0503-6-6)

$12.99

$

In Stock, only 2 left!

0

7

Gravely 09072600

ASSY, HYDRAULIC HOSE

$

$

Not available

8

Gravely 07050600

PLUG, BREATHER 3/8"

$

$

Not available

9

Gravely 09072500

ASSY, HYDRAULIC HOSE

$

$

Not available

10

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 20+

0

11

Gravely 07020300

FTG-ADPTR 88-14

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 09053200

GEAR, PINION

$

$

Not available

13

Gravely 05711900

RG-RTNG-EXT .579X.035

$1.49

$

In Stock, Qty 15

0

14

Gravely 09068100

TRANSAXLE, PEERLESS

$1959.99

$

Usually ships in 4-12 days

0

15

Gravely 05966600

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 09073900

SPACER, TRANS. MNT.53X.75X1.16

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

19

Gravely 07023500

ELBOW .375-18 NPTF

$

$

Not available

20

Gravely 09304100

NIPPLE

$

$

Not available

21

Gravely 07024200

EL .38X90 STRT UNFIN MAL IR

$

$

Not available

22

Gravely 03563600

PIPE CAP

$

$

Not available

23

Gravely 09074900

PLATE, SHIFT

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

25

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

26

Gravely 06811500

PIN-CLEV .25X1.75
(Superseded to 06814600)

$3.99

$

In Stock, only 1 left!

0

27

Gravely 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 09074300

BRKT, OIL FILTER MOUNT

$

$

Not available

29

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

31

Gravely 09072100

HEAD, FILTER

$62.99

$

In Stock, only 1 left!

0

32

Gravely 09072000

OIL FILTER

$35.99

$

Usually ships in 4-12 days

0

33

Gravely 07052800

STREET EL, 45 DEG BLACK

$

$

Not available

34

Gravely 02749600

NIPPLE

$9.99

$

Usually ships in 4-12 days

0
