990016 - Simplicity 20" Walk-Behind Reel Mower Lawn Mower Group - 20" Reel Type (3553I01) Parts Diagram

20" Walk-Behind Reel Mower

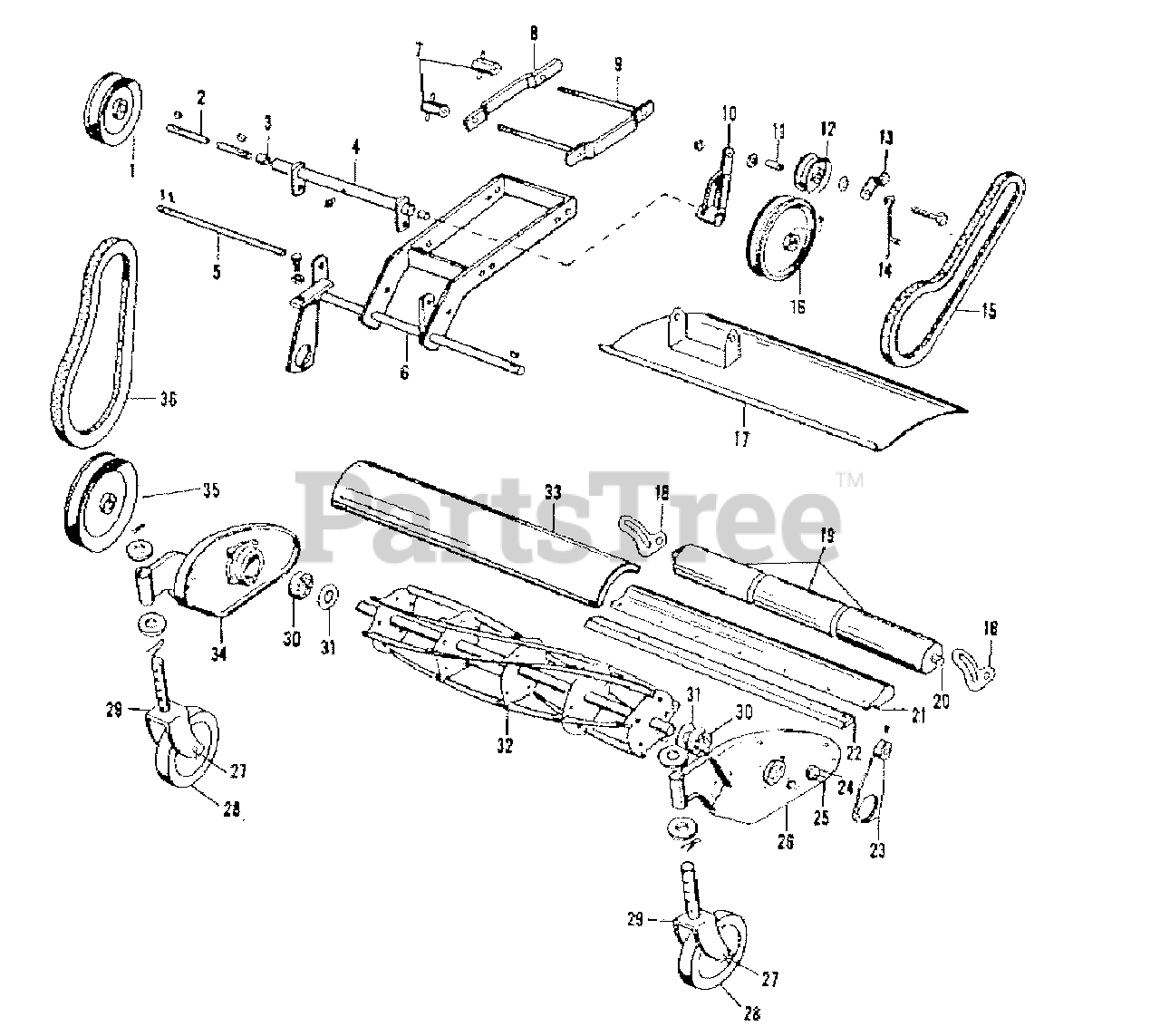

Lawn Mower Group - 20" Reel Type (3553I01) Parts Diagram

  • Title

1

Simplicity 109039

SHEAVE

$

$

Not available

2

Simplicity 8171069

PULLEY SHAFT

$

$

Not available

3

Simplicity 8261052

PULLEY SHAFT BEARING'

$

$

Not available

4

Simplicity 8172508

BEARING HOUSING ASSEMBLY

$

$

Not available

5

Simplicity 8172067

BEARING HOUSING ARM SHAFT

$

$

Not available

6

Simplicity 8173518

PUSH ARM ASSEMBLY

$

$

Not available

7

Simplicity 8161041

T" NUT`

$0.99

$

Usually ships in 2-12 days

0

8

Simplicity 103001

HITCH SIDE PLATE

$

$

Not available

9

Simplicity 8162501

HITCH CLAMP ASSEMBLY

$

$

Not available

10

Simplicity 8171518

IDLER LEVER ASSEMBLY

$

$

Not available

11

Simplicity 1729274SM

INNER BEARING RACE

$13.99

$

Usually ships in 2-12 days

0

12

Simplicity 2156124SM

IDLER PULLEY ASSEMBLY

$

$

Not available

13

Simplicity 8171071

ROD CLIP

$

$

Not available

14

Simplicity 8161158

BELT STOP

$

$

Not available

15

Simplicity 2118068

34" V BELT

$

$

Not available

16

Simplicity 8111013

DRIVE PULLEY

$

$

Not available

17

Simplicity 8173517

GRASS FENDER ASSEMBLY

$

$

Not available

18

Simplicity LP-475

ROLLER BRACKET

$

$

Not available

19

Simplicity LP-220

ROLLER

$

$

Not available

20

Simplicity LP-476

ROLLER SHAFT

$

$

Not available

21

Simplicity LP-212

CUTTER BAR

$

$

Not available

22

Simplicity LP-213

CUTTER BLADE BAR W/RIVETS

$

$

Not available

23

Simplicity 8171515

L.H. PUSH ARM ASSEMBLY

$

$

Not available

24

Simplicity L-114

ADJUSTING CAM

$

$

Not available

25

Simplicity F5-350

CAPSCREW, Hex, Head 3/8-24 x 7/8

$

$

Not available

26

Simplicity 10517

SIDE FRAME ASSEMBLY L.H.

$

$

Not available

27

Simplicity LP-513

CASTER AXLE

$

$

Not available

28

Simplicity LP-512

CASTER WHEEL w/BEARINGS

$

$

Not available

29

Simplicity 20185

CASTER YOKE ASSEMBLY

$

$

Not available

30

Simplicity 10517

BALL BEARING

$

$

Not available

31

Simplicity LP-478

REEL BEARING WASHER

$

$

Not available

32

Simplicity 10370

REEL ASSEMBLY w/BEARINGS

$

$

Not available

33

Simplicity LP-472

BRUSH BAR

$

$

Not available

34

Simplicity 10516

SIDE FRAME ASSEMBLY R.H.

$

$

Not available

35

Simplicity 109021

SHEAVE--REEL

$

$

Not available

36

Simplicity 2158573SM

31" V BELT

$20.99

$

Usually ships in 2-12 days

0
