990017 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Main Drive Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton

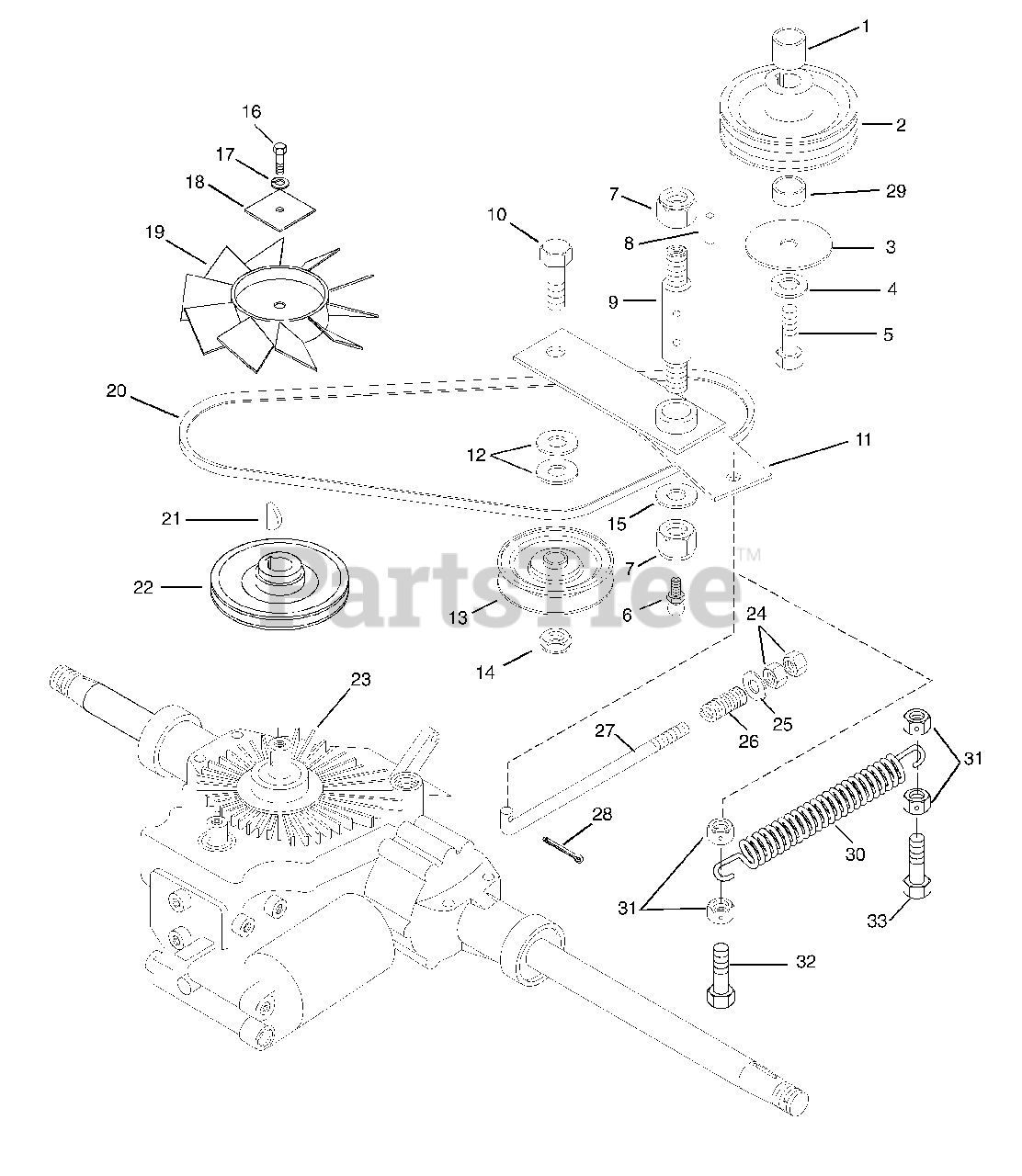

Main Drive Parts Diagram

  • Title

1

Gravely 051207

BUSH.,S1.13X1.38X1.25 ST
(Superseded to 08984200)

Note: (015)

$

$

Not available

Gravely 09097700

SPACER, ENGINE SHEAVE

Note: (017)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 09078300

SHEAVE, ENGINE

$

$

Not available

3

Gravely 06426400

WSHR-SPECIAL .469X2.000X.250
(Superseded to 06443600)

$8.49

$

In Stock, Qty 20+

0

4

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$3.49

$

In Stock, Qty 19

0

5

Gravely 05958800

BLT-HEX .44-20X1.5 YWZC
(Superseded to 05902004)

$6.99

$

In Stock, Qty 9

0

6

Gravely 411010

FTG,LUBE 1/8
(Superseded to 07012500)

$5.49

$

In Stock, Qty 11

0

7

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$3.49

$

In Stock, only 2 left!

0

8

Gravely 018345

KEY-SQ .248X1.25X.248
(Superseded to 06606900)

$3.49

$

In Stock, only 1 left!

0

9

Gravely 051886

PIN,PIVOT
(Superseded to 09008100)

$103.99

$

Usually ships in 4-12 days

0

10

Gravely 05967000

BLT-HEX .38-16X.50 GR5 YWZC

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 049329

WLDMT,IDLER ARM
(Superseded to 08988400)

$

$

Not available

12

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 044518

PLY-V 4.00X.84
(Superseded to 07318000)

$48.99

$

Usually ships in 4-12 days

0

14

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$5.49

$

In Stock, Qty 16

0

15

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.99

$

In Stock, only 2 left!

0

17

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 046284

WSHR-FL-STL .265X1.75SQX.119
(Superseded to 06425800)

$

$

Not available

19

Gravely 044380

FAN
(Superseded to 09024700)

$

$

Not available

20

Gravely 034944

V-BELT, HA-RAW EDGE
(Superseded to 07220000)

$30.99

$

In Stock, only 1 left!

0

21

Gravely 431787

KEY-WDRF .19X.63 HRD #61
(Superseded to 06609300)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 049738

PULLEY,DRIVE
(Superseded to 08992100)

$

$

Not available

23

Gravely 09036700

TRANSAXLE, EATON #851-109

$

$

Not available

24

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

Note: Model 990015 Serial Numbers 000676-000999

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: Model 990015 Serial Numbers 000676-000999

$2.49

$

In Stock, Qty 20+

0

26

Gravely 021506

SG-COMP .072X.561X2.50
(Superseded to 08329600)

Note: Model 990015 Serial Numbers 000676-000999

$23.99

$

Usually ships in 4-12 days

0

27

Gravely 09037500

ROD, IDLER

Note: Model 990015 Serial Numbers 000676-000999

$275.99

$

Usually ships in 4-12 days

0

28

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

Note: Model 990015 Serial Numbers 000676-000999

$1.49

$

In Stock, Qty 20+

0

29

Gravely 03529400

SPACER 1.137X1.50X.656

$

$

Not available

30

Gravely 08334100

SG-TENS .120 X .845 X 6.50
(Superseded to 08300728)

Note: Model 990015 Serial Numbers 001000 and up & model 990017 Serial Numbers 000101 and up

$29.99

$

In Stock, Qty 20+

0

31

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: Model 990015 Serial Numbers 001000 and up & model 990017 Serial Numbers 000101 and up

$1.99

$

In Stock, Qty 20+

0

32

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

Note: Model 990015 Serial Numbers 001000 and up & model 990017 Serial Numbers 000101 and up

$2.49

$

In Stock, Qty 13

0

33

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

Note: Model 990015 Serial Numbers 001000 and up & model 990017 Serial Numbers 000101 and up

$3.99

$

In Stock, Qty 20+

0
