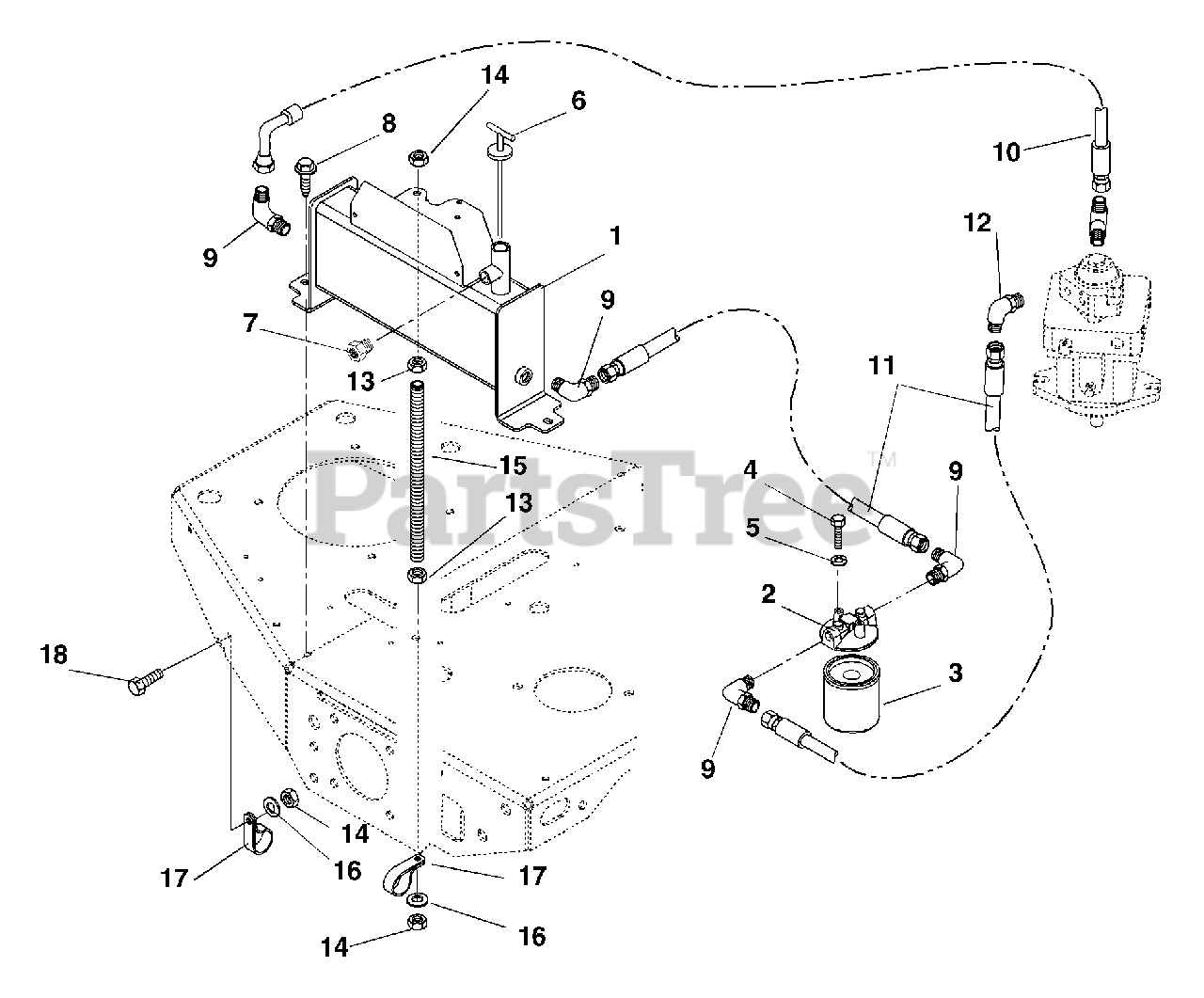

990018 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000999) Pump To Filter To Tank Circuit Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

Pump To Filter To Tank Circuit Parts Diagram

  • Title

1

Gravely 09098753

Weldment, Hydraulic Tank
(Superseded to 59003400)

$

$

Not available

2

Gravely 09072100

Head, Filter

$62.99

$

Usually ships in 4-12 days

0

3

Gravely 09246900

Filter, Oil

$28.99

$

In Stock, Qty 15

0

4

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

5

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

6

Gravely 00566400

Dipstick, Hydraulic Tank

$131.99

$

Usually ships in 4-12 days

0

7

Gravely 07050600

Plug, Breather .38"

$

$

Not available

8

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 07063600

Fitting, Hydraulic

$35.99

$

Usually ships in 4-12 days

0

10

Gravely 04911400

Hose, Hydraulic

$

$

Not available

11

Gravely 04911500

Hose, Hydraulic

$81.99

$

In Stock, only 1 left!

0

12

Gravely 07061600

Fitting, Hydraulic Elbow

$15.99

$

Usually ships in 4-12 days

0

13

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 045577

Rod, Extension
(Superseded to 08600200)

$

$

Not available

16

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 045279

Clamp, Nylon
(Superseded to 06939900)

$

$

Not available

18

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0
