990019 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Control Panel, Hydraulic Oil Cooler And Valve Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton

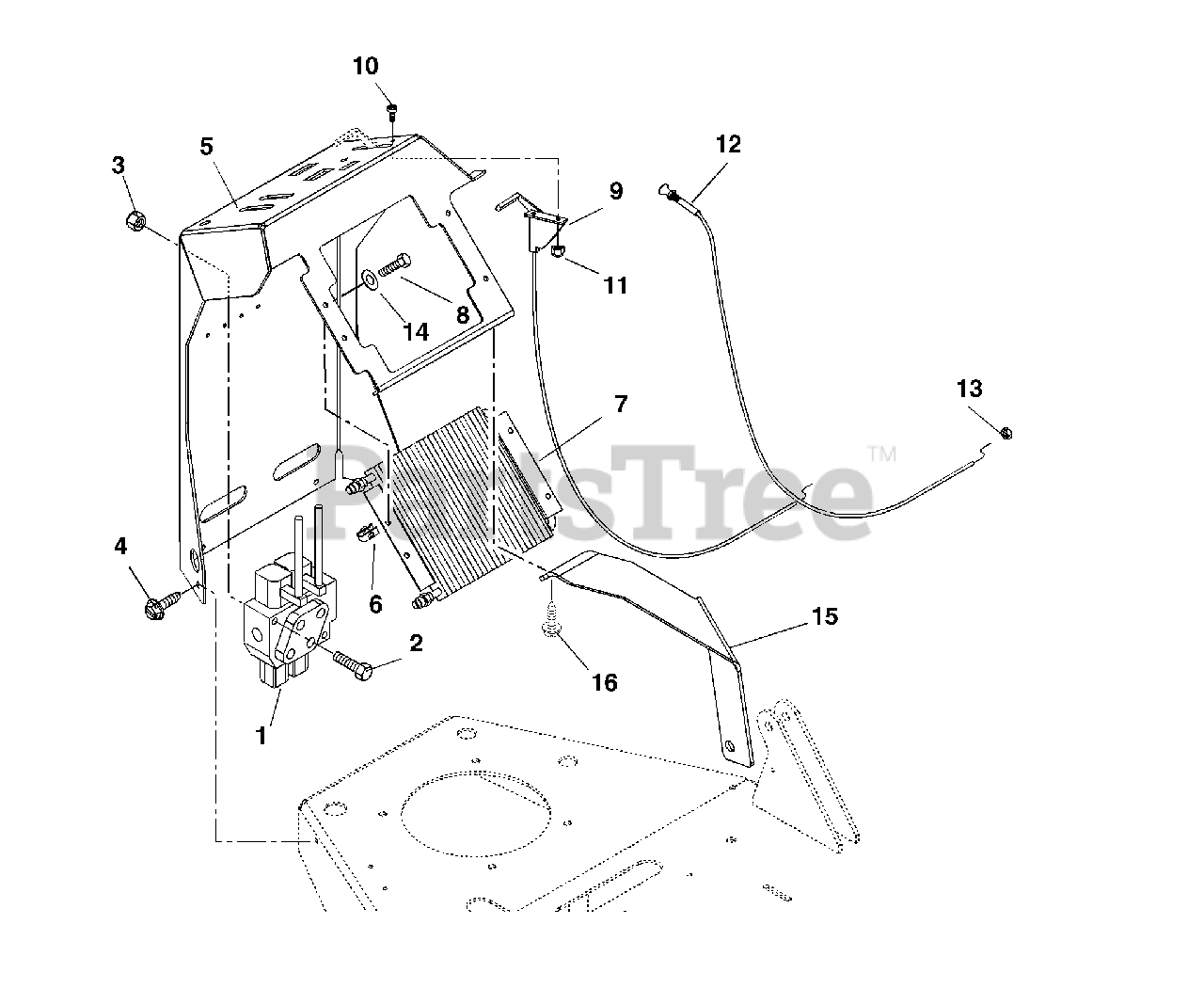

Control Panel, Hydraulic Oil Cooler And Valve Parts Diagram

  • Title

1

Gravely 09098800

Valve, 2 Spool

$

$

Not available

2

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 14

0

4

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 04909353

Panel, Control
(Superseded to 03289153)

$369.99

$

Usually ships in 4-12 days

0

6

Gravely 032369

Nut-Retainer .25-20 x .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 053101

Cooler, Oil
(Superseded to 08856200)

$

$

Not available

8

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 16

0

9

Gravely 06944600

Cable, Throttle

$

$

Not available

10

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06946900

Cable, Choke

$62.99

$

Usually ships in 4-12 days

0

13

Gravely 06534700

Nut-Jam .38-24
(Superseded to 06500739)

$2.49

$

In Stock, only 4 left!

0

14

Gravely 06437300

Washer-Flat-Steel .28 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 04914153

Brace, Instrument Panel-Left Hand

$

$

Not available

16

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
