990019 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton

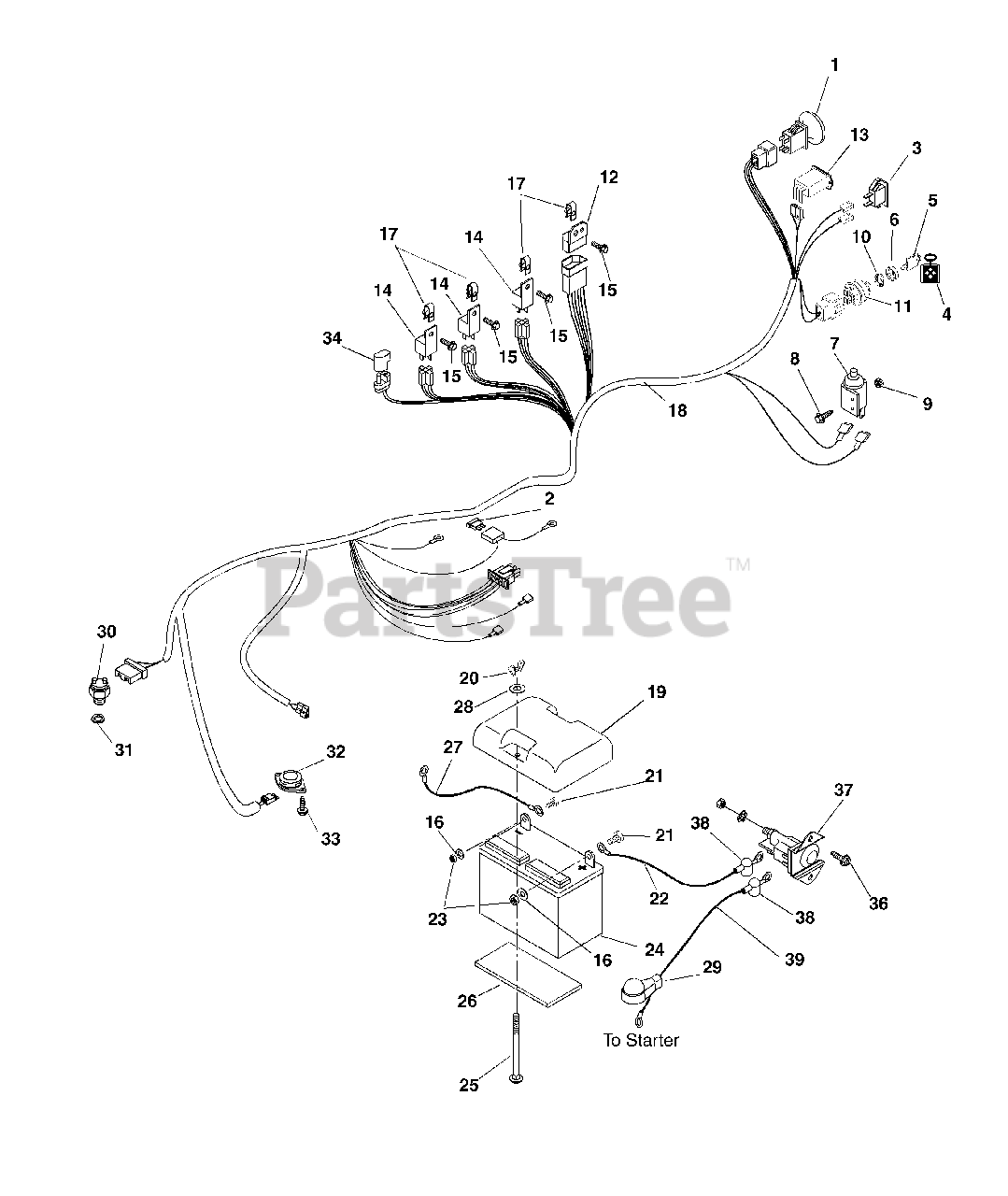

Electrical System Parts Diagram

  • Title

1

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

2

Gravely 00524600

FUSE, 30 AMP.

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$7.99

$

In Stock, Qty 9

0

4

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

5

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

6

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

7

Gravely 09251900

SWITCH-SINGLE POLE N.O.W/COVER

Note: (N.O.) with Cover

$23.99

$

In Stock, only 1 left!

0

8

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 019667

WSHR-LK-INT .563X.040 YWZC
(Superseded to 06310900)

$2.49

$

In Stock, only 1 left!

0

11

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 15

0

12

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$73.99

$

In Stock, only 4 left!

0

13

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 16

0

14

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

15

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

16

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 07027700

NUT-RTNR 10-24

$

$

Not available

18

Gravely 04912700

WIRING HARNESS
(Superseded to 03287400)

$263.99

$

Usually ships in 4-12 days

0

19

Gravely 04912900

COVER, BATTERY

$11.99

$

In Stock, only 2 left!

0

20

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

21

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

22

Gravely 047649

CABLE, STARTER .31X23.00X.31
(Superseded to 03492500)

$25.99

$

Usually ships in 4-12 days

0

23

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

24

Gravely 03621100

BATTERY W/ TUBE

$

$

Not available

25

Gravely 06220400

BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$5.49

$

In Stock, Qty 20+

0

26

Gravely 050417

PAD,BATTERY
(Superseded to 08803400)

$7.49

$

Usually ships in 4-12 days

0

27

Gravely 09222700

CBL, NEGATIVE BATT 35.0"LG
(Superseded to 03288200)

$26.99

$

Usually ships in 4-12 days

0

28

Gravely 050365

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 039619

INSULATOR
(Superseded to 07505700)

$10.99

$

In Stock, only 2 left!

0

30

Gravely 034640

SWITCH, NEUTRAL START N.C.
(Superseded to 08803700)

Note: (N.C.)

$35.99

$

Usually ships in 4-12 days

0

31

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 045036

SEAT SWITCH
(Superseded to 03490500)

$16.99

$

In Stock, only 1 left!

0

33

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

34

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

$29.99

$

In Stock, only 3 left!

0

35

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (Model 019)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 03679000

SOLENOID
(Superseded to 59223400)

Note: (Model 019)

$63.99

$

In Stock, Qty 20+

0

38

Gravely 07533200

BOOT, EYELET TERMINAL

Note: (Model 018)

$3.99

$

In Stock, Qty 18

0

Gravely 07533200

BOOT, EYELET TERMINAL

Note: (Model 019)

$3.99

$

In Stock, Qty 18

0

39

Gravely 042696

STARTER CABLE 6.75"
(Superseded to 00145900)

Note: (Model 019)

$

$

Not available
