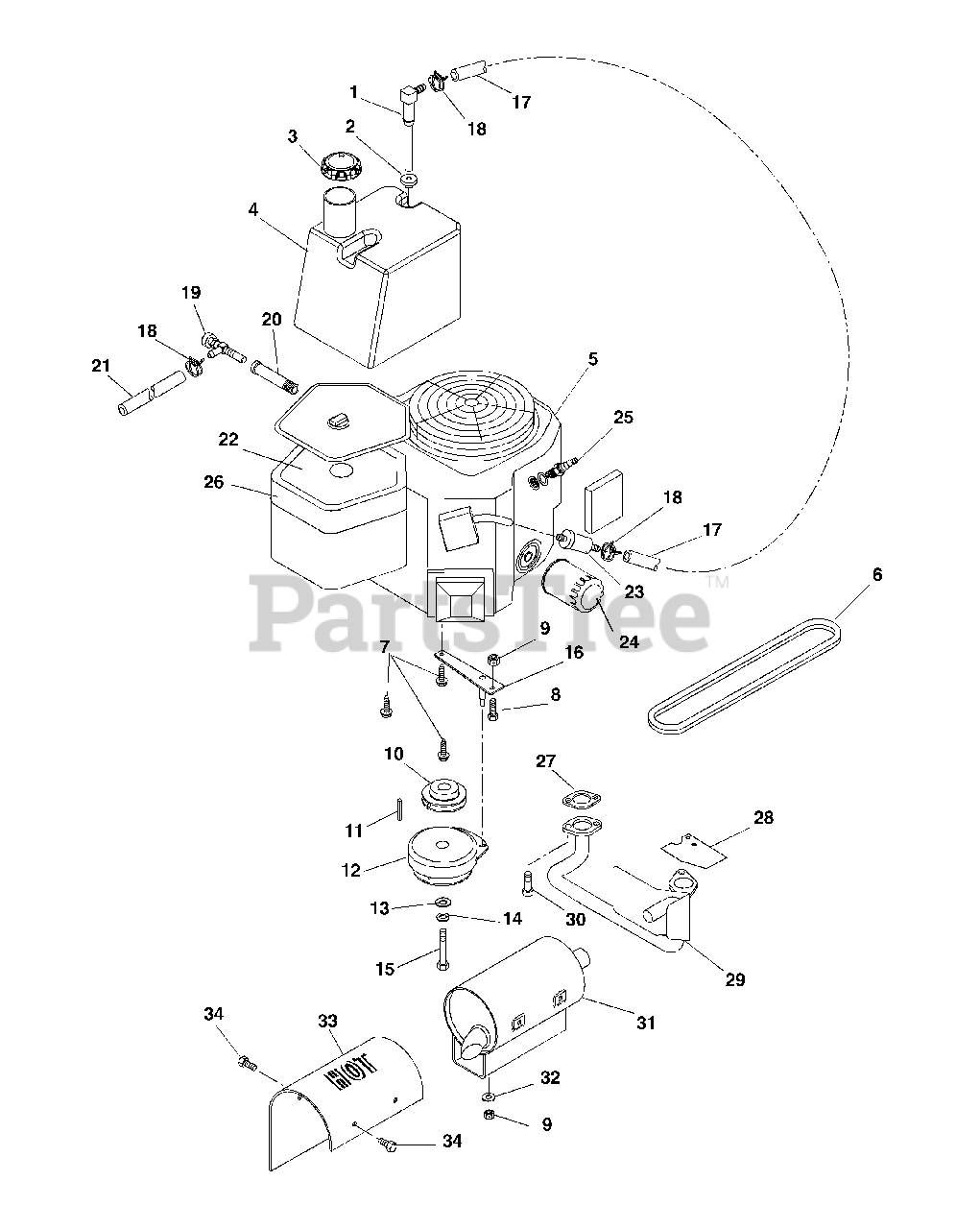

990019 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Engine, Clutch, Fuel And Exhaust Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton

Engine, Clutch, Fuel And Exhaust Parts Diagram

  • Title

1

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

2

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 09239500

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 20+

0

4

Gravely 09098400

TANK, FUEL

$

$

Not available

5

Gravely 08262600

ENGINE, 25HP KOHLER 6-PIN

Note: (Model 018)

$

$

Not available

Gravely 08262900

ENGINE, 21HP VANGUARD - 6 PIN

Note: (Model 019)

$

$

Not available

6

Gravely 052974

V-BELT, HA-RAW EDGE
(Superseded to 07224300)

$43.99

$

In Stock, only 2 left!

0

7

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

9

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07325300

PLY- 4.50X1.12

$84.99

$

In Stock, only 2 left!

0

11

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 13

0

12

Gravely 09232700

ELECTRIC CLUTCH
(Superseded to 00389900)

$504.99

$

In Stock, only 1 left!

0

13

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

14

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 14

0

16

Gravely 09099600

WMT, CLUTCH STOP

$104.99

$

Usually ships in 4-12 days

0

17

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (Model 018)

$1.49

$

In Stock, Qty 20+

0

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (Model 019)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

19

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

20

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 21416800

ELEMENT,AIR CLEANER -KOH CV20
(Superseded to 08563700)

Note: (Model 018)

$29.99

$

In Stock, Qty 18

0

Gravely 21530000

FILTER, AIR 20HP B&S VANGUARD

Note: (Model 019)

$24.99

$

Usually ships in 4-12 days

0

23

Gravely 21410800

FILTER, FUEL - KOH CV20
(Superseded to 21541500)

Note: (Model 018)

$13.99

$

In Stock, Qty 20+

0

Gravely 21534000

FILTER, FUEL

Note: (Model 019)

$6.49

$

In Stock, Qty 20+

0

24

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: (Model 018)

$21.99

$

Usually ships in 4-12 days

0

Gravely 21530700

FILTER, OIL 20HP B&S VANGUARD
(Superseded to 21556900)

Note: (Model 019)

$19.99

$

In Stock, Qty 20+

0

25

Gravely 21525900

SPARK PLUG
(Superseded to 21541700)

Note: (Model 018)

$7.49

$

In Stock, Qty 20+

0

Gravely 21531100

PLUG, SPARK 20HP B&S VANGUARD

Note: (Model 019)

$6.49

$

In Stock, Qty 20+

0

26

Gravely 21416700

ELEMENT, PRECLEANER - KOH CV20
(Superseded to 08563900)

Note: (Model 018)

$14.99

$

In Stock, only 1 left!

0

27

Gravely 044390

GASKET,EXHAUST
(Superseded to 08824700)

Note: (Model 018)

$23.99

$

In Stock, only 4 left!

0

28

Gravely 09066500

HEAT DEFLECTOR

Note: (Model 018)

$

$

Not available

29

Gravely 09065500

MANIFOLD, KOHLER CV18-25
(Superseded to 07067900)

Note: (Model 018)

$

$

Not available

Gravely 04907000

MANIFOLD

Note: (Model 019)

$

$

Not available

30

Gravely 051666

SCR-SKH M8 X 1.25X20
(Superseded to 05931800)

$2.99

$

Usually ships in 4-12 days

0

31

Gravely 09065600

MUFFLER, PM-320

Note: (Includes 09066300 Heat Shield)

$

$

Not available

32

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 2 left!

0

33

Gravely 09066300

HEAT SHIELD

Note: (Included with 09065600 Muffler)

$

$

Not available

34

Gravely 05971300

BLT, HEX M5-.8X8MM YWZC

$

$

Not available
