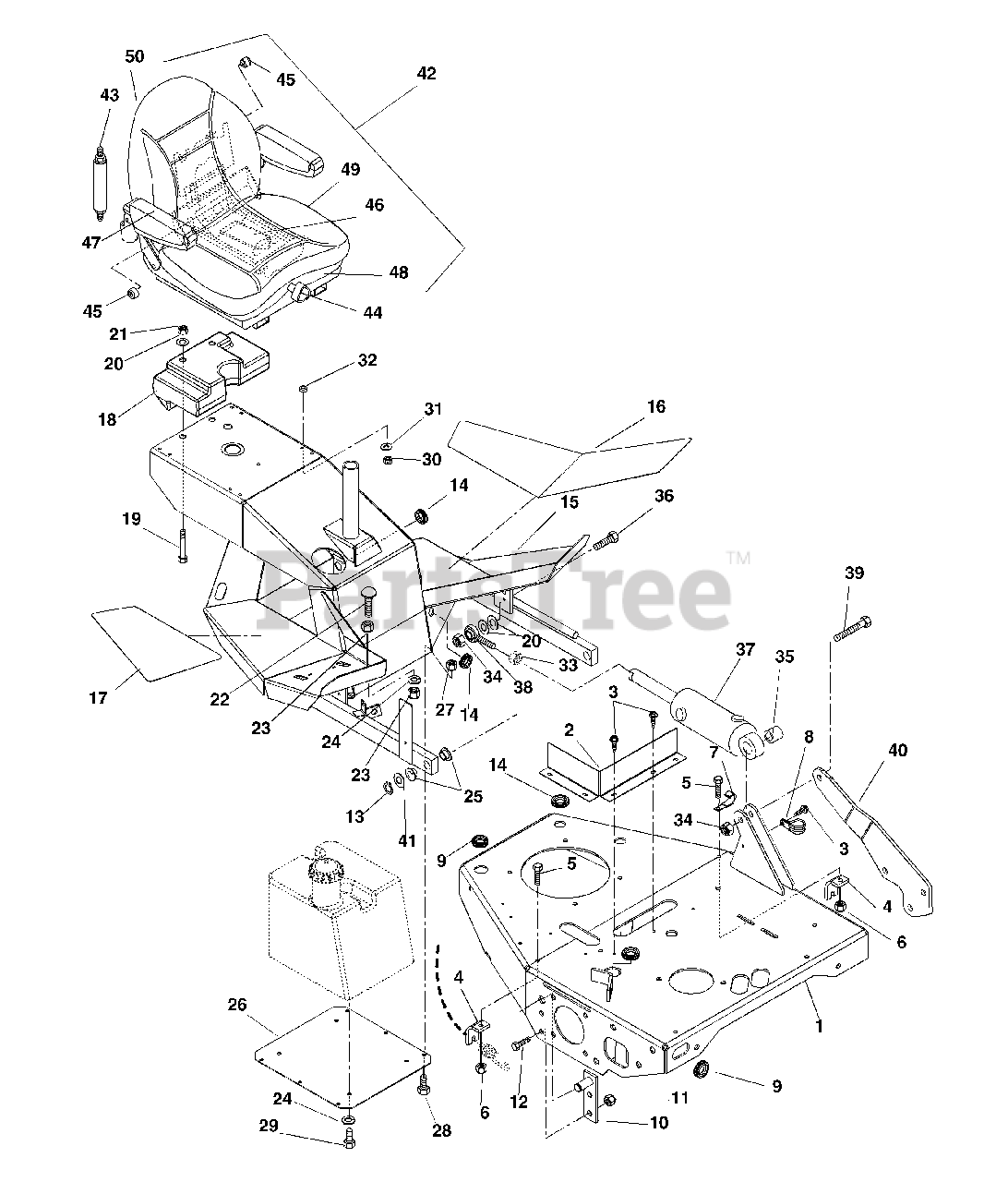

990019 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Frame, Sulky Frame And Seat Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton

Frame, Sulky Frame And Seat Parts Diagram

  • Title

1

Gravely 04908953

WLDMT, FRAME
(Superseded to 03295453)

$791.99

$

Usually ships in 4-12 days

0

2

Gravely 08897500

HEAT SHIELD

$

$

Not available

3

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 045383

BRKT,CABLE
(Superseded to 08968400)

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

7

Gravely 044715

J-CLAMP
(Superseded to 06916000)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 050395

CLAMP, COUSHIONED STEEL REV
(Superseded to 06917900)

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 052579

GROMMET 1.25ID X 1.5OD
(Superseded to 07536800)

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 04911800

WMT, PIVOT

$80.99

$

Usually ships in 4-12 days

0

11

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

13

Gravely 026300

RG-RTNG-EXT .689X.078
(Superseded to 05714600)

$2.99

$

In Stock, only 1 left!

0

14

Gravely 045290

GRMT .75X1.06X1.38
(Superseded to 07530600)

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 09099953

WLDMT, SULKY

$

$

Not available

16

Gravely 04909900

PAD, FLOORBOARD, LH

$26.99

$

Usually ships in 4-12 days

0

17

Gravely 04910000

PAD, FLOORBOARD RH

$

$

Not available

18

Gravely 04912251

WEIGHT, REAR

$

$

Not available

19

Gravely 05961900

BLT-HEX .50-13X4.00 GR5 YWZC
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

23

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

24

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

26

Gravely 04909453

PLATE, BOTTOM

$46.99

$

Usually ships in 4-12 days

0

27

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

28

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

31

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 039145

BSHG-SLV .377X.624X.235
(Superseded to 05508900)

$9.99

$

In Stock, only 2 left!

0

33

Gravely 06539500

NUT-JAM .50-20 GR2 YWZC

$2.99

$

Usually ships in 4-12 days

0

34

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

35

Gravely 09215200

BUSHING, .516X1.000X1.050 LG

$36.99

$

Usually ships in 4-12 days

0

36

Gravely 05961000

BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.99

$

In Stock, only 2 left!

0

37

Gravely 04909800

CYLINDER, PLATFORM LIFT

$647.99

$

Usually ships in 4-12 days

0

38

Gravely 044950

ROD END, 1/2 RH
(Superseded to 08959600)

$40.99

$

Usually ships in 4-12 days

0

39

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

40

Gravely 04913153

SUPPORT, CYLINDER BRACE

$44.99

$

Usually ships in 4-12 days

0

41

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

42

Gravely 09230000

SEAT, MILSCO SUSPENSION
(Superseded to 79207100)

$

$

Not available

43

Gravely 59201300

KIT-DAMPER W/HDWR MILSCO SEAT

$212.99

$

Usually ships in 4-12 days

0

44

Gravely 59201600

KIT-KNOB MILSCO SEAT

Note: (1 per bag)

$

$

Not available

45

Gravely 59201700

KIT-ROLLER MILSCO SEAT

Note: (4 per bag)

$

$

Not available

46

Gravely 59201800

KIT-SPRING/CABLE MILSCO SEAT

Note: (1 per bag)

$

$

Not available

47

Gravely 59201900

KIT-ARMPAD MILSCO SEAT

Note: (1 per bag)

$182.99

$

Usually ships in 4-12 days

0

48

Gravely 59202000

KIT-ADJUSTER MILSCO SEAT

Note: (1 per carton)

$268.99

$

Usually ships in 4-12 days

0

49

Gravely 59202100

KIT-CUSHION MILSCO SEAT
(Superseded to 59203200)

Note: (1 per carton)

$

$

Not available

50

Gravely 59203200

KIT, MILSCO SEAT BASE/BACK-BLK

$

$

Not available
