990019 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Parking Brake Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton

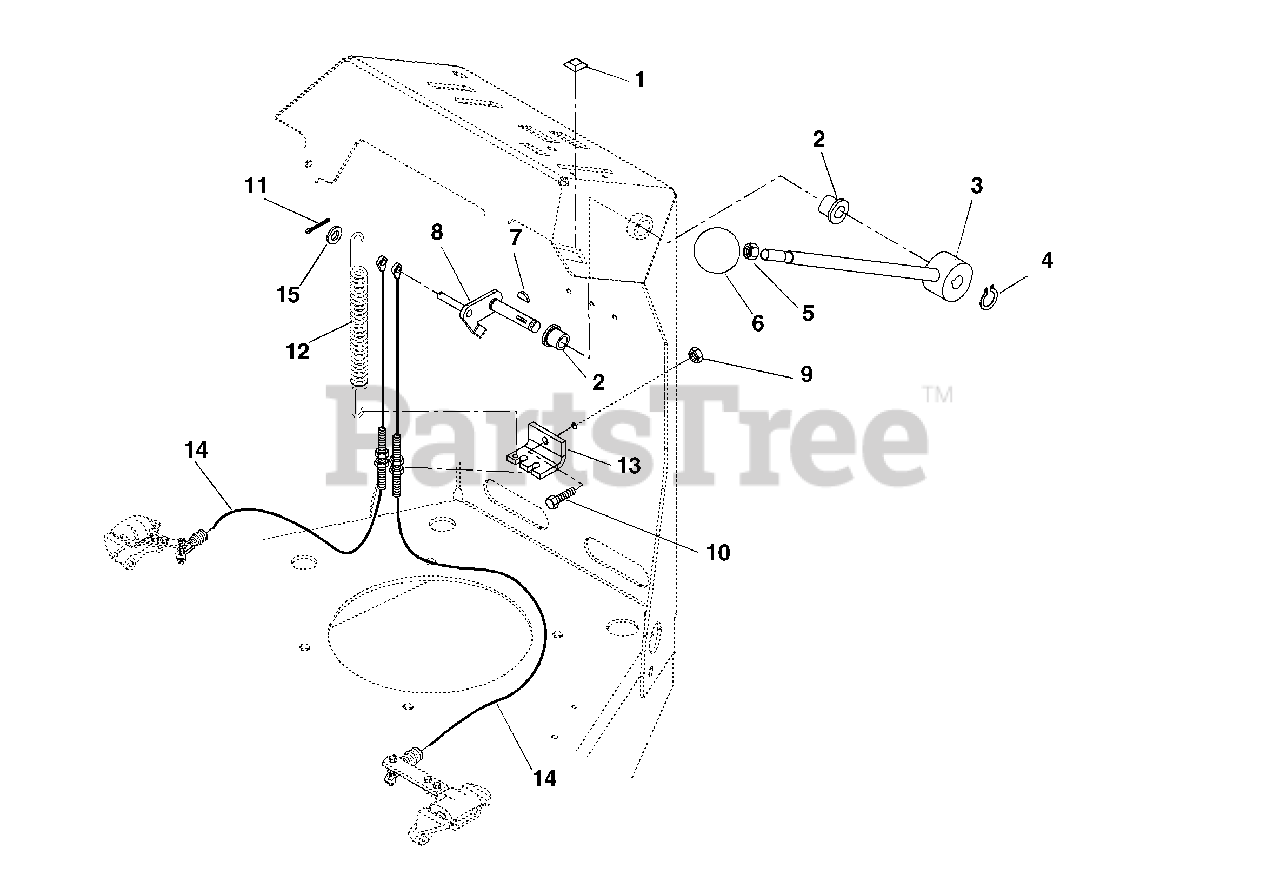

Parking Brake Parts Diagram

  • Title

1

Gravely 040176

STOP
(Superseded to 07525100)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 05503100

BSHG-FLG.500X.750X.750X1.000BR

$10.99

$

In Stock, only 4 left!

0

3

Gravely 04912600

WMT, PARKING BRAKE LEVER

$125.99

$

Usually ships in 4-12 days

0

4

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 039360

KNOB-STEERING LOCK
(Superseded to 07505200)

$22.99

$

In Stock, only 3 left!

0

7

Gravely 124545

KEY-WDRF .13X.63 HRD#5
(Superseded to 06608400)

$2.99

$

In Stock, only 1 left!

0

8

Gravely 04912500

WMT, SHAFT BRAKE ACTIVATION

$96.99

$

Usually ships in 4-12 days

0

9

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

10

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

12

Gravely 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$15.99

$

In Stock, Qty 9

0

13

Gravely 04911200

BRACKET, CABLE

$

$

Not available

14

Gravely 06947000

CABLE, PARKING BRAKE

$79.99

$

In Stock, only 3 left!

0

15

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
