990021 (PM 320) - Gravely Pro-Master Zero-Turn Mower, 27hp Kohler (SN: 000101 - 001999) Control Panel, Hydraulic Oil Cooler And Valve Parts Diagram

Pro-Master Zero-Turn Mower, 27hp Kohler

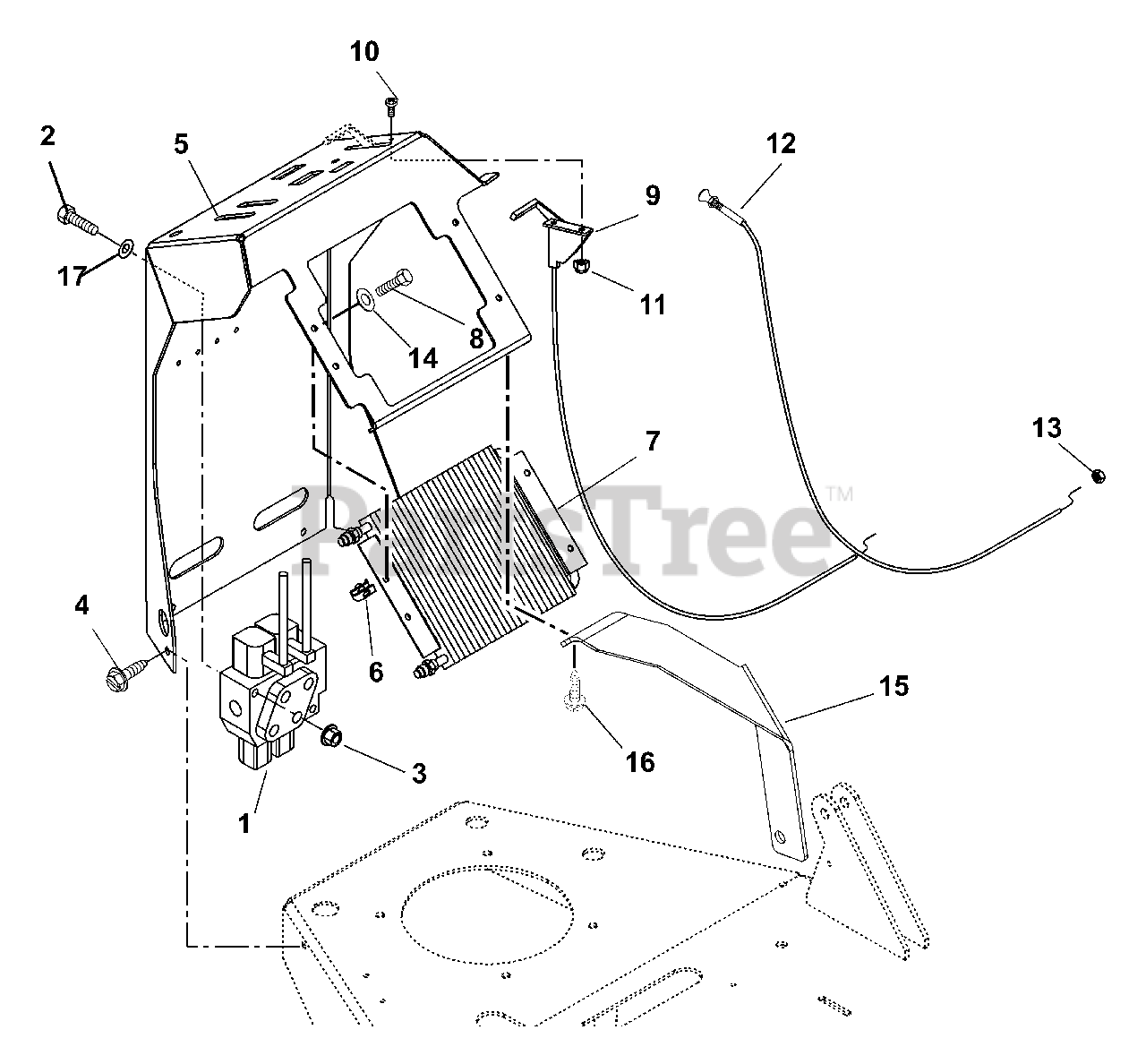

Control Panel, Hydraulic Oil Cooler And Valve Parts Diagram

  • Title

1

Gravely 09098800

VALVE, 2 SPOOL

$

$

Not available

2

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.99

$

In Stock, Qty 9

0

3

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 04909353

PANEL, CONTROL
(Superseded to 03289153)

$386.99

$

Usually ships in 4-12 days

0

6

Gravely 032369

NUT-RTNR .25-20X.56
(Superseded to 07009000)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 053101

COOLER,OIL
(Superseded to 08856200)

$

$

Not available

8

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06900004

CABLE, CONTROL
(Superseded to 06900024)

$56.99

$

Usually ships in 4-12 days

0

10

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06946900

CABLE, CHOKE

Note: (021)

$64.99

$

Usually ships in 4-12 days

0

Gravely 06942300

CABLE, CHOKE

Note: (022)

$43.99

$

Usually ships in 4-12 days

0

13

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.99

$

In Stock, only 3 left!

0

14

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 04914153

BRACE, INSTRUMENT PANEL -LH

$

$

Not available

16

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0
