990021 (PM 320) - Gravely Pro-Master Zero-Turn Mower, 27hp Kohler (SN: 000101 - 001999) Front Wheels, Motors And Calipers Parts Diagram

Pro-Master Zero-Turn Mower, 27hp Kohler

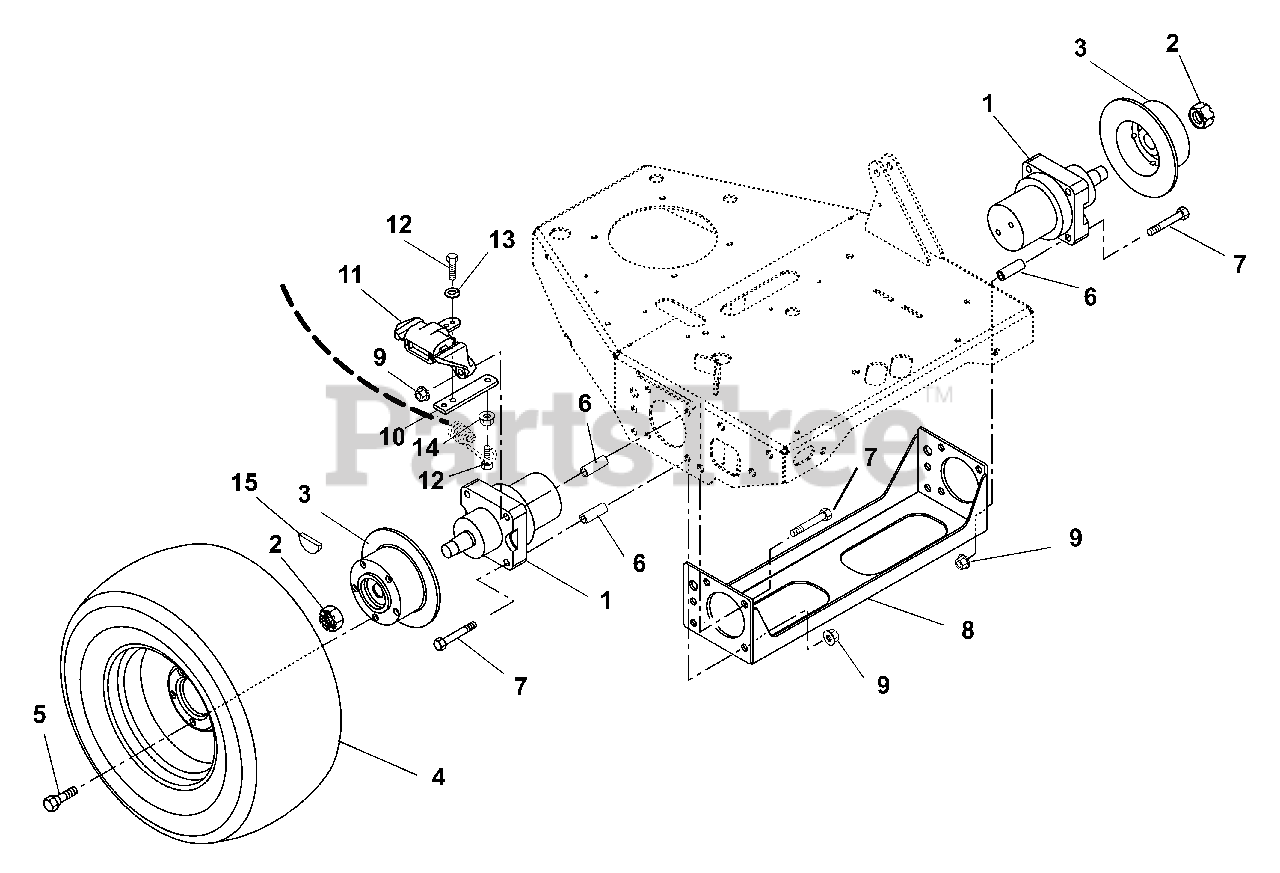

Front Wheels, Motors And Calipers Parts Diagram

  • Title

1

Gravely 09232300

Motor, Hydraulic Wheel

Note: (Includes 2)

$963.99

$

Usually ships in 4-12 days

0

2

Gravely 06541900

Nut, Locking-Jam-Patch 1.00-20

Note: (Included with 1)

$33.99

$

Usually ships in 4-12 days

0

3

Gravely 09247100

Hub and Disc

$303.99

$

Usually ships in 4-12 days

0

4

Gravely 07157500

Tire/Wheel Assembly 24 x 12-12
(Superseded to 59210100)

$351.99

$

Usually ships in 4-12 days

0

4

Gravely 07158100

Tire, Turfmaster 24 x 12-12
(Superseded to 07101040)

$300.99

$

Usually ships in 4-12 days

0

5

Gravely 07067700

Bolt, Lug .50-20 x 1.38, Grade 8
(Superseded to 07000143)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 05531400

Bushing-Sleeve .513 x .748 x 2.129

$14.99

$

Usually ships in 4-12 days

0

7

Gravely 05975400

Bolt-Hex .50-13 x 5.00 Grade 8

$6.49

$

In Stock, only 2 left!

0

8

Gravely 04913051

Weldment, Wheel Support Bracket

$

$

Not available

9

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 04909200

Arm, Extension Parking Brake

$

$

Not available

11

Gravely 09243600

Caliper, Park Brake (Clockwise) Right Hand

Note: (Clockwise) Right Hand

$197.99

$

Usually ships in 4-12 days

0

11

Gravely 09243500

Caliper, Park Brake (Counterclockwise) Left Hand

Note: (Counterclockwise) Left Hand

$197.99

$

Usually ships in 4-12 days

0

12

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

13

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 14

0

14

Gravely 06530400

Nut-Spin-Locking-Flange .312-18
(Superseded to 06500815)

$1.99

$

In Stock, only 3 left!

0

15

Gravely 09200600

Pad, Disk Brake

$60.99

$

In Stock, only 4 left!

0
