990021 (PM 320) - Gravely Pro-Master Zero-Turn Mower, 27hp Kohler (SN: 000101 - 001999) Transmission, Direction Control And Idler Parts Diagram

Pro-Master Zero-Turn Mower, 27hp Kohler

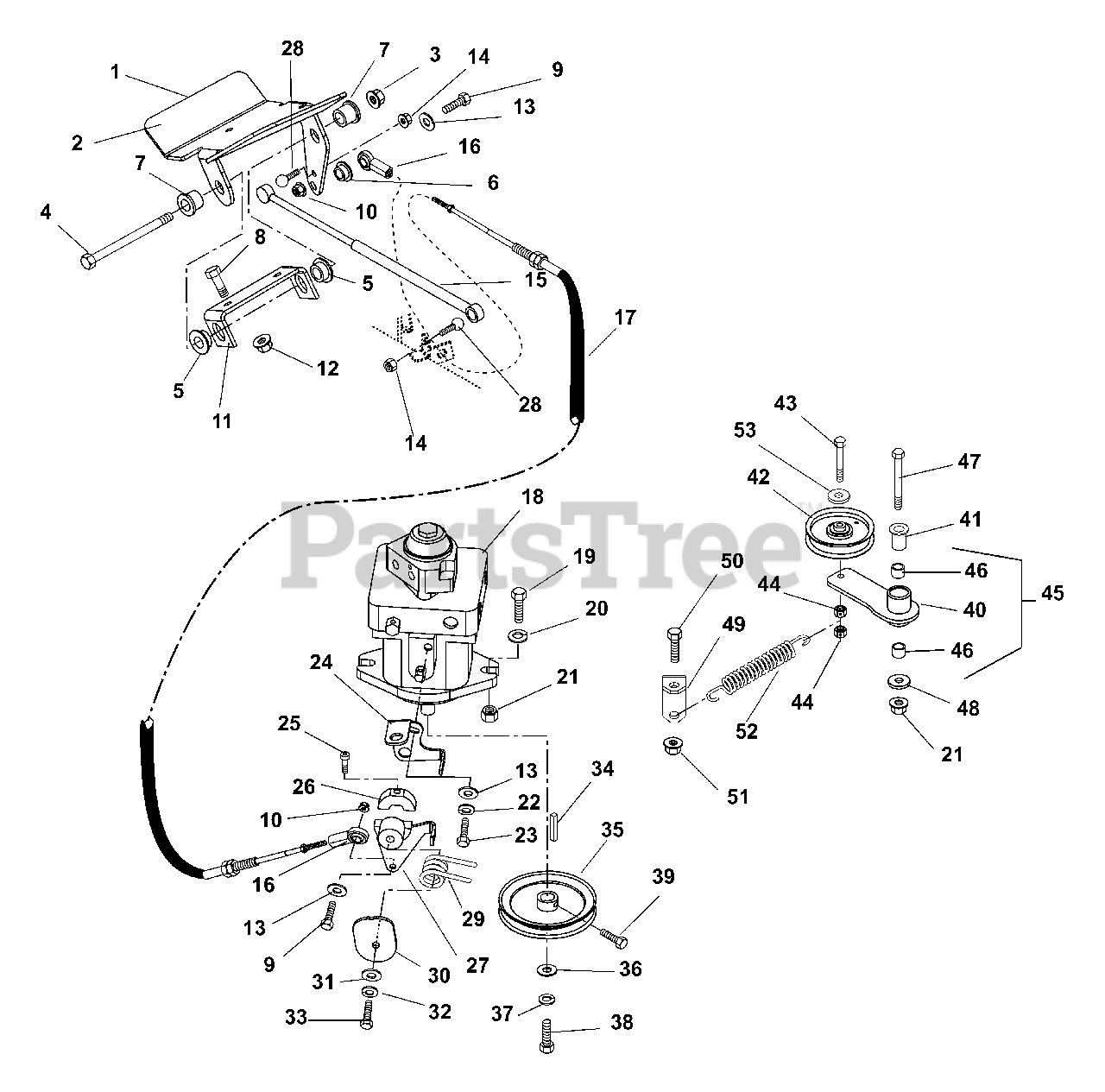

Transmission, Direction Control And Idler Parts Diagram

  • Title

1

Gravely 04909653

PEDAL, DIRECTION CONTROL

$

$

Not available

2

Gravely 046043

PAD,FOOT CLUTCH PEDAL
(Superseded to 08749700)

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

5

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

6

Gravely 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 2 left!

0

7

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

10

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 13

0

11

Gravely 04909553

BRKT, CONTROL PEDAL

$

$

Not available

12

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 09258900

DAMPENER, CONTROL

$76.99

$

In Stock, only 3 left!

0

16

Gravely 045808

ROD END, 1/4 RH - FEMALE
(Superseded to 08971800)

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 06947100

CABLE, FWD-REV CONTROL

$184.99

$

Usually ships in 4-12 days

0

18

Gravely 09099500

PUMP, BDP 21L-800
(Superseded to 59003500)

$1569.99

$

Usually ships in 4-12 days

0

19

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

20

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06306800

WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

In Stock, Qty 10

0

23

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

24

Gravely 04910400

ARM, NEUTRAL RETURN

$

$

Not available

25

Gravely 05977000

SCR-SKH M6X1.0X35MM

$

$

Not available

26

Gravely 04910600

HUB, PUMP NEUTRAL

$

$

Not available

27

Gravely 04910500

WMT, PUMP NEUTRAL

$

$

Not available

28

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 7

0

29

Gravely 08336800

SG-TORS .156X1.275X.77

$

$

Not available

30

Gravely 04910300

CAM, NEUTRAL SWITCH

$

$

Not available

31

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

34

Gravely 06611300

KEY, SQ 5 X 5 X 30MM PLAIN

$2.99

$

In Stock, Qty 6

0

35

Gravely 07326600

SHEAVE, PUMP 4.50 X .67

$74.99

$

In Stock, only 2 left!

0

36

Gravely 416904

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

37

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 7

0

38

Gravely 05969800

BLT-HEX M6 X 1.0X12 YWZC

$2.49

$

In Stock, Qty 10

0

39

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 1 left!

0

40

Gravely 00345600

WMT, IDLER PIVOT ARM

$52.99

$

In Stock, only 2 left!

0

41

Gravely 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$84.99

$

In Stock, Qty 9

0

42

Gravely 07327600

V-IDLER, 4.00X.38

$39.99

$

In Stock, Qty 20+

0

43

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

44

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 00349100

ASM, IDLER PIVOT ARM

Note: (Contains Items 40 and 46)

$65.99

$

In Stock, only 2 left!

0

46

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

47

Gravely 05961900

BLT-HEX .50-13X4.00 GR5 YWZC
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

48

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 9

0

49

Gravely 09231100

ANCHOR - SPRING - IDLER

$23.99

$

Usually ships in 4-12 days

0

50

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

51

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

52

Gravely 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

53

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
