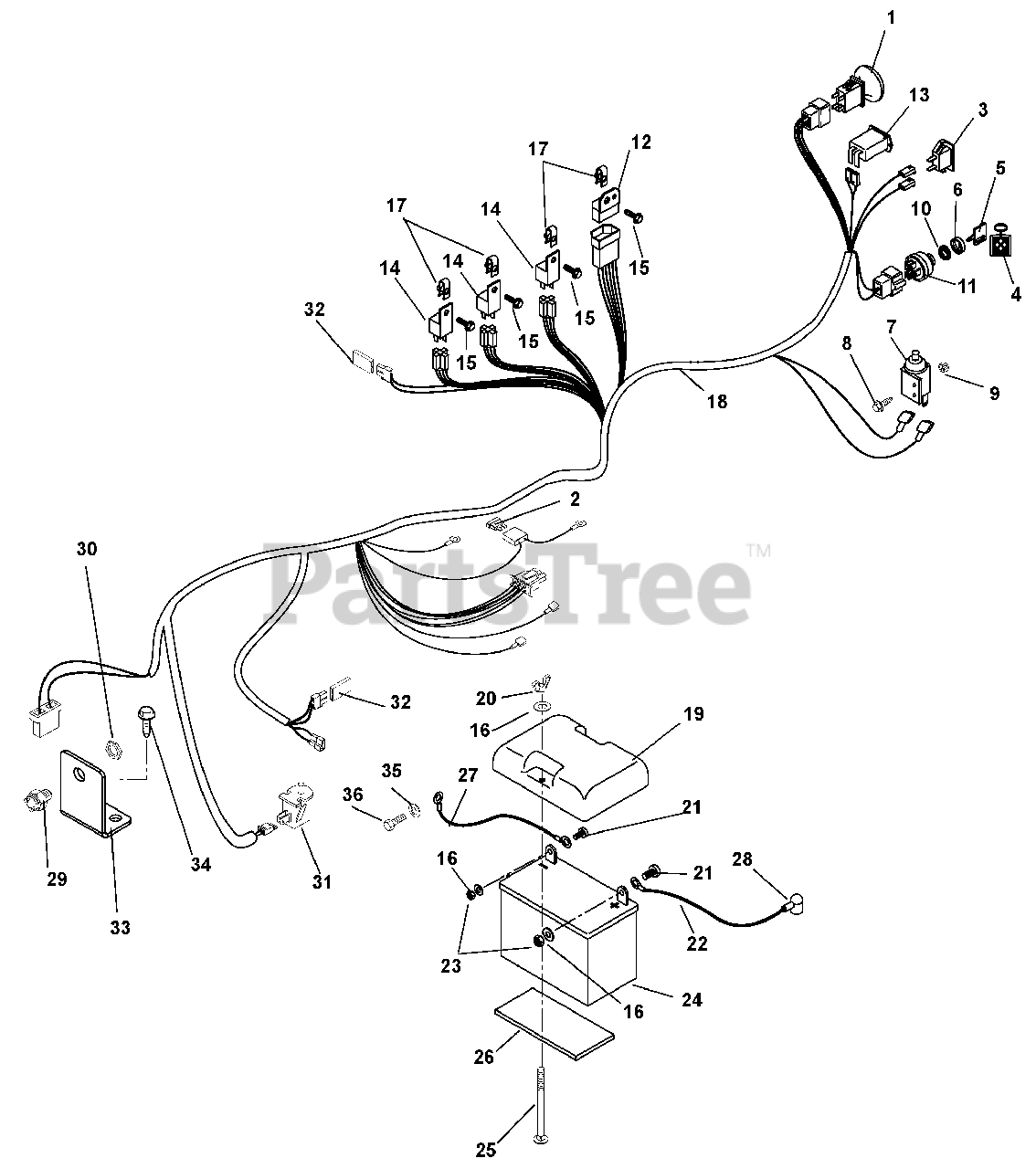

990021 (PM 320) - Gravely Pro-Master Zero-Turn Mower, 27hp Kohler (SN: 002000 & Above) Electrical System Parts Diagram

Pro-Master Zero-Turn Mower, 27hp Kohler

Electrical System Parts Diagram

  • Title

1

Gravely 01545600

Switch-Clutch with Retainer Ring

$23.99

$

In Stock, Qty 12

0

2

Gravely 00524600

Fuse, 30 Amp (Included with Harness)

Note: (Included with Harness)

$

$

Not available

3

Gravely 08841200

Light-Indicator
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

4

Gravely 03490000

Key Chain

$

$

Not available

5

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 12

0

Gravely 09284600

Key with Shield

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 07517700

Cap-Ignition Switch

$3.99

$

In Stock, Qty 7

0

7

Gravely 09251900

Switch-Single Pole (N.O.) with Cover

Note: (N.O.) with Cover

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

10

Gravely 06517400

Nut-Panel .562-24

$13.99

$

Usually ships in 4-12 days

0

11

Gravely 03602300

Key Switch

$26.99

$

In Stock, Qty 9

0

12

Gravely 09044200

Module, Time Delay

$71.99

$

In Stock, only 1 left!

0

13

Gravely 04935700

Hour Meter
(Superseded to 59208200)

$59.99

$

In Stock, only 2 left!

0

14

Gravely 00432100

Relay (Included with Harness)
(Superseded to 00432101)

Note: (Included with Harness)

$20.99

$

In Stock, Qty 16

0

15

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

17

Gravely 07027700

Retainer Nut 10-24

$

$

Not available

18

Gravely 04912700

Harness-Wiring
(Superseded to 03287400)

$230.99

$

Usually ships in 4-12 days

0

19

Gravely 04912900

Cover-Battery

$11.99

$

In Stock, only 1 left!

0

20

Gravely 06537500

Nut-Locking-Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 9

0

21

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

22

Gravely 03287200

Start Cable 22"

$17.99

$

In Stock, only 3 left!

0

23

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 01554800

Battery

$

$

Not available

25

Gravely 06220400

Bolt-Round Head Square Neck .25-20 x 7.00 Grade 2
(Superseded to 06200229)

$4.49

$

In Stock, Qty 7

0

26

Gravely 08803400

Pad, Battery

$6.99

$

Usually ships in 4-12 days

0

27

Gravely 03288200

Cable, Negative Battery 35" Long

$22.99

$

Usually ships in 4-12 days

0

28

Gravely 00525800

Battery Terminal Boot, Red

$7.99

$

Usually ships in 4-12 days

0

29

Gravely 08803700

Switch, Neutral Start (N.C.)

Note: (N.C.)

$34.99

$

In Stock, only 3 left!

0

30

Gravely 07015100

Nut-Stamped .56-18

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 02754100

Switch, Seat (Included with Seat)

Note: (Included with Seat)

$9.49

$

In Stock, Qty 20+

0

32

Gravely 09293500

Diode, Connector Shell (Included with Harness)
(Superseded to 09293501)

Note: (Included with Harness)

$11.99

$

In Stock, Qty 20+

0

33

Gravely 01920753

Bracket, Neutral Switch

$17.99

$

Usually ships in 4-12 days

0

34

Gravely 07412000

Screw, Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06308600

Washer, Locking .31 x .078 Regular (023)
(Superseded to 06300119)

Note: (023)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 05973300

Bolt, Hex M8-1.25 x 20 (023)
(Superseded to 05901628)

Note: (023)

$1.49

$

Usually ships in 4-12 days

0
